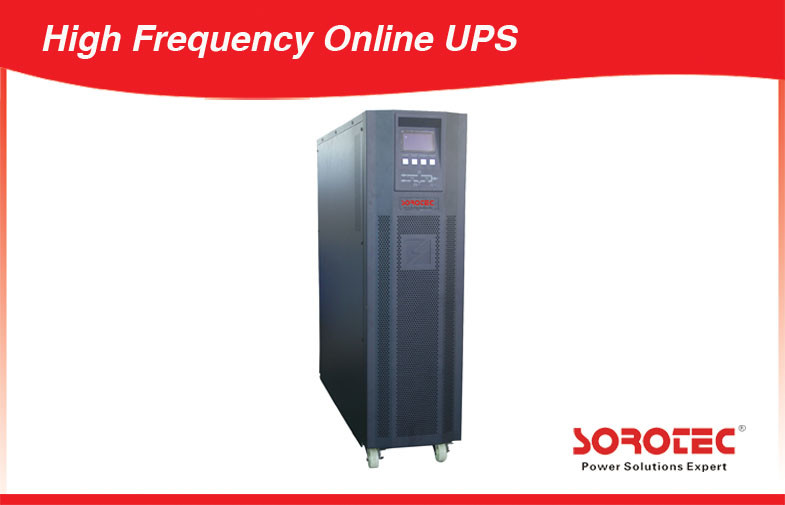

10KVA 9KW 3 Phase High Frequecy Online UPS Uninterruptible Power Supply with RS232
10KVA 9KW 3 Phase High Frequecy Online UPS Uninterruptible Power Supply with RS232
Contact Now

10KVA 9KW 3 Phase High Frequecy Online UPS Uninterruptible Power Supply with RS232

Minimum Order Quantity : 1pcs Price : 1-500 USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC /OEM
Certification: CE,ROHS,RSO9000 Model Number: HP9335C PLUS

Detail Information
Product Name: High Frequency Online UPS Phase: 3 Phase With Neutral
Capacity: 10KVA / 9KW Output Power Factor: 0.9
Model: Standard Output Voltage: 208/220/230/240VAC
Battery: 12V/9Ah 20pcs Dimension,D*W*H(mm): 832*250*894
Transfer Time: Line-Battery 0ms Operation Altitude: <1000m
Application: Telecom,Computer,Servers,E-business
Highlight:

pure sine wave ups

,

high frequency ups

Product Description

10KVA 9KW 3 Phase High Frequecy Online UPS Uninterruptible Power Supply with RS232





Quick Detailes:

SOROTEC HP9335C PLUS Series High Frequency Online UPS 10-30KVA (3Ph in / 3Ph out)

Capacity :10kva-30kva

Nominal Voltage:380/450/415VAC

Frequency Range: 50/60HZ

Output Power Factor: 0.9

Application: Personal Computer,Medical,Telecom,Local Area Networks,Labs,Servers,E-business .etc



Key Features:

  • Generator compatible
  • True double-conversion
  • Output power factor 0.9
  •  Accepts dual-mains inputs
  • Compact Design, Lower Noise
  • Maintenance bypass available
  • Optional N+X parallel redundancy
  • N+X Parallel Redundancy Optional
  • Emergency power off function (EPO)
  • 50Hz/60Hz frequency converter mode
  • ECO mode operation for energy saving
  • Wide input voltage range (110-300 VAC)
  • Active power factor correction in all phases
  • Full DSP control of high stability, reliability and safety.
  •  Humanistic LCD panel information.RS232 communication interface
  • 3-stage extendable charging design for optimized battery performance
  •  Optional isolation transformer offers full isolation and complete common mode noise rejection
  • Optimized battery management, intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery.




Reduce the investment cost saving valuable space:
HP9335C Plus Series UPS represents the best solution that is both cost effective and environmental friendly,It delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.





Technical Parameters



MODEL HP9335C Plus 10KVA
10K 10K-XL
CAPACITY 10KVA / 9KW
PHASE 3 Phase with Neutral
INPUT
Voltage Range Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback Low Line Loss Voltage + 10V
High Line Loss 300 VAC(Ph-N) ± 3 %
High Line Comeback High Line Loss Voltage - 10V
Phase Three phase with ground
Power Factor ≥ 0.99 at 100% Load
OUTPUT
Output voltage 208/220/230/240VAC(Ph-N)
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload AC mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
Battery mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio 3:1 max
Harmonic Distortion ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time Line←→Battery 0 ms
Inverte←→Bypass 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Line←→ECO <10 ms
EFFICIENCY
AC mode > 89% > 89% > 89% > 90%
Battery Mode > 86% > 88% > 87% > 89%
BATTERY
Standard Model Type





 		 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 20(18-20 adjustable) 2 x 20(18-20 adjustable) 2 x 20(18-20 adjustable) 3 x 20(18-20 adjustable)
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A ± 10% (max.) 2.0 A ± 10% (max.) 2.0 A ± 10% (max.) 4.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
Long-run Model Type Depending on applications
Numbers 18-20
Charging Current 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 12.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
PHYSICAL
Standard Model Dimension,DxWxH(mm) 832 X250X894 832 X250X1275
Long-run Model Dimension,DxWxH(mm) 609 X250X768 832 X250X828
ENVIRONMENT
Operation Temperature 0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity <95 % and non-condensing
Operation Altitude <1000m
Acoustic Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB Power management from SNMP manager and web browser

10KVA 9KW 3 Phase High Frequecy Online UPS Uninterruptible Power Supply with RS232 0
