Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 5000PCS/Month for Solar Power Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C Plus 1-2kVA |
|
Detail Information |
|||
| Product Name: | 12V/24V Modified Sine Wave Inverter | Inverter Capacity: | 1-2kVA |
|---|---|---|---|
| Voltage Range: | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | Output Voltage Regulation: | 230VAC±10% |
| Frequency Regulation: | 50/60Hz±0.1Hz | Utility To Battery Mode: | 15-20ms Typical(narrow Range); 40ms Max(wide Range) |
| Highlight: | solar power inverter for home,home power inverter |
||
Product Description

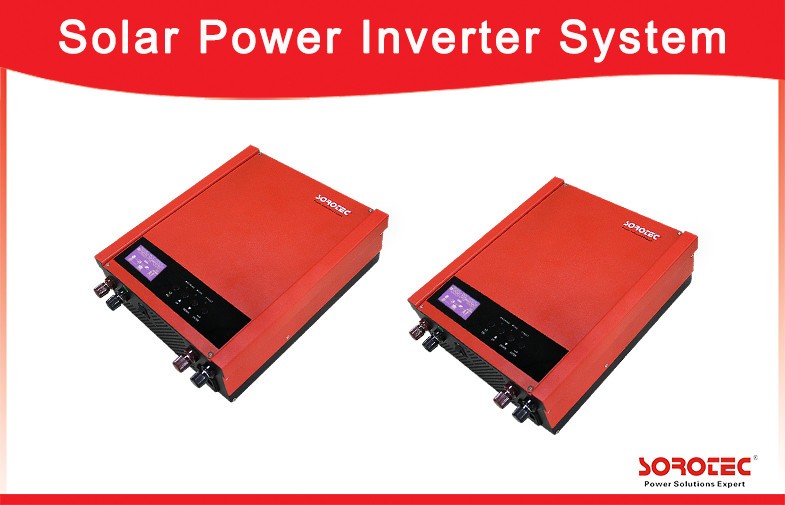

12V/24V Modified Sine Wave Inverter Used for Home Appliances and Personal Computers
Product Snapshot:
Key Features:
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.

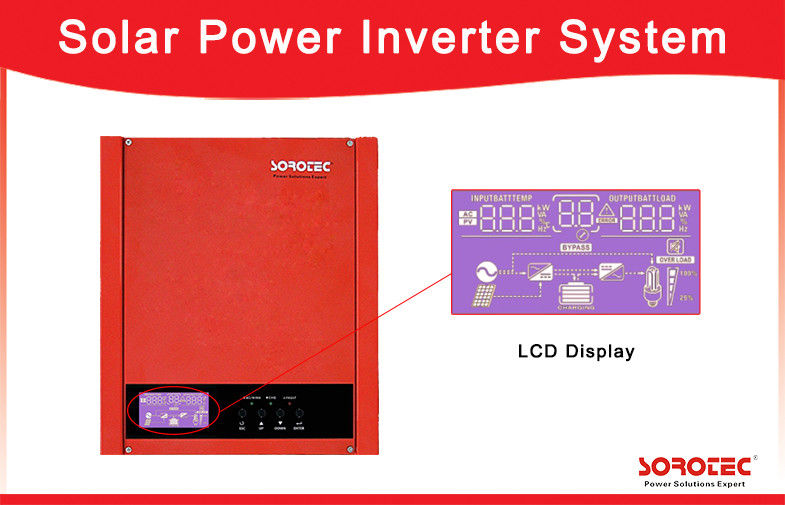

11.LCD display, audible and visual alarm.
Product Descriptions of Solar Power Inverter
| Model | SSP3111C Plus 1000-2000VA | |
| 1000-12 | 2000-24 | |
| Capacity | 1000VA/720W | 2000VA/1440W |
| Nominal Voltage | 220/230/240VAC | |
| Nominal Frequency | 50/60Hz | |
| Input | ||
| Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
| Frequency Range | 50/60Hz | |
| Output | ||
| Voltage Regulation | 230VAC±10% | |
| Frequency Regulation | 50/60Hz±0.1Hz | |
| Wave Form | Modified Sine wave | |
| Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
| Battery mode to Utility | 10ms max | |
| Battery mode efficiency | >80% | |
| Line mode efficiency | >95% (battery full charged) | |
| Battery | ||
| DC Voltage | 12V | 24V |
| Overcharge Protection | 16V | 32V |
| Charge Current | 15A/20A | 10A |
| LCD Display & LED Indicate | ||
| Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
| Line mode 2,charge current ≦3A Green solid lighting | ||
| Off-charge mode Green flashing as cycle: | ||
| Battery Mode | Yellow lighting | |
| Overload | Red flashing every 0.5 second | |
| Fault | Red lighting | |
| SOLAR CHARGE | ||
| Maximum PV Array Open Circuit Voltage | 55VDC | |
| PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
| Maximum Charging Current | 50A | |
| Maximum Efficiency | >96% | |
| Standby Power Consumption | <20W | |
| Environment | ||
| Temperature | 0°C~40°C | |
| Humidity | 5%-95% (<40°C, Non-condensing) | |
| Storage Temperature | -15°C~55°C | |
| Elevation | <1500m | |
| IP Proyection level | IP20 | |
| PHYSICAL | ||
| Dimension,D×W×H (mm) | 298.9×250×105 | |
| Net Weight (kgs) | 2.62 | 2.76 |
SOROTEC All the Inverter Series :
|
|
|
| Modified Sine Wave Inverter with charge | Pure Sine Wave Inverter for Solar System | Sine Wave Inverter with ISO transformer |
|
|
|
| High Frequency Inverter with charger and AC power | SCC mppt solar charge controller | REVO Series Hybrid solar inverter |
| APPLICATION OF OUR PRODUCT |
1. Living house and home building.
2. Office building, factory and warehouse.
3. Shopping mall, stadium and so on.
4. Power station, field operation and some huge engineer construction.
5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.
