Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Sample are Available) | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 50000PCS/Month for Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C 1000-2000VA |
|
Detail Information |
|||
| Product Name: | Solar Energy Power Inverter With 40A PWM | Inverter Power: | 1000VA-2000VA |
|---|---|---|---|
| Nominal Voltage: | 220/230/240VAC | Battey Voltage: | 12/24VDC |
| Display: | LCD&LED | Wave Form: | Modified Sine Wave |
| Solar Controller: | PWM | Applications: | Home Use |
| Highlight: | solar power inverter for home,solar energy inverter |
||
Product Description
1-2KVA Modified Sine Wave PWM Solar Energy Inverters for House
Application:
This type solar power inverter widely used to provide the reliable long time backup power supply for the household appliances office appliances (Personal computer/TV/DVD/Electric fan/FM Radio)solar power system.etc
Quick Detailes:
Off-Grid Power Supply;
Battery Voltage:1000VA /720W/12VDC,2000VA/1300W/24VDC
Working with:Solar Panels/Battery/Utilities/Generators/Miocro Home Appliances
Charging Current: 15A/20Amp optional for 1kva,10Amp for 2kva
Input Voltage Range:170-280VAC (Narrow Range); 90-280VAC (Wide Range)
Nominal Frequency:50hz/60hz (Auto detection)
Key Features:
High Frequency Modified Sine Wave Inverter
Built-in with 40Amp PWM Solar Cahrge Controller
Automatic changing AC-DC
Auto-charging &Auto-restart
3-steps intelligent charging control to recharging
LCD display, audible and visual alarm
Charging priorities optional for PV/Utilities
Optional input voltage range
Special for Home/Office appliances and solar power system
Product Descriptions of Solar Inverter
| MODEL | SSP3111C 1000-2000VA | |||
| CAPACITY | VA/W | 1000VA/720W | 2000VA/1300W | |
| NOMINAL BATTERY VOLTAGE | 12VDC | 24VDC | ||
| LINE MODE | ||||
| INPUT | Nominal Voltage | 230VAC | ||
| Voltage Range | 170-280VAC (Narrow Range) | |||
| 90-280VAC (Wide Range) | ||||
| OUTPUT | Voltage | 230VAC | ||
| Frequency | 50Hz or 60Hz | |||
| Output Waveform | Following the Utility | |||
| EFFICIENCY | >95% (full R load, battery full charged) | |||
| TRANSFER TIME | 15ms Typical, 40ms Max. | |||
| BACKUP MODE | ||||
| OUTPUT | Voltage | 230VAC (+10% / -18%) | ||
| Frequency | 50Hz or 60Hz (Auto detection) | |||
| Output Waveform | Modified Sine-wave | |||
| EFFICIENCY | >80% | |||
| OVERLOAD PROTECTION | 1min@>110%,20s@>120%,0s@>150% | |||
| PROTECTION | Discharge, over-charged, over-loading, over-temperature, short-circuit protection | |||
| BATTERY CHARGER (powered by AC) | ||||
| CHARGING ALGORITHM | 3-step charging | |||
| AC CHARGING MODE | 15 Ampor 20Amp Selectable | 10Amp | ||
| FLOATING CHARGING VOLTAGE | 13.7V | 27.4V | ||
| OVERCHARGING VOLTAGE | 16V | 32V | ||
| SOLAR BATTERY CHARGER | ||||
| MAX. INPUT POWER | 450W | 900W | ||
| CHARGING CURRENT | 40Amp | |||
| NOMINAL BATERY VOLTAGE | 12V | 24V | ||
| OPTIMAL WORK VOLTAGE RANGE | 15V~18V | 30V~36V | ||
| MAX. PV INPUT VOLTAGE | 55V | |||
| MAX. PV INPUT CURRENT | 40 Amp | |||
| GENERAL | ||||
| PHYSICAL | Dimension (DxWxH) | 275mm*226mm*85mm | ||
| Net Weight (kg) | 2.62 | 2.76 | ||
| ENVIRONMENT | Operating Environment | 0- 50°C, 5%-90 % relative humidity (non-condensing) | ||
| StorageEnvironment | -15°C to 55°C, 5% to 95% humidity (non-condensing) | |||
| Noise Level | Less than 50dB | |||

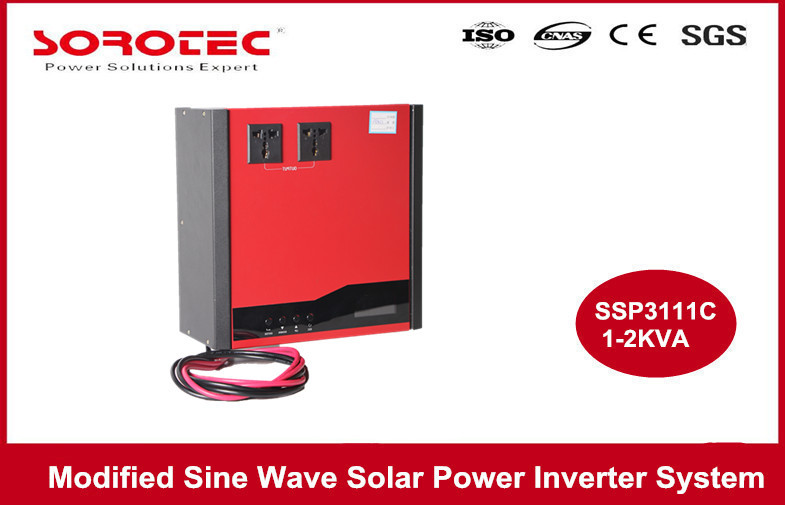

Product Picture
