Solar Power System High frequency off-grid solar power inverter 1-2KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 3000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | SPS3118C |
|
Detail Information |
|||
| Voltage: | 230VAC | Frequency Range: | 50Hz/60Hz(Auto Sensing) |
|---|---|---|---|
| AC Voltage Regulation(Batt.Mode): | 230VAC ±5% | Battery Voltage: | 24VDC/48VDC |
| Selectable Voltage Range: | 170-280VAC(For Personal Computers) 90-280VAC(For Home Appliances) | Floating Charge Voltage: | 27VDC/54VDC |
| Highlight: | solar residential systems,off grid solar power system |
||
Product Description
1-5KVA Off Grid Solar Power Systems , Pure Sine Power Inverter Built In Battery
1-5KVA Off-grid Solar Power Inverter Built-in MPPT Solar Controller
Key Features:
1.Built In Battery.
2.Pure sine wave inverter.
3.Optional remote panel available.
4.Selectable charging current based on applications.
5.Cold start function.

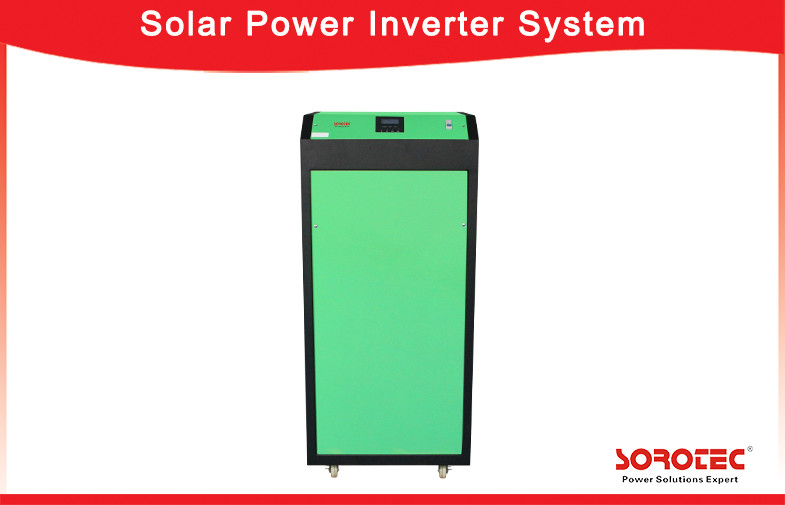

Product Show:
Product Descriptions:
| MODEL | C2 1K-2425 | C2 2K-2425 | C2 3K-2425 | C2 4K-4860 | C2 5K-4860 |
| Rated Power | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 4KVA/3200W | 5KVA/4000W |
| INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170-280VAC(For Personal Computers) 90-280VAC(For Home Appliances) |
||||
| Frequency Range | 50Hz/60Hz(Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation(Batt.Mode) | 230VAC ±5% | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 90% | 93% | |||
| Transfer Time | 10ms (For Personal Computers) 20ms (For Home Appliances) |
||||
| Waveform | Pure sine wave | ||||
| BATTERY | |||||
| Battery Voltage | 24VDC | 48VDC | |||
| Floating Charge Voltage | 27VDC | 54VDC | |||
| Overcharge Protection | 31VDC | 60VDC | |||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Array Power | 600W | 600W | 3000W | 4000W | |
| MPPT Range @ Operating Voltage | 30~66VDC | 30~66VDC | 66~115VDC | ||
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 145VDC | ||
| Maximum Solar Charge Current | 25A | 25A | 60A | 60A | |
| Maximum AC Charge Current | 20A | 30A | 30A | 60A | |
| Maximum Charge Current | 25A | 30A | 30A | 120A | 120A |
| AC charger and solar charger can't work at the same time | |||||
| Maximum Efficiency | 98% | ||||
| Standby Power Consumption | 2W | ||||
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°C-55°C | ||||
| Storage Temperature | -15°C-60°C | ||||
| PACKAGING |
| TRADE SHOW |
