50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Supply Ability : | 1000PCS/Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | IG3115CL |
|
Detail Information |
|||
| Nominal Voltage: | 230VAC | Nominal Input Voltage: | 12V/24V/48V |
|---|---|---|---|
| Charger Curves(4stage Constant: | Battery Types | Charge Current: | 0-85A MAX |
| Line Transfer Time: | 10ms Typical | Safety Certification: | >88% |
| Highlight: | mppt solar inverter,hybrid pv inverter |
||
Product Description
1-6kW Remote Control Function Solar Hybrid Energy Storage Inverter with Low Frequency Transformer
Key Features:
1. Well accept generator’s output
2. Battery temperature sense optional
3. Microprocessor control guarantees high reliability
4. Full automatical and silent operation
5. Charge current can adjust
Full protection:
Protection for low battery voltage ,over load ,output short circuit and over- temperature restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.

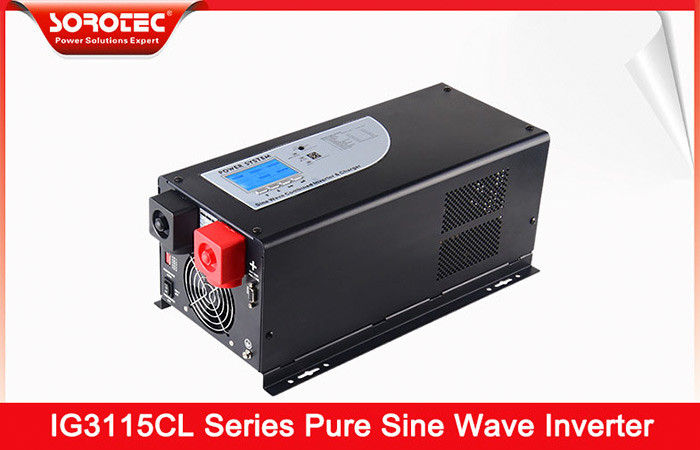

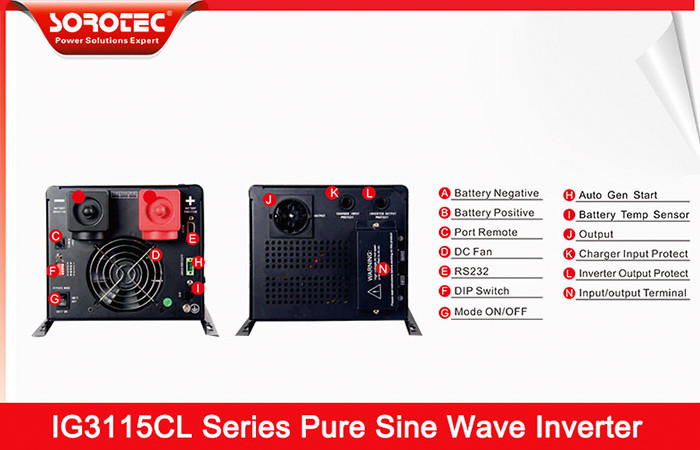

IG3115CL Solar Inverter Specifications:
| MODEL | IG3115CL 1-6KW Pure Sine wave Output Inverter | ||||||
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Input Wave form | Sine wave (utility or generator) | ||||||
| Nominal Voltage | 230Vac (120Vac optional) | ||||||
| Low voltage trip | 90v ±4% & 184v/154v ±4% | ||||||
| Low voltage re engage | 100v ±4% & 194v/164v±4% | ||||||
| High voltage trip | 140v ±4% & 253v ±4% | ||||||
| High voltage re engage | 135v ±4% & 243v±4% | ||||||
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) | ||||||
| Frequency range | 47Hz~65Hz | ||||||
| Output Wave form | (Bypass mode)same as input | ||||||
| Efficiency on line transfer mode | ≥95%+ | ||||||
| Line transfer time | 10ms Typical | ||||||
| Bypass without battery connected | Yes | ||||||
| Inverter specification/output | |||||||
| Output wave form | Pure sine wave | ||||||
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 | ||||||
| Nominal Output Voltage rms | 230Vac (120Vac optional) | ||||||
| Output Voltage regulation | +/- 10%rms | ||||||
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz | ||||||
| Safety Certification | >88% | ||||||
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes,fault after 1 secs | ||||||
| Inverter specification/input | |||||||
| Nominal input voltage | 12V/24V/48V | ||||||
| Minimum start voltage | 10V/20V/40V | ||||||
| Low battery alarm | 10.5V/21V/42V | ||||||
| Low battery trip | 10V/20V/40V | ||||||
| High voltage alarm | 16V/32V/64V | ||||||
| Power saver | Same switched on/off on remote | ||||||
| Charger mode specification | |||||||
| Output voltage | Dependent on battery type | ||||||
| Charge current | 0-85A MAX | ||||||
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) | ||||||
| Over charge protection shutdown | 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) | ||||||
| Charger curves(4stage constant curren) | battery types | ||||||
| 4 step digital controlled progressive charge | |||||||
| Battery type | Fast V Fast V(*2 for 24v;*4 for 48v) | ||||||
| Gel U.S.A | 14.0 13.7 | ||||||
| A.G.M. 1 | 14.1 13.4 | ||||||
| A.G.M. 2 | 14.6 13.7 | ||||||
| Sealed lead acid | 14.4 13.6 | ||||||
| Gel euro | 14.4 13.8 | ||||||
| Open lead acid | 14.8 13.3 | ||||||
| Calcium | 15.1 13.6 | ||||||
| De-sulphation | 15.5 for 4 hrs | ||||||
| Remote control/RS232/USB | Yes. Optional | ||||||
| THREE STRATEGIC INDUSTRIES |
| COMPANY SHOW |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
