Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Sample are Available) | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 50000PCS/Month for Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C 1000-2000VA |
|
Detail Information |
|||
| Product Name: | Solar Power Inverters | Inverter Power: | 1KVA 720W |
|---|---|---|---|
| Nominal Voltage: | 50/60Hz | Battey Voltage: | 12VDC |
| Wave Form: | Modified Sine Wave | Solar Controller: | PWM |
| Applications: | Household | ||
| Highlight: | solar power inverter for home,solar energy inverter |
||
Product Description
1KVA 720W Solar Power Inverters Solar Power System Modified Sine Wave Inverter
Inverter Functions
This type solar power inverter widely used to provide the reliable long time backup power supply for the household appliances office appliances and solar power system.etc
Quick Detailes:
1. Modified Sine Wave Solar Power Inverter
2. Solar Power Inverter System for Home Use
3. SSP3111C Series Solar Power Inverter System
4. 1000VA/720W,2000VA/1300W Inverter System
5. Red Color with High Frequency Design
6. LCD Display and LED Display available
7. Work with Solar Panels/Battery/Utilities/Generators/Miocro Home Appliances
8. Suitable for Personal computer/TV/DVD/Electric fan/FM Radio/Solar Power System
Others Characteristics
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.
11.LCD display, audible and visual alarm.
Product Descriptions of Solar Inverter
| Model | SSP3111C Plus 1000-2000VA | |
| 1000-12 | 2000-24 | |
| Capacity | 1000VA/720W | 2000VA/1440W |
| Nominal Voltage | 220/230/240VAC | |
| Nominal Frequency | 50/60Hz | |
| Input | ||
| Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
| Frequency Range | 50/60Hz | |
| Output | ||
| Voltage Regulation | 230VAC±10% | |
| Frequency Regulation | 50/60Hz±0.1Hz | |
| Wave Form | Modified Sine wave | |
| Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
| Battery mode to Utility | 10ms max | |
| Battery mode efficiency | >80% | |
| Line mode efficiency | >95% (battery full charged) | |
| Battery | ||
| DC Voltage | 12V | 24V |
| Overcharge Protection | 16V | 32V |
| Charge Current | 15A/20A | 10A |
| LCD Display & LED Indicate | ||
| Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
| Line mode 2,charge current ≦3A Green solid lighting | ||
| Off-charge mode Green flashing as cycle: | ||
| Battery Mode | Yellow lighting | |
| Overload | Red flashing every 0.5 second | |
| Fault | Red lighting | |
| SOLAR CHARGE | ||
| Maximum PV Array Open Circuit Voltage | 55VDC | |
| PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
| Maximum Charging Current | 50A | |
| Maximum Efficiency | >96% | |
| Standby Power Consumption | <20W | |
| Environment | ||
| Temperature | 0°C~40°C | |
| Humidity | 5%-95% (<40°C, Non-condensing) | |
| Storage Temperature | -15°C~55°C | |
| Elevation | <1500m | |
| IP Proyection level | IP20 | |
| PHYSICAL | ||
| Dimension,D×W×H (mm) | 298.9×250×105 | |
| Net Weight (kgs) | 2.62 | 2.76 |

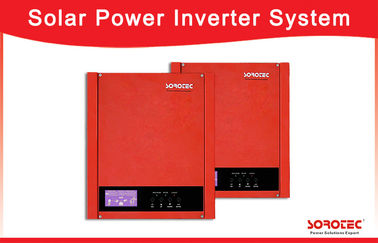

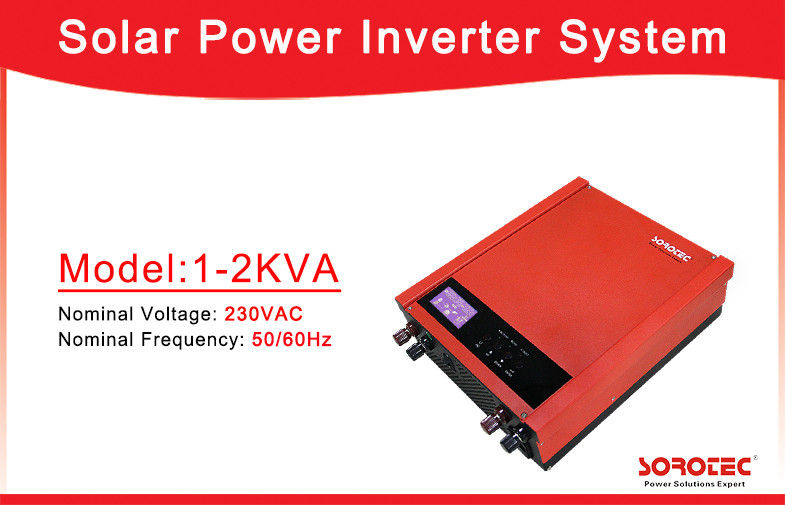

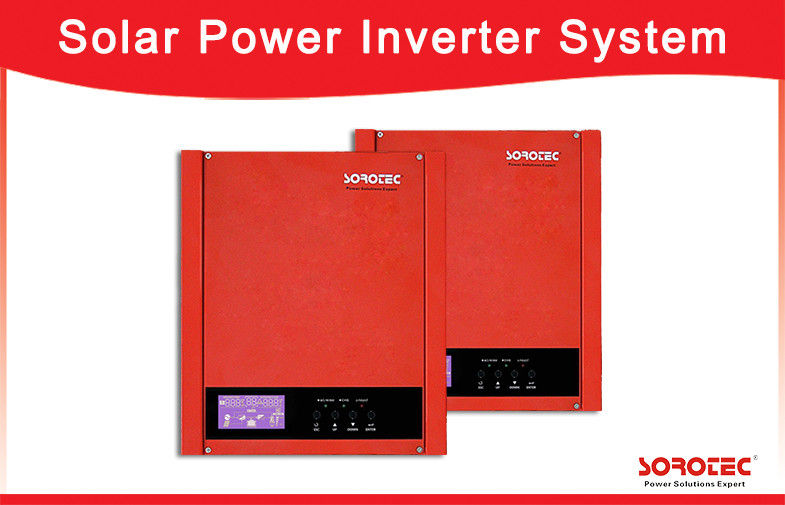

Product Picture:
