1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW
1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW 1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW
Contact Now

1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW

Minimum Order Quantity : 1 PCS UPS Available Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets for Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9117C 0.7 - 3KVA Online UPS

Detail Information
Product Name: Uninterrupted Power Supply( UPS) Type: Rack Tower Online UPS
Capacity: 0.7-3KVA Power Factor: 0.9
Wave Form: Pure Sine Wave UPS Frequency: 50/60HZ
Double Conversion: AC-DC-AC Applications: Medical System
Highlight:

backup power supply

,

uninterruptable power supply

Product Description



1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW



Brief Introduction :



HP9117C Series High Frequency Online UPS Uninterrupted Powe Supply System,which capacity from 0.7KVA to 3KVA ,special for provide reliable  long time backup power supply to personal computers,medical,telecom,local area networks,labs,servers,e-business and so on equipments.It use DSP cotrol technology,double -conversion online design and widely used in anywhere critical equipment and appliances require clean,continuous power.



Key Features:

  • DSP control technology,Double-conversion online design
  • Protects against downtime, data loss and process interruption
  • Offers good performance with a 0.9 power factor and effixiency>95%
  • Can replace batteries online, convenient for user to use
  • Enables prolonged runtime of essential equipment during power outages
  • Remote shutdown of non-critical systems or processes
  • Provides installation flexibility with a choice of rack or tower designs
  • Enhanced monitoring and configuration capability
  • Prolong the service life of battery system uptime with ABM battery charging technology



Application :
IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing




Technical Specifications of Online UPS HP9117C 1-3KVA:


Model

HP9117C 0.7-3KVA

0.7KT/0.7KR

1KT-XL/1KR-XL

2KT/2KR

2KT-XL/2KR-XL

3KT/3KR

3KT-XL/3KR-XL

Capacity

0.7KVA/0.63K                                                         1KVA/0.9KW

    2KVA/1.8KW

   3KVA/2.7KW

Nominal Voltage

100/110/120/127VAC or 200/208/220/230/240VAC

Nominal Frequency

50/60 Hz

Input

Voltage Range

60-138VAC or 115-276VAC

Frequency Range

50HZ:(46～54HZ)；60HZ:(56HZ～64HZ)

Power Factor

＞0.98

Output

Voltage precision

100/110/120/127VAC(±2%) or 200/208/220/230/240VAC (±2%)

Frequency precision

50Hz/60Hz±0.05Hz

Power Factor

0.9

Harmonic Distortion

Linear Load＜3%    Non-Linear Load＜5%

Overload capacity

overload(110%～150%)after 30 seconds automatically transfer to bypass, it recover after  normal load

Current Crest Ratio

3∶1

Transfer time

0ms(AC→DC)

Battery

DC voltage

36VDC

96VDC

96VDC

Recharge time

7 hours to 90%

Charge Current

1A

4A/8A(option)

1A

4A/8A(option)

1A

4A/8A(option)

Panel Display

LCD

UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records

Language

English, French, German, Russian, Spanish

Communicate

Communicate  interface

Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port)

Working Environment

Temperature

0～40℃

Relative humidity

0～95% non-condensing

Storage Temperature

-25℃～55℃

Elevation

＜1500 meter

Noise Level( 1meter)

＜45dB

＜45dB

＜50dB

Physics Characteristic

Net weigh(Kg)

15

16

8.5

9

33

10.5

16.5

11.5

34

11.5

17

12.5

Gross weight (Kg)

17.5

17.5

11

11.5

35

12.5

18.5

13.5

36

13.5

19

14.5

Dimension (WXDXH)

Main unit(Tower)

200X400X145

340X460X192

340X460X192

Main unit (Rack mount)

438X415X80

455 X440 X90

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice



Product Show:

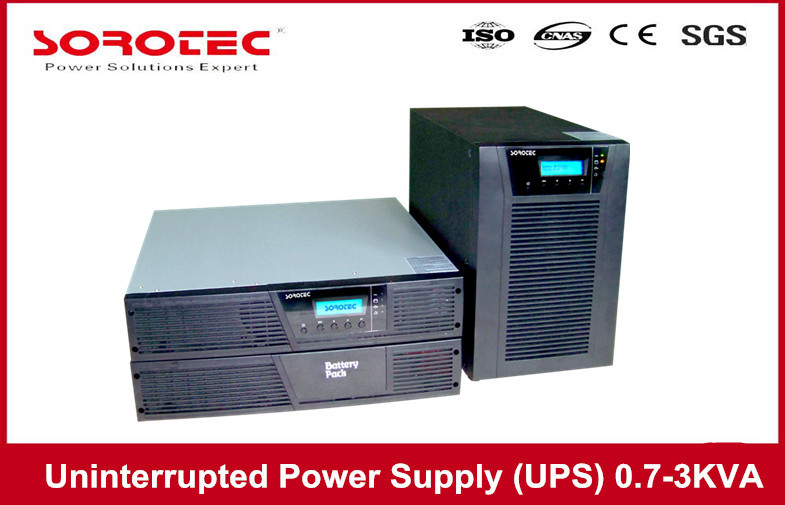

1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW 0

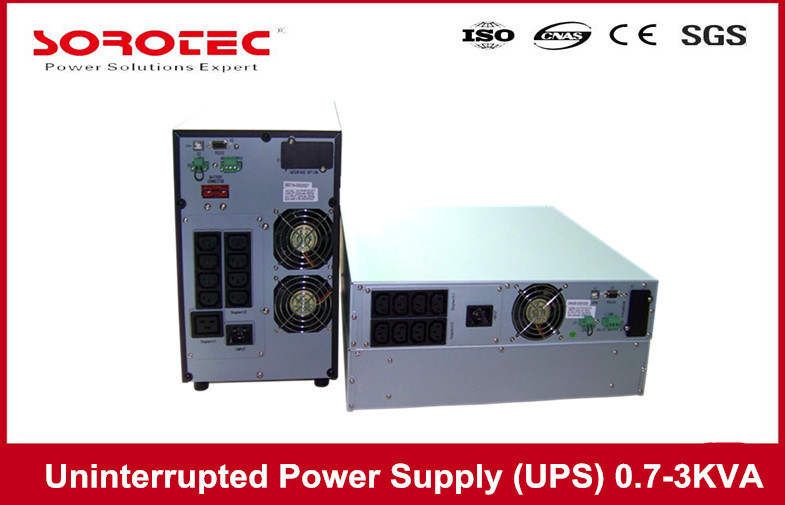

1Ph in 1Ph out Uninterrupted Power Supply / High Frequency Online UPS 3KVA 2.7KW 1
