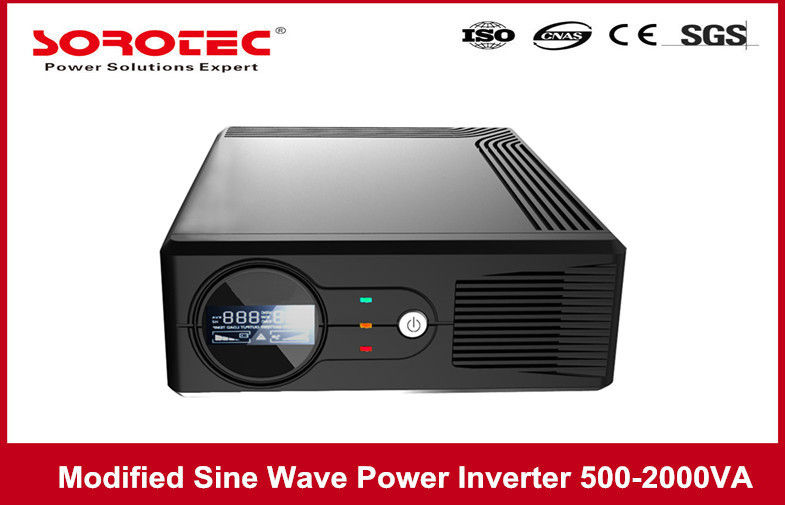

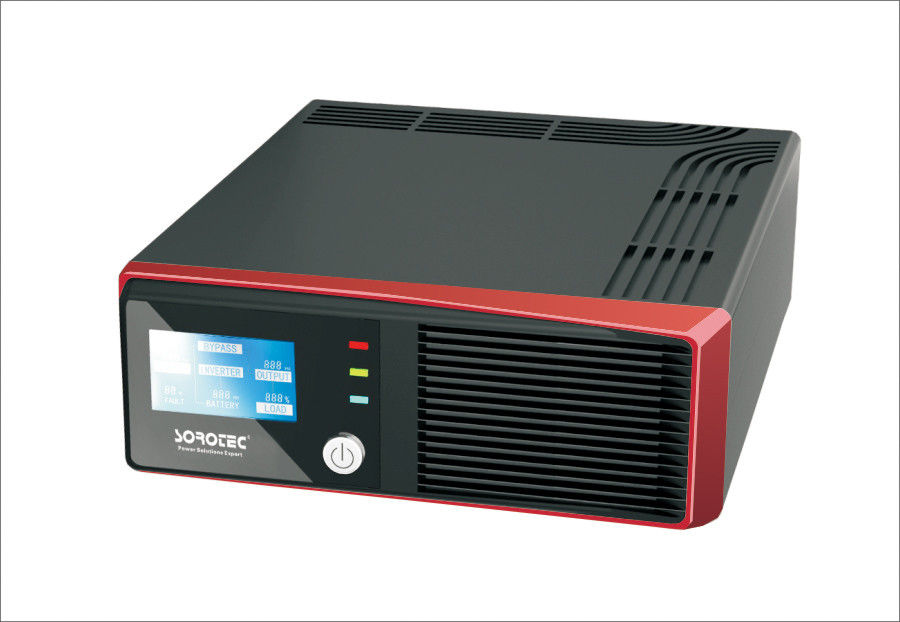

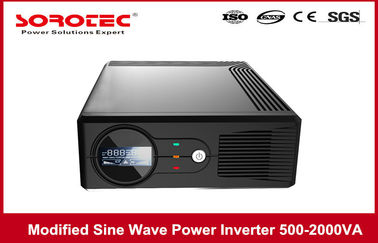

Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 30PCS | Price : | 100~300 USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Power Inverters | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, , T/T, Western Union | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | IG3110C Series 500 - 2000VA Power Inverter |
|
Detail Information |
|||
| Waveform: | Modified Sine Wave Inverter | Power Factor: | 0.6 |
|---|---|---|---|
| AC Charger: | 10A/20A | Display: | LCD&LED |
| Inverter Power: | 2000VA/1200W | Application: | Inverter For Home Use |
| DC Voltage: | 24VDC | ||
| High Light: | solar power inverter for home,home power inverter |
||
Product Description
2000VA 1200W 24V 50HZ Small Power Home Inverter ,Modified Sine Wave Inverters
| Model | IG3110C series Power Inverter |
| Capacity | 500-2000va |
| Output Waveform | Modified Sine Wave |
| Input Voltage Range | 176-280vac |
| Output Voltage | 220/230/240vac |
| Power Factor | 0.6 |
| Frequency | 50/60HZ |
| Battery Voltage | 12V/24V |
| AC Charger | 10A/20A |
| Display | LCD |
| Service | OEM produce&Sample available&1 Year Warrantee |
Applications:
Supply the reliable long back up time power for the Home appliances and office appliances .
(DVD,Fan,TV,FM Radio,Personal Computer.......)
Advantage and Benefit of Our IG3110C Inverter:
Full protection:
Protection for low battery voltage, over load, output short circuit and over- temperature
Restrain surge interference, eliminate noise, protection for Thunder striking, provide the reliable power
Technical Specifications of LCD UPS inverter IG3110C 500-2000VA
Model |
IG 3110C 500-2000VA |
||||
|
500-12 |
1000-12 |
2000-24 |
1000-24 |
||
|
Capacity |
500VA/300W |
1000VA/600W |
2000VA/1200W |
1000VA/600W |
|
|
Nominal voltage |
220/230/240VAC |
||||
|
Nominal frequency |
50/60Hz |
||||
|
Input |
|||||
|
Voltage Range |
176VAC-280VAC(±3VAC) |
||||
|
Frequency Range |
50/60Hz |
||||
|
Output |
|||||
|
Voltage Regulation |
220/230/240VAC±2% |
||||
|
Frequency Regulation |
50/60Hz+0.1Hz |
||||
|
Wave Form |
Modified sine wave |
||||
|
Switch time |
Standard 2～4ms Typical 6ms |
||||
|
Current |
|||||
|
Charge Current |
10A |
10A |
10A |
6A |
|
|
DC Voltage |
12V |
12V |
24V |
24V |
|
|
Overcharge Protection |
15V |
15V |
30V |
30V |
|
|
Display |
|||||
|
LCD |
UPS Status, Input/output Voltage and Frequency, Load, AC, battery , fault, etc |
||||
|
Operating Environment |
|||||
|
Temperature |
0℃～40℃ |
||||
|
Humidity |
5%～95%(<40℃, no condensation) |
||||
|
Storage Temperature |
-25℃～55℃ |
||||
|
Elevation Noise (within 1 metre) |
Less than 1500 meter |
||||
|
Physical |
|||||
|
Weight(KG) |
Net weight |
2.0 |
2.5 |
2.5 |
2.0 |
|
Gross weight |
2.2 |
2.7 |
2.7 |
2.2 |
|
|
Dimension:WXDXH mm |
224×225×80 |
||||
