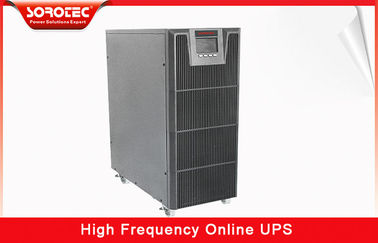

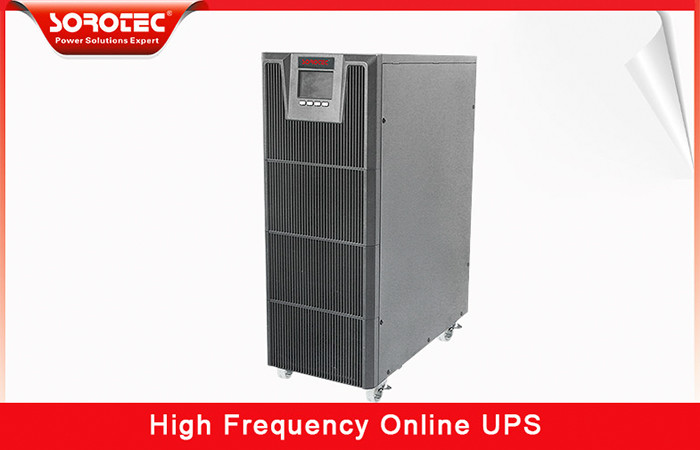

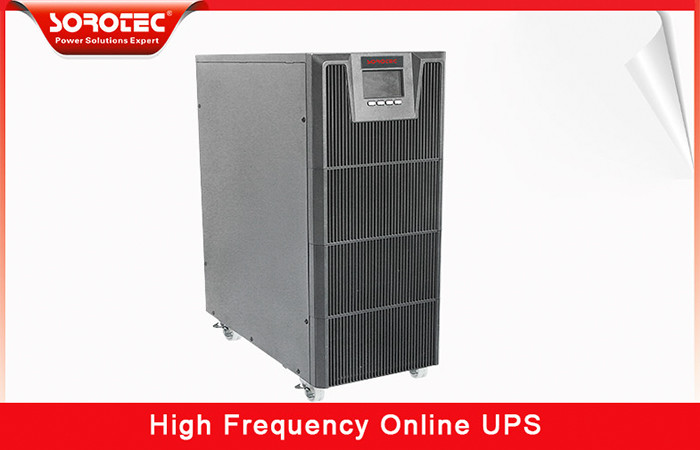

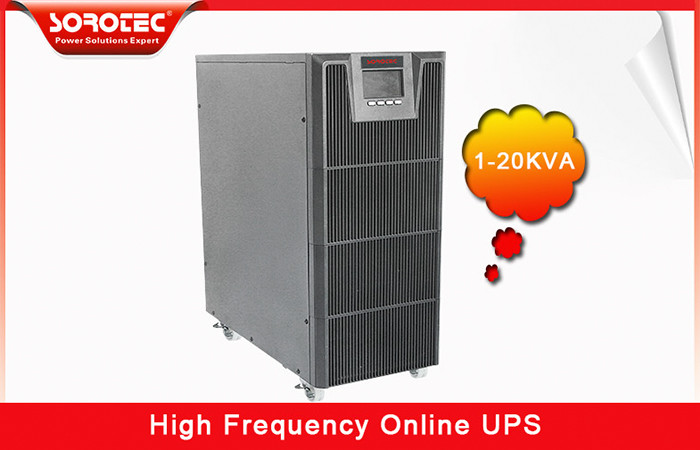

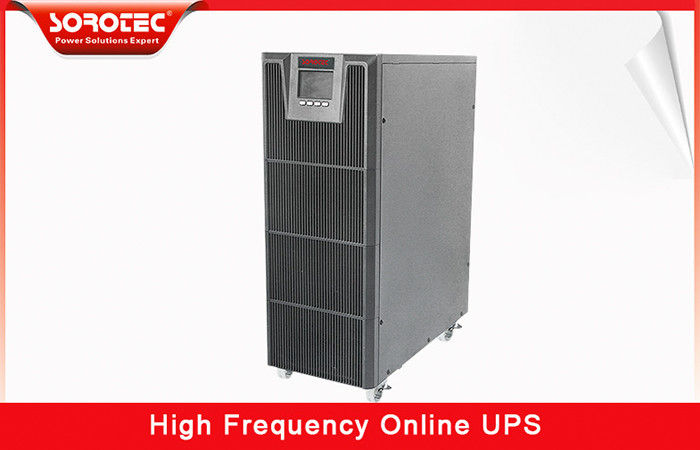

3 Phase 20KVA / 14KW, 15KVA /10.5KW True online double conversion High Frequency UPS
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS | Price : | USD10000 |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | HP9116C PLUS |
|
Detail Information |
|||
| Product: | HP9116C PLUS | MODEL: | 1000-20000VA |
|---|---|---|---|
| Nominal Voltage: | 220/230/240VAC | Power Factor: | 0.9 |
| Phase: | 1 Put In/1 Put Out | Wave Form: | Pure Sine Wave |
| Battery Voltage: | 24VDC/36VDC/48VDC/72VDC/96VDC | Frequency: | 40-70HZ |
| Technology: | IGBT | Application: | Medial,security |
| Color: | Black | Efficiency Up To: | 94% |
| Highlight: | ups uninterruptible power supply,pure sine wave ups |
||
Product Description
220/230/240/380VAC High Frequency Online UPS with LCD Display and Parallel Technology
Muilti-function and Friendly Design
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%.
Product application areas
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on.
Advanced Parallel Technology
1. Stable parallel control technology make sure current sharing to 1%.
2. Select trip technology can avoid and isolation system fault then improved system availability.
3. Flexible extension capacity and redundance management that can satisfy all kinds of 4. requirements.
5. Support maximum 3 units for parallel working Flexible strategy.
Flexible Strategy
6. On line mode provides higher system availability.
7. High efficiency mode provides more economic operation.
8. Frequency conversion provides more stable output.
Product Brif
Highly Flexible and Extendable
Charge Current Can Be Adjust
1. Standant charge current 4A.
2.. Support more discharge time and more capacity battery for 8A charger Input topology design.
Input Technology Design
3. Support three phase input or single phase input for three phase UPS
4. Super wide input voltage and frequency range suitable for bad power electirc environment
5. Digital control DSP technology and best power component make the system safe and reliable
Battery Type Can Be Choice
6. Battery voltage can be choice depend on capacity , can satisfy different requirement.
7. Convenience to get more back up time and lower system invests.
8. Convenience to save cost of battery.
9. Intelligent battery monitors Charge current can be adjust.
Description of detail:
| Model | HP9116C/HP9316 Plus 1-20k series |
| Type | |
| Phase | 1 Ph in/1Ph out & 3Ph in/3 Ph out |
| Capacity | 1-20KVA |
| Output Power Factor | 0.9 |
| Nominal Voltage | 220/230/240/380VDC |
| Nominal Frequency | 40-70HZ |
| Parallel Working | Maximum 3 units |
| Battery Voltage | 24VDC/36VDC/48VDC/72VDC/96VDC |
| Transfer Time | 0ms |
Technical Specification:
| Model | HP9116C 6-10KVA | ||||||||
| 6KT | 6KT-XL | 10KT | 10KT-XL | ||||||
| Rated Power | 6KVA/4.2KW | 10KVA/7KW | |||||||
| Rated Voltage | 220/230/240VAC | ||||||||
| Rated Frequency | 50/60 Hz | ||||||||
| Input | |||||||||
| Voltage Range | 176~279VAC (±3VAC) | ||||||||
| Frequency Range | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) | ||||||||
| Power Factor | 0.98 | ||||||||
| Output | |||||||||
| Voltage Regulation | 208/220/230/240X (1±2%)VAC | ||||||||
| Frequency Regulation | 50/60 Hz±0.05Hz | ||||||||
| Power Factor | 0.7/0.8 (Optional)Standard 0.7 | ||||||||
| Voltage Distortion | Linear load＜3％ Non-linear load＜6％ | ||||||||
| Overload Capability | 105%~130% for 10 min；≥130% for 1 min | ||||||||
| Current Crest Ratio | 3:1 | ||||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||||
| Battery | |||||||||
| DC Voltage | 240VDC | ||||||||
| Recharge Time | 7 hours to 90% of capacity after full load discharge | ||||||||
| Recharge Current | 2A | 4.2A | 2A | 4.2A | |||||
| Display | |||||||||
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. | ||||||||
| Communication | |||||||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | ||||||||
| Environment | |||||||||
| Operation Temperature | 0~40℃ | ||||||||
| Humidity | 0~95% (Non-condensing) | ||||||||
| Storage Temperature | -25℃~55℃ | ||||||||
| Sea Level Elevation | ＜1500m | ||||||||
| Noise Level (1m) | ＜55dB | ||||||||
| Physics Characteristic | |||||||||
| Weight(KG) | 79.0 | 33.5 | 81.5 | 36.0 | |||||
| 87.5 | 39.5 | 90.0 | 42.0 | ||||||
| Dimensions: Wx D x H )mm | 260X570X717 | ||||||||
