Modular UPS-High Frequency Online Uninterrupted Power Supply MPS9335C Ⅱ 50-720KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1pcs | Price : | 1-10000 USD |
|---|---|---|---|
| Packaging Details : | Wooden Packing | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union |
| Place of Origin: | China | Brand Name: | SOROTEC /OEM |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | MPS9335C 10-300KVA Modular UPS |
|
Detail Information |
|||
| Modular UPS: | High Frequency Online UPS | Capacity: | 10-300kva |
|---|---|---|---|
| Phase: | 3Ph In 3Ph Out | Output Power Factor: | 1.0 |
| Frequency: | 40-70hz | Protection: | Unbalanced Loads |
| Parallel Mode: | N+X | DC Voltage: | ±240VDC(Default),12V Battery30-40pcs Can Be Choose |
| Bypass Input Voltage: | 380/400/415VAC 3-phase 4-wire | Overload Capacity: | 150%,long Term Operation,150%<load<180%,more Than 1 Hour ,load>1000% 100ms |
| Application: | Computing Center, ISP (Internet Service Provider ),Telecom,Finance Bank And Securities, Tax, Hospital System, Industrial Automation, Precision Equipment, Etc. | ||
| Highlight: | ups power,remote control ups |
||
Product Description

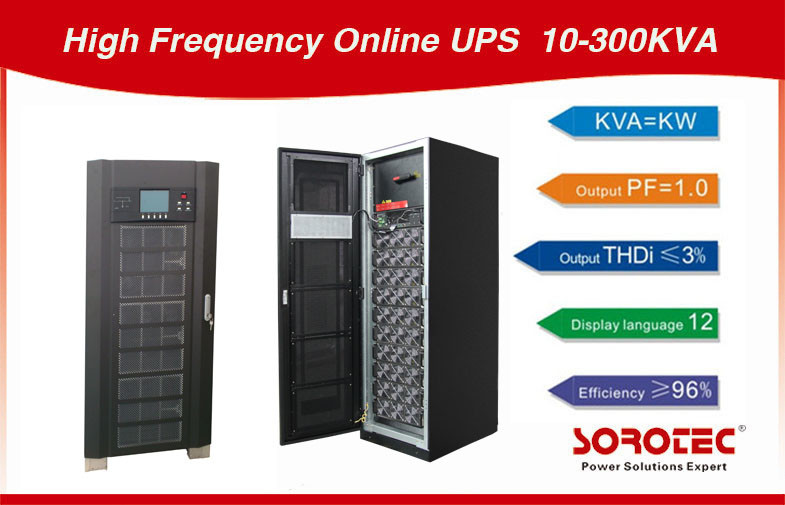

3 Ph in 3Ph out Smart battery backup power supply uninterruptible Large Power
Brief Introduction:
SOROTEC MPS9335C 10KVA-300KVA (3Ph in /3Ph out) Series is a high frequency Online UPS with flexible Modular Structure Special for large power loads to achieve Online Capacity Expasion and Maintenance.Easy to removed at runtime and installed without affecting the system operation and output.When users want to add load to the UPS,only adding the required number of modulars for expansion.It help customer to save the costs for initial equipment purchasing and future expansion.When user estimated UPS capacity,often undestimated or high expected.MPS9335C series power can solve the above problems effectively.
Key Features:
1.Superior energy saving and environment-friendly
2.Superior capability of powering load
3.Easy to install,maintain and modify
4.6-inch Extra large LCD that can display 12 languages
5.Large LCD touch screen can be choiced
6.Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
7.On-Line Double Conversion with zero transfer time
8.Fully isolating the influences of power grid pollution and power failure from utility power supply and diesel generator to load
9.Advanced DSP full digital control technologies realize higher system stability,online capacity expansion and maintenance
10..Advanced distributed active parallel technology realizes parallel operation of 4 UPS units and online capacity expansion
without centralized bypass cabinet
11.Digital load sharing technology features extra low cross current and extreme high system reliability in parallel operation
12.Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
13.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety
at limit conditions
14.Intelligent battery management maintains battery automatically to prolong the battery life
15.Efficient heat dissipation and effective protection under severe environment due to its independent layer-sealed ventilation
channel and redundant fan design, as well as the paint-protected circuit boards and built-in dust filter
Technical Parameter:
| Model | MPS9335 30-150KVA | ||
| Capacity | 30-150KVA | ||
| Main input | |||
| Input voltage | 380V/400V/415AC(Optional South America 208v) | ||
| Input Frequency Range | 50/60Hz | ||
| Power Factor | Full load>0.99 ,Half load >0. 98 | ||
| THDi | THDi <3% | ||
| Input power soft-start fantion | 5-30s settable | ||
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% | ||
| Frequency Range | 40-70Hz | ||
| Battery | |||
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose | ||
| Charge Voltage accuracy | ± 1% | ||
| Bypass | |||
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set viasoftware | ||
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms | ||
| Output | |||
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) | ||
| THDV | THDV<1%(linear load), THDV<3%(nonlinear load) | ||
| Power Factor | 1 | ||
| Three Phase Angle accuracy | 120°c ± 0.5°c | ||
| Current Crest Ratio | 3:1 | ||
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms | ||
| Transfer Time | 0ms,15ms(ECO Mode) | ||
| System | |||
| Frequency | 50Hz/60Hz (Settable) | ||
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz | ||
| Protection Level | IP41/IP42 | ||
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port | ||
| System efficiency | > 96% at load above 50%, >95% at load above 25% | ||
| Operation Temperature | 0-40 °c | ||
| Storage Temperature | -25 °c -70 °c (without battery) | ||
| Humidity | 0-95%(no-condensing) | ||
| Noise(dB) | 55-62dB,Adjusted with load | ||
| Weight | 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 180KG | |
| module :PM10 | 10KVA power module :28KG | ||
| module :PM20 | 20KVA power module :30KG | ||
| module :PM30 | 30KVA power module :35KG | ||
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 | |
| 10 module cabinet | 600X2070X850 | ||
| power module | 440X132X660(10KVA/20KVA/30KVA) | ||
Typical Application:
IDC(Internet Data Center),Computing center, ISP (Internet Service Provider ), Telecom, Finance
bank and securities, Tax, Hospital system, Industrial automation, Precision equipment, etc.
