USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS Modular UPS | Price : | 1-10000 USD |
|---|---|---|---|
| Packaging Details : | Wooden Packing for Modular UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS Per Month for Modular UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | MPS9335C 10-300KVA Modular UPS |
|
Detail Information |
|||
| Product: | Modular UPS | UPS Power: | 10-300KVA |
|---|---|---|---|
| Phase: | Three Phase | Frequency: | 50/60HZ(Settable) |
| Nominal Voltage: | 380/400/415VAC | Application: | Data Center |
| Battery Voltage: | 240VDC(Default) | System Efficiency: | >90% At Load Above 50% |
| Highlight: | uninterruptable power supply,ups power supply |
||
Product Description

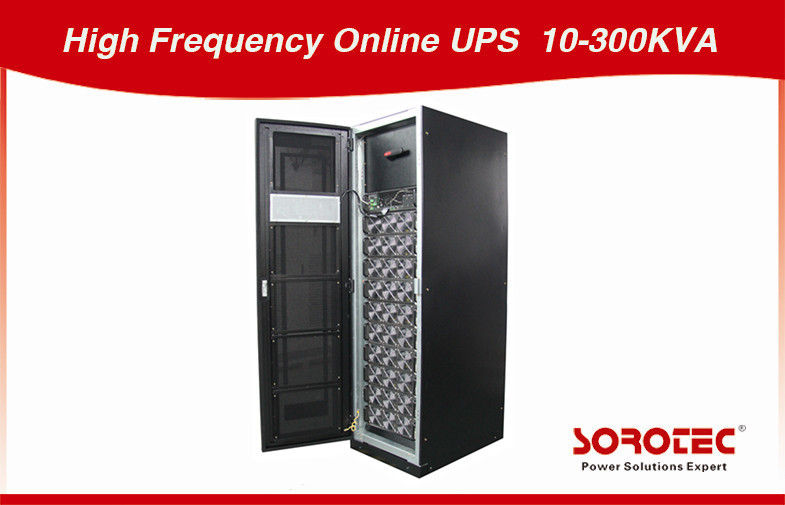

3 Phase 4 Wire portable ups power supply , electronic ups in data center
Key Features:
1. High Frequency Online UPS-Modular UPS 10KVA-300KVA
2.Each UPS modules provide 4.5kw charge capacity,equal to 10 to 20A
3. UPS power module supporting hot swappable,capacity upgrade extramely simple
4. Intelligent battery management maintains battery automatically to prolong the battery life
5. Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
6. The machine system for modular structure ,consist of 1 to 10 modulaes biggest module is 30kw
7. Super Ability for overload and short circuit,ensure the system stability and safety under the limit state of system
8. Advanced DSP full digital control technologies realize higher system stability,online capacity expansion and maintenance
9. Advanced didtributed active parallel technology realize parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet
Application:
Application IDC(Internet Data Center),computer center,ISP(Internet Service Provider),Telecom,Finance bank and securities,Tax,hospital system,industrial automation,precision equipment,etc
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
| Model | MPS9335 10-300KVA | ||
| Capacity | 10-300KVA | ||
| Main input | |||
| Input voltage | 380V/400V/415AC(Optional South America 208v) | ||
| Input Frequency Range | 50/60Hz | ||
| Power Factor | Full load>0.99 ,Half load >0. 98 | ||
| THDi | THDi <3% | ||
| Input power soft-start fantion | 5-30s settable | ||
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% | ||
| Frequency Range | 40-70Hz | ||
| Battery | |||
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose | ||
| Charge Voltage accuracy | ± 1% | ||
| Bypass | |||
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software | ||
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms | ||
| Output | |||
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) | ||
| THDi | THD<1%(linear load), THD<3%(nonlinear load) | ||
| Power Factor | 0.9 | ||
| Three Phase Angle accuracy | 120°c ± 0.5°c | ||
| Current Crest Ratio | 3:1 | ||
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms | ||
| Transfer Time | 0ms,15ms(ECO Mode) | ||
| System | |||
| Frequency | 50Hz/60Hz (Settable) | ||
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz | ||
| Protection Level | IP20 | ||
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port | ||
| System efficiency | > 96% at load above 50%, >95% at load above 25% | ||
| Operation Temperature | 0-40 °c | ||
| Storage Temperature | -25 °c -70 °c (without battery) | ||
| Humidity | 0-95%(no-condensing) | ||
| Noise(dB) | 55-62dB,Adjusted with load | ||
| 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG | |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG | |
| module :PM10 | 10KVA power module :20KG | ||
| Weight | module :PM20 | 20KVA power module :21KG | |
| module :PM30 | 30KVA power module :32KG | ||
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 | |
| 10 module cabinet | 600X2070X850 | ||
| power module | 440X132X660(10KVA/20KVA/30KVA) | ||
