USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS | Price : | 1-10000 USD |
|---|---|---|---|
| Packaging Details : | Wooden Packing | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | Western Union, L/C, T/T | Supply Ability : | 3000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC (OEM) |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | MPS9335C Modular UPS |
|
Detail Information |
|||
| Product Name: | High Frequency Online UPS -Modular UPS | Type: | Online UPS |
|---|---|---|---|
| Design: | High Frequency | Capacity: | 10-300KVA UPS |
| Loads: | Large Power | Application: | Data Center |
| Phase: | Three Phase | Output Power Factor: | 1.0 |
| Parallel Mode: | N+X (Max 4 Pcs UPS | Frequency Range: | 40-70HZ (Standard 50/60HZ) |
| Mains Input Voltage: | 380/400/415vac | Input THDi: | <3% |
| Battery Voltage: | 240VDC,12V Battery 30~40pcs Can Be Choose | Bypass Input Voltage: | 380/400/415vac 3-Phase 4-wire |
| Protection: | Unbalanced Loads | Transfer Time: | 2ms |
| Remote Control: | RS232 ,RS485,SNMP Card | Modular Structure: | Hot-Swappable |
| Guanrantee: | 2 Year | Samples: | Available |
| Certificate: | CE | ||
| Highlight: | backup power supply,ups power supply |
||
Product Description

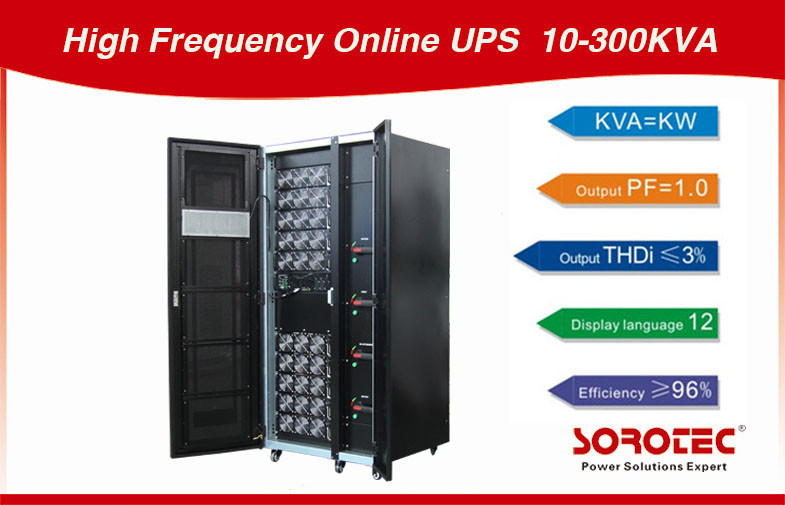

3Ph in 3Ph out 10KVA -300KVA uninteruptible power supply for Data Center
SOROTEC MPS9335C 10-300KVA (3Ph in/3Ph out) Series Modular UPS
Key Features:
1.Superior energy saving and environment-friendly: Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
2.Superior capability of powering load: Output PF is 0.9, no need of power deration with load of leading or lagging PF
3.Easy-to-install: Top or bottom cabling, no need of input cabling cabinet.
4.Easy-to-maintain: Full front access, UPS, failed part can be replaced shortly
5.Easy-to-modify: The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.
6. 6-inch extra large LCD that can display 12 language ( Chinese,English , Russian , Spanish , French and so on )
7.touch screen optional
Application:
ApplicationIDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
| Model | MPS9335 10-300KVA | ||
| Capacity | 10-300KVA | ||
| Main input | |||
| Input voltage | 380V/400V/415AC(Optional South America 208v) | ||
| Input Frequency Range | 50/60Hz | ||
| Power Factor | Full load>0.99 ,Half load >0. 98 | ||
| THDi | THDi <3% | ||
| Input power soft-start fantion | 5-30s settable | ||
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% | ||
| Frequency Range | 40-70Hz | ||
| Battery | |||
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose | ||
| Charge Voltage accuracy | ± 1% | ||
| Bypass | |||
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software | ||
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms | ||
| Output | |||
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) | ||
| THDi | THD<1%(linear load), THD<3%(nonlinear load) | ||
| Power Factor | 0.9 | ||
| Three Phase Angle accuracy | 120°c ± 0.5°c | ||
| Current Crest Ratio | 3:1 | ||
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms | ||
| Transfer Time | 0ms,15ms(ECO Mode) | ||
| System | |||
| Frequency | 50Hz/60Hz (Settable) | ||
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz | ||
| Protection Level | IP20 | ||
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port | ||
| System efficiency | > 96% at load above 50%, >95% at load above 25% | ||
| Operation Temperature | 0-40 °c | ||
| Storage Temperature | -25 °c -70 °c (without battery) | ||
| Humidity | 0-95%(no-condensing) | ||
| Noise(dB) | 55-62dB,Adjusted with load | ||
| 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG | |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG | |
| module :PM10 | 10KVA power module :20KG | ||
| Weight | module :PM20 | 20KVA power module :21KG | |
| module :PM30 | 30KVA power module :32KG | ||
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 | |
| 10 module cabinet | 600X2070X850 | ||
| power module | 440X132X660(10KVA/20KVA/30KVA) | ||
