50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Supply Ability : | 1000PCS/Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | IG3115CS |
|
Detail Information |
|||
| Input Wave Form: | Sine Wave | Nominal Input Frequency: | 50Hz/ 60Hz |
|---|---|---|---|
| Efficiency On Line Transfer Mode: | ≥95%+ | Remote Control/RS232/USB: | Yes. Optional |
| Nominal Input Voltage: | 12V/24V/48V | Short Circuit Protection: | Yes,fault After 1 Secs |
| Highlight: | mppt solar inverter,hybrid pv inverter |
||
Product Description

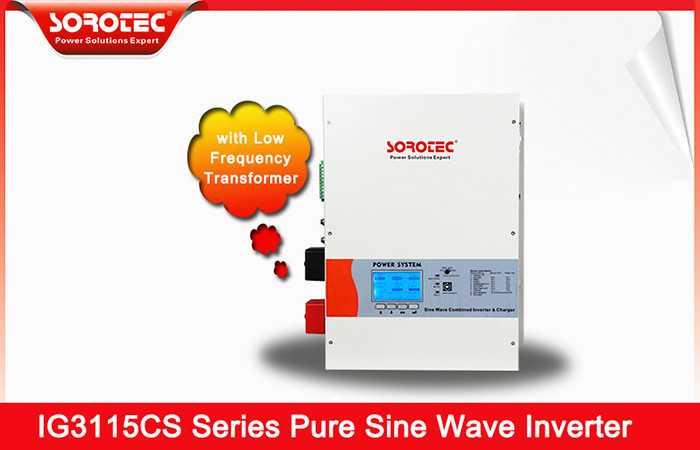

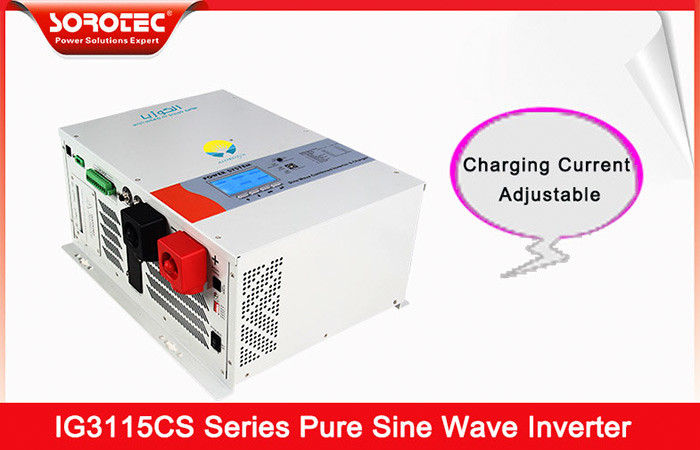

5000W Charging Current Adjustable Solar Power Inverters with Low Frequency Transformer
Key Features:
1.Pure sine wave output
2.The charging current is big up to 85 Amp
3.Output power factor:s 0.9-1
4.Well accept generator’s output
5.Full automatical and silent operation
6.Automatically transfer between battery and line modes
7.Microprocessor control guarantees high reliability
8.Remote control function
9.Three-steps intelligent charging control to recharging time
10.Bypass and bypass voltage regulation function
11.Could be setting frequency by LCD display with color screen
12.Battery type and charge current can be select
| MODEL | IG3115CS 1-12KW Pure Sine wave Output Inverter | |||||||||
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | |
| Input Wave form | Sine wave (utility or generator) | |||||||||
| Nominal Voltage | 230Vac (120Vac optional) | |||||||||
| Low voltage trip | 90v ±4% & 184v/154v ±4% | |||||||||
| Low voltage re engage | 100v ±4% & 194v/164v±4% | |||||||||
| High voltage trip | 140v ±4% & 253v ±4% | |||||||||
| High voltage re engage | 135v ±4% & 243v±4% | |||||||||
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) | |||||||||
| Frequency range | 47Hz~65Hz | |||||||||
| Output Wave form | (Bypass mode)same as input | |||||||||
| Efficiency on line transfer mode | ≥95%+ | |||||||||
| Line transfer time | 10ms Typical | |||||||||
| Bypass without battery connected | Yes | |||||||||
| Inverter specification/output | ||||||||||
| Output wave form | Pure sine wave | |||||||||
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Power factor | 0.9-1.0 | |||||||||
| Nominal Output Voltage rms | 230Vac (120Vac optional) | |||||||||
| Output Voltage regulation | +/- 10%rms | |||||||||
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz | |||||||||
| Safety Certification | >88% | |||||||||
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 | 24000 | 30000 | 36000 |
| Short circuit protection | Yes,fault after 1 secs | |||||||||
| Inverter specification/input | ||||||||||
| Nominal input voltage | 12V/24V/48V | 48V/96V | ||||||||
| Minimum start voltage | 10V/20V/40V | 80V | ||||||||
| Low battery alarm | 10.5V/21V/42V | 84V | ||||||||
| Low battery trip | 10V/20V/40V | 80V | ||||||||
| High voltage alarm | 16V/32V/64V | 128V | ||||||||
| Power saver | Same switched on/off on remote | |||||||||
| Charger mode specification | ||||||||||
| Output voltage | Dependent on battery type | |||||||||
| Charge current | 0-85A MAX | 70/35A | 85/45A | 100/50A | ||||||
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) | |||||||||
| Over charge protection shutdown | 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) | |||||||||
| Charger curves(4stage constant curren) | battery types | |||||||||
| 4 step digital controlled progressive charge | ||||||||||
| Battery type | Fast V Fast V(*2 for 24v;*4 for 48v) | |||||||||
| Gel U.S.A | 14 13.7 | |||||||||
| A.G.M. 1 | 14.1 13.4 | |||||||||
| A.G.M. 2 | 14.6 13.7 | |||||||||
| Sealed lead acid | 14.4 13.6 | |||||||||
| Gel euro | 14.4 13.8 | |||||||||
| Open lead acid | 14.8 13.3 | |||||||||
| Calcium | 15.1 13.6 | |||||||||
| De-sulphation | 15.5 for 4 hrs | |||||||||
| Remote control/RS232/USB | Yes. Optional | |||||||||
| CERTIFICATIONS |
| FAQ |
1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.
.......................................................................................................................................................................................................................................
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
........................................................................................................................................................................................................................................
3.How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
