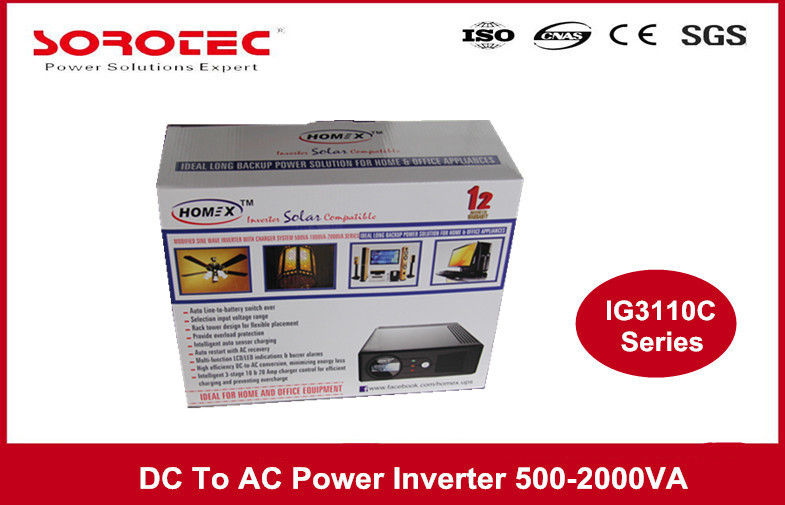

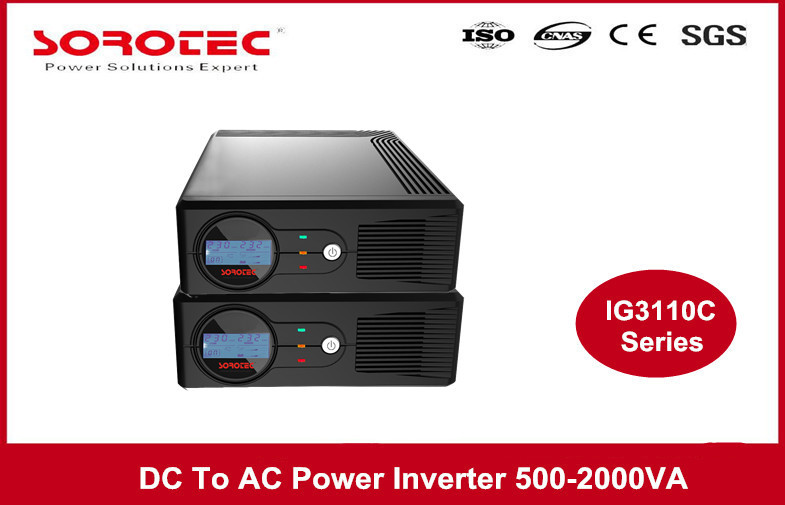

Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Inverter Sample Are Available) | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Inverters | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping for Inverter | Supply Ability : | 10000PCS/Month for Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | IG3110C Series 500 - 2000VA |
|
Detail Information |
|||
| Product Name: | Power Inverters | Power: | 500-2000VA |
|---|---|---|---|
| Wave Form: | Modified Sine Wave Inverters | Power Factor: | 0.6 |
| POWER Convertion: | DC /AC | AC Charger: | 10Amp/20Amp Optional |
| Battery Voltage: | 12V/24V | Design: | Rack-Tower |
| Application: | Home Use | Weight: | 2.0-2.7KG |
| Dimension: | 224*225*80mm | ||
| Highlight: | solar energy inverter,home power inverter |
||
Product Description
LCD Display 500VA 300W 220V 12V 50HZ DC/AC Power Inverter with AC Charger
IG3110C series long back up UPS Built-in with 10Amp charger for up to 100Ah battery,and provide full protection for low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for Thunder striking, provide the reliable power for the Home appliances and office appliances (For example:DVD, Fan, TV etc).
Key Features:
1.500-2000VA DC/AC Power Inverter
2.Modified Sine Wave Inverters
3.Automatically restart&Charging
4.Three-steps intelligent charging control
5.LED& LCD display, audible and visual alarm
6.Rack Tower design,small size and light weight
7.Built-in with 10Amp or 20Amp charger for up to 200Ah batter
Applications:
This type of modified sine wave power inverter/dc to ac inverters/home power inverters/micro inverters,widely used to provide the reliable long time backup power supply for home and office equipments such as:TV,DVD,personal computer,fan.etc
Technical Specifications of LCD UPS inverter IG3110C 500-2000VA
Model |
IG 3110C 500-2000VA |
||||
|
500-12 |
1000-12 |
2000-24 |
1000-24 |
||
|
Capacity |
500VA/300W |
1000VA/600W |
2000VA/1200W |
1000VA/600W |
|
|
Nominal voltage |
220/230/240VAC |
||||
|
Nominal frequency |
50/60Hz |
||||
|
Input |
|||||
|
Voltage Range |
176VAC-280VAC(±3VAC) |
||||
|
Frequency Range |
50/60Hz |
||||
|
Output |
|||||
|
Voltage Regulation |
220/230/240VAC±2% |
||||
|
Frequency Regulation |
50/60Hz+0.1Hz |
||||
|
Wave Form |
Modified sine wave |
||||
|
Switch time |
Standard 2～4ms Typical 6ms |
||||
|
Current |
|||||
|
Charge Current |
10A |
10A |
10A |
6A |
|
|
DC Voltage |
12V |
12V |
24V |
24V |
|
|
Overcharge Protection |
15V |
15V |
30V |
30V |
|
|
Display |
|||||
|
LCD |
UPS Status, Input/output Voltage and Frequency, Load, AC, battery , fault, etc |
||||
|
Operating Environment |
|||||
|
Temperature |
0℃～40℃ |
||||
|
Humidity |
5%～95%(<40℃, no condensation) |
||||
|
Storage Temperature |
-25℃～55℃ |
||||
|
Elevation Noise (within 1 metre) |
Less than 1500 meter |
||||
|
Physical |
|||||
|
Weight(KG) |
Net weight |
2.0 |
2.5 |
2.5 |
2.0 |
|
Gross weight |
2.2 |
2.7 |
2.7 |
2.2 |
|
|
Dimension:WXDXH mm |
224×225×80 |
||||
