50/60HZ Full Automatic and Silent Operation Solar Inverter Built-in PWM Solar Controller

Product Description

50/60HZ Full Automatic and Silent Operation Solar Inverter Built-in PWM Solar Controller

Solar Power Inverter Application

Supply the reliable long back up time power for the household appliances office appliances and solar power systems ect,

SSP3111C series 1-2KVA Off-Grid type Solar Inverter with PWM Solar Charge Controller, Modified Sine Wave output ,output power factor 0.7 ,widely used to provide continous backup power for home and office appliance,solar power system.etc

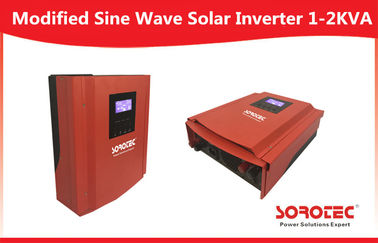

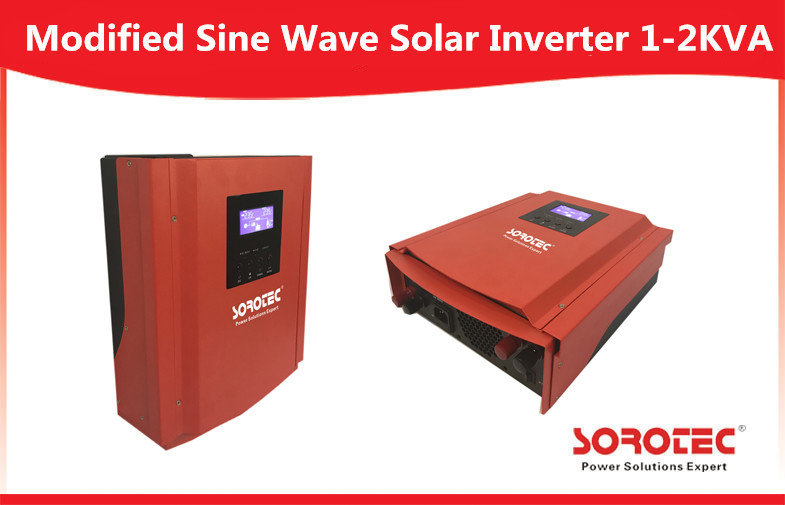

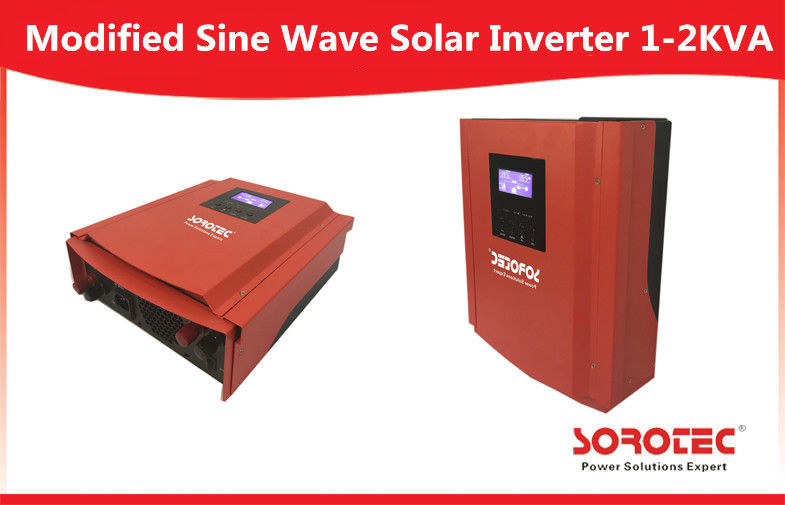

SOROTEC SSP3111C

Solar Power Inverter Product  Brif

SSP3111C series is a multi-function off-grid type solar power inverter for self- consumption,which capacity from 1kva to 2kva,Modified Sine Wave output ,output power factor 0.7 ,built-in with PWM solar charge controller,It power sourcing from Utility,battery ,PV.And supports charging priorities for Utility, PV, Utility & PV.Remote control with RS232/USB,LCD display information in real-times. Eliminate noise protection for thunder striking,widely used to provide the reliable and long time backup power supply for home office appliances and solar power systems.

Solar Power Inverter Key Featurs:

1.Off-Grid Solar Power Inverters

2.Modified Sine Wave Inverter

3.40Amp PWM Solar Controller

4.Optional input voltage range

5.Auto-charging &Auto-restart

6.3-steps intelligent charging control

7.LCD display, audible and visual alarm

8.Priorities optional for PV/Utilities

Solar Power Inverter safety

to circumvent the PID effect of security,the initiative to prevent electric shock and isolation 29db noise,electromagnectic radiation is small,do not affect human health,

No fuse design,avoid fire hazard caused by the failures of dc side.

Natural cooling,IP65 protection class.

The highest level of lightning protection,the built-in ac/dc lightning protection module.

Solar Power Inverter Intelligent management

Three-steps intelligent charging control to recharging.reduce group series of fault location time by 80%.

Built-in PWM solar charge controller.

Multimachine parallel adaptive intelligent power grid,power quality,to better meet the requirements of power grid access.

Support for remote monitoring and network management functions.

Solar Power Inverter Full Protection

Protection for low battery voltage,overload,output short circuit and over-temperature restrain surge interference.eliminate noise,provide the reliabie power to the household appliances.

SSP3111C  1-2KVA Solar Inverter With PWM Solar Controller

                                   Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.

The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

                                        FAQ

1.WHY CHOOSE US ?

QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

.......................................................................................................................................................................


2. How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.

Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................

3. How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.

Notice:

Resistive load: you can choose the same power as the load.

Capacitive loads: according to the load, you can choose 2-5 times power.

Inductive loads: according to the load, you can choose 4-7 times power.
.......................................................................................................................................................................

4. How connection between batteries and an power inverter?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions
.......................................................................................................................................................................

5. How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
