50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Supply Ability : | 1000PCS/Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | IG3115CL |
|
Detail Information |
|||
| Nominal Input Frequency: | 50Hz/ 60Hz | Efficiency On Line Transfer Mode: | ≥95%+ |
|---|---|---|---|
| Nominal Input Voltage: | 12V/24V/48V | Power Factor: | 0.9-1.0 |
| Frequency Range: | 47Hz~65Hz | Nominal Output Voltage Rms: | 230VAC |
| Output Continuos Power Watts: | 3000 | ||
| Highlight: | mppt solar inverter,hybrid pv inverter |
||
Product Description
50Hz/60Hz Output voltage and frequency can be set 4kW Solar Hybrid Inverters
Key Features:
1. Battery type can be select
2. Output voltage and frequency can be set
3. Well accept generator’s output
4.Three-steps intelligent charging control to recharging time
5. Charge current can adjust

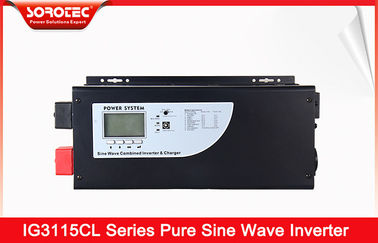

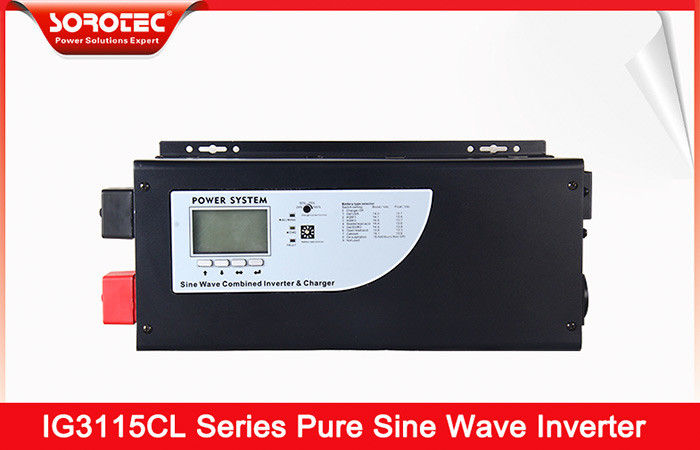

IG3115CL Series Specifications:
| MODEL | IG3115CL 1-6KW Pure Sine wave Output Inverter | ||||||
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Input Wave form | Sine wave (utility or generator) | ||||||
| Nominal Voltage | 230Vac (120Vac optional) | ||||||
| Low voltage trip | 90v ±4% & 184v/154v ±4% | ||||||
| Low voltage re engage | 100v ±4% & 194v/164v±4% | ||||||
| High voltage trip | 140v ±4% & 253v ±4% | ||||||
| High voltage re engage | 135v ±4% & 243v±4% | ||||||
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) | ||||||
| Frequency range | 47Hz~65Hz | ||||||
| Output Wave form | (Bypass mode)same as input | ||||||
| Efficiency on line transfer mode | ≥95%+ | ||||||
| Line transfer time | 10ms Typical | ||||||
| Bypass without battery connected | Yes | ||||||
| Inverter specification/output | |||||||
| Output wave form | Pure sine wave | ||||||
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |

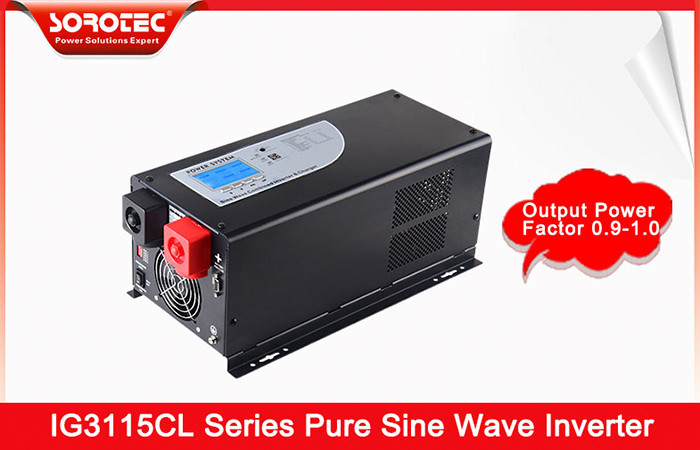

| Power factor | 0.9-1.0 | ||||||
| Nominal Output Voltage rms | 230Vac (120Vac optional) | ||||||
| Output Voltage regulation | +/- 10%rms | ||||||
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz | ||||||
| Safety Certification | >88% | ||||||
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes,fault after 1 secs | ||||||
| Inverter specification/input | |||||||
| Nominal input voltage | 12V/24V/48V | ||||||
| Minimum start voltage | 10V/20V/40V | ||||||
| Low battery alarm | 10.5V/21V/42V | ||||||
| Low battery trip | 10V/20V/40V | ||||||
| High voltage alarm | 16V/32V/64V | ||||||
| Power saver | Same switched on/off on remote | ||||||
| Charger mode specification | |||||||
| Output voltage | Dependent on battery type | ||||||
| Charge current | 0-85A MAX | ||||||
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) | ||||||
| Over charge protection shutdown | 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v) | ||||||
| Charger curves(4stage constant curren) | battery types | ||||||
| 4 step digital controlled progressive charge | |||||||
| Battery type | Fast V Fast V(*2 for 24v;*4 for 48v) | ||||||
| Gel U.S.A | 14.0 13.7 | ||||||
| A.G.M. 1 | 14.1 13.4 | ||||||
| A.G.M. 2 | 14.6 13.7 | ||||||
| Sealed lead acid | 14.4 13.6 | ||||||
| Gel euro | 14.4 13.8 | ||||||
| Open lead acid | 14.8 13.3 | ||||||
| Calcium | 15.1 13.6 | ||||||
| De-sulphation | 15.5 for 4 hrs | ||||||
| Remote control/RS232/USB | Yes. Optional | ||||||
