Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1pcs | Price : | 150-300 USD Per Unit |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC /OEM |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3118C1 1-5KVA |
|
Detail Information |
|||
| Product Name: | Solar Inverter System | Type: | DA/AC Inverters |
|---|---|---|---|
| Capacity: | 5kva /4000w | Output Power Factor: | 0.8 |
| Output Frequency: | 50/60HZ | Output Current: | 40A/60A |
| Application: | Home Use | Size: | 120*295*468mm |
| Weight: | 10Kg | ||
| Highlight: | solar power inverter for home,home power inverter |
||
Product Description

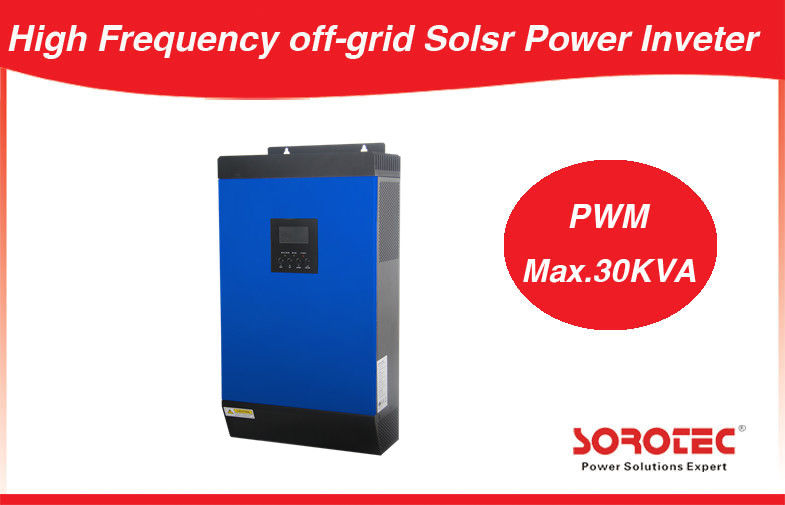

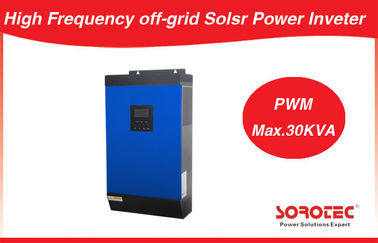

5kVA 48V Off Grid Backup solar powered inverter for 4000W Loads
Key Features
| MODEL | C1 1K-1250 | C1 2K-2450 | C1 3K-2450 | C1 4K-4850 | C1 5K-4850 |
| Rated Power | 1000VA / 800W | 2000VA/1600W | 3000VA / 2400W | 4000VA / 3200W | 5000VA / 4000W |
| INPUT | |||||
| Voltage | 230 VAC | ||||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | ||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5 % | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency (Peak) | 90% | 93% | |||
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | ||||
| Waveform | Pure sine wave | ||||
| BATTERY | |||||
| Battery Voltage | 12 VDC | 24 VDC | 48 VDC | ||
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 54 VDC | ||
| Overcharge Protection | 15.5 VDC | 31 VDC | 60 VDC | ||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 50VDC | 60VDC | 105VDC | ||
| Standby Power Consumption | 1 W | 2 W | 2W | ||
| Maxmum Solar Charge Current | 50A | 50A | 50 A | ||
| Maximum AC Charge Current | 20 A | 30 A | 60 A | ||
| Maximum Charge Current | 50 A | 50 A | 110 A | ||
| PHYSICAL | |||||
| Dimension, D x W x H (mm) | 95 x 240 x 316 | 100 x 272 x 355 | 120 x 295 x 468 | ||
| Net Weight (kgs) | 5 | 6.4 | 6.9 | 9.8 | 9.8 |
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°C - 55°C | ||||
| Storage Temperature | -15°C - 60°C | ||||
Full protection:
Protection for low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.
Applications:
Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.
