Solar Power System High frequency off-grid solar power inverter 1-2KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | 10PCS | Price : | Price Negotiable |
---|---|---|---|
Packaging Details : | Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS per Month for Pure Sine Wave Solar Power Inverters |
Place of Origin: | China | Brand Name: | SOROTEC |
---|---|---|---|
Certification: | CE,ROHS,RSO9000 | Model Number: | SPS3115C 1-6kW |
Detail Information |
|||
Capacity: | 1-6kW | Output Wave Form: | Pure Sine Wave |
---|---|---|---|
Output Continuos Power Watts: | 6000W | Nominal Input Frequency: | 50Hz/ 60Hz (auto Detection) |
High Voltage Reengage: | 135v ±4% & 243v ±4% | High Voltage Trip: | 140v ±4% & 253v ±4% |
Efficiency On Line Transfer Mode: | >95% | ||
Highlight: | solar electric system,solar residential systems |
Product Description

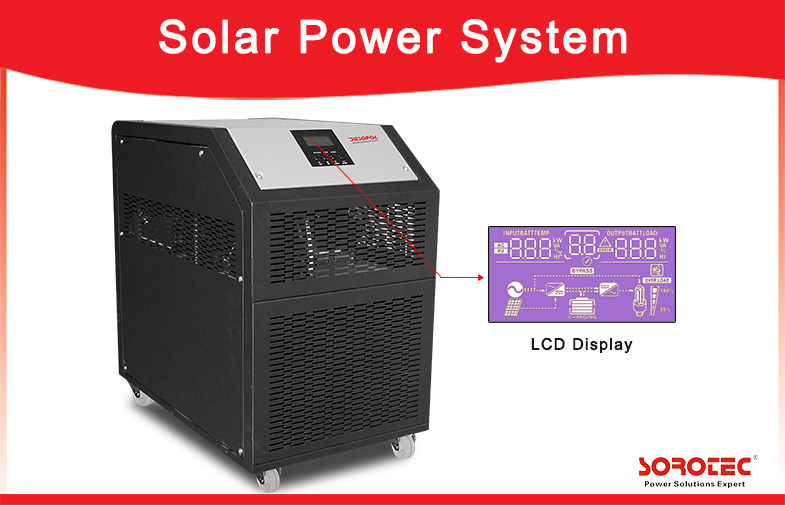

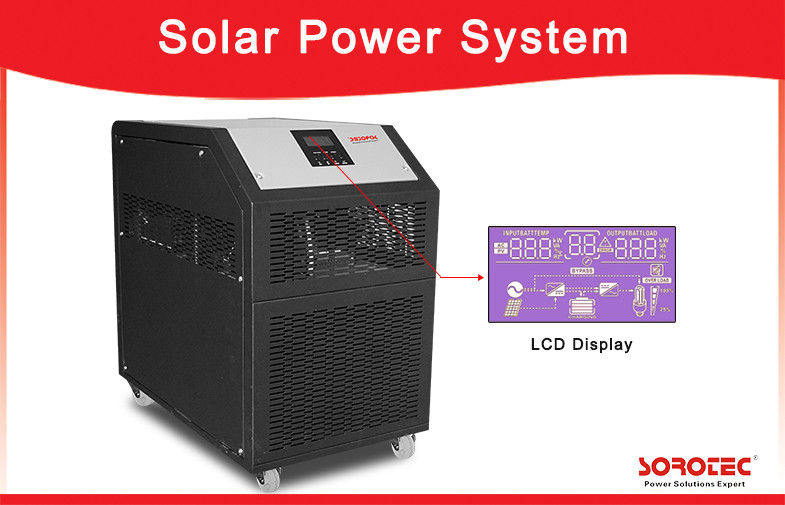

6kW Pure Sine Wave 230VAC 50/60Hz Solar Power Inverter System with LCD Display
Key Features:
1. Built-in battery.
2. Auto restart while AC is recovering.
3. Overload protection.
4. AC/Solar Charge priority can set.
5. Protection degree IP55.
Application:
This solar power system is commonly used in the corner of the city, office, household appliance, oil and gas, video, traffic lights, remote roads, mountains, islands. Suitable for bad environment, such as high temperature (±50°C)/low temperature (-40°C), severe dust, moisture, rain, mist erosion, very poor power quality.
Product Descriptions Of SPS3115C 1-6kW Solar Power Inverter
MODEL | SPS3115C 1-6KW | |||||||
1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||
Input Wave form | Sine wave (utility or generator) | |||||||
Nominal Voltage | 120VAC(option) 230VAC | |||||||
Low voltage trip | 90v ±4% & 184v/154v ±4% | |||||||
Low voltage reengage | 100v ±4% & 194v/164v±4% | |||||||
High voltage trip | 140v ±4% & 253v ±4% | |||||||
High voltage reengage | 135v ±4% & 243v ±4% | |||||||
Nominal input frequency | 50Hz/ 60Hz (auto detection) | |||||||
Frequency range | 47Hz ~ 65Hz | |||||||
Output Wave form | (Bypass mode)same as input | |||||||
Over-Load Protection | Circuit breaker | |||||||
Short circuit Protection | Circuit breaker | |||||||
Efficiency on line transfer mode | >95% | |||||||
Line transfer time | 10ms Typical | |||||||
Bypass without battery connected | Yes | |||||||
Inverter output | ||||||||
Output wave form | Pure sine wave | |||||||
Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | |
Output continuos power VA | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Power factor | 0.9-1.0 | |||||||
Nominal Output Voltage rms | 120VAC(option) 230VAC | |||||||
Output Voltage regulation | +/- 10%rms | |||||||
Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz | |||||||
Short circuit protection | Yes,fault after 1 secs | |||||||
Inverter input | ||||||||
Nominal input voltage | 24V/48V | |||||||
Minimum start voltage | 20V/40V | |||||||
Low battery alarm | 21V/42V | |||||||
Low battery trip | 20V/40V | |||||||
High voltage alarm | 32V/64V | |||||||
Charger | ||||||||
Output voltage | Dependent on battery type | |||||||
Charge current | 10-85A MAX | |||||||
Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v) | |||||||
Over charge protection | 15.7v for 12v(*2 for 24v;*4 for 48v) | |||||||
Solar Charger | ||||||||
MPPT Range @ Operating Voltage | 30-115VDC/60-115VDC | |||||||
Maximum PV Array Open Circuit Voltage | 145VDC | |||||||
Maximum Charging Current | 60A | |||||||
Macimum Effciency | >96% | |||||||
Standby Power Comsumption | 2W |
COMPANY SHOW |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
WHY CHOOSE US ? |
1.QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2.Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
FAQ |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: Shipped in 30 days after payment.
Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
