Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1pcs | Price : | 1-500 USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC /OEM |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3118C2 1-5KVA |
|
Detail Information |
|||
| Model: | Off-Grid Solar Power Inverter | Capacity: | 1kva-5kva |
|---|---|---|---|
| Output Power Factor: | 0.8 | Nominal Frequency: | 50/60hz |
| Capacity Extansion: | 6pcs | Input Voltage: | Selected |
| Solar Charge Controller: | MPPT | Suitable For: | Solar Power System |
| Highlight: | solar power inverter for home,solar energy inverter |
||
Product Description
800W 24V Off Grid Solar Power Inverters / 1Kva pure sine power inverter
Application:
Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.
Key Features
Protection Function:
Low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for thunder striking, provide the reliable power to the household appliances.
Technical Parameter:
| MODEL | C2 1K-2425 | C2 2K-2425 | C2 3K-2425 | C2 4K-4880 | C2 5K-4880 | ||
| Rated Power | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 4KVA/3200W | 5KVA/4000W | ||
| INPUT | |||||||
| Voltage | 230 VAC | ||||||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | ||||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||||||
| OUTPUT | |||||||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | ||||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | ||
| Efficiency (Peak) | 90% | 93% | |||||
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | ||||||
| Waveform | Pure sine wave | ||||||
| BATTERY | |||||||
| Battery Voltage | 24 VDC | 48 VDC | |||||
| Floating Charge Voltage | 27 VDC | 54 VDC | |||||
| Overcharge Protection | 31 VDC | 60 VDC | |||||
| SOLAR CHARGER & AC CHARGER | |||||||
| Maximum PV Array Power | 600W | 600W | 4000W | ||||
| MPPT Range @ Operating Voltage | 30 ~ 66VDC | 30 ~ 66VDC | 60VDC ~115VDC | ||||
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 145 VDC | ||||
| Maximum Solar Charge Current | 25A | 25A | 80A | ||||
| Maximum AC Charge Current | 20A | 30A | 30A | 60 A | |||
| Maximum Charge Current | 25A | 30A | 30A | 140A | |||
| AC charger and solar charger can’t work at the same time. | |||||||
| Maximum Efficiency | 98% | ||||||
| Standby Power Consumption | 2 W | ||||||
| PHYSICAL | |||||||
| Dimension, D x W x H (mm) | 100 x 272 x 355 | 120 x 295 x 468 | |||||
| Net Weight (kgs) | 6.8 | 7.4 | 11.0 | ||||
| OPERATING ENVIRONMENT | |||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||||
| Operating Temperature | 0°C to 55°C | ||||||
| Storage Temperature | -15°C to 60°C | ||||||

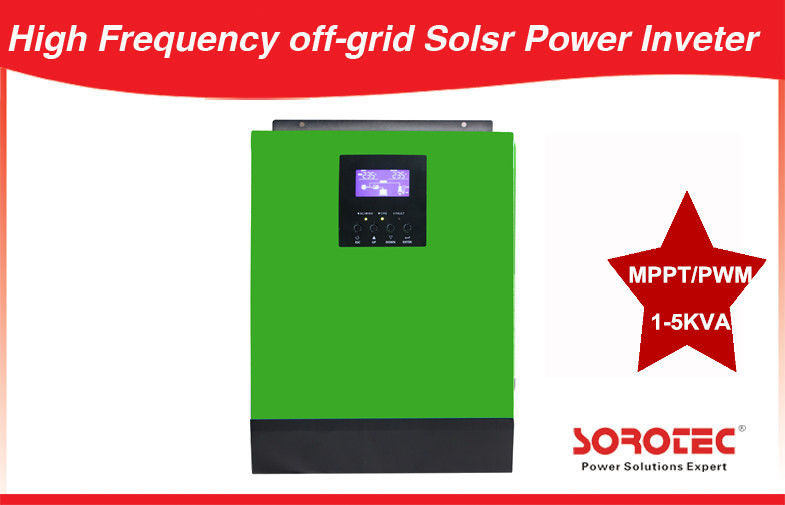

Product Show:
