3 Phase 20KVA / 14KW, 15KVA /10.5KW True online double conversion High Frequency UPS
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS High Frequency Online UPS | Price : | 1-1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for High Frequency Online UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS/Month for High Frequency Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9116C Plus 6-10KVA Online UPS |
|
Detail Information |
|||
| Product Name: | Uninterruptable Power Supply 10KVA | UPS Capacity: | 10KVA/9KW |
|---|---|---|---|
| Power Factor: | 0.9 | Input Voltage: | 120-275VAC |
| Frequency: | 40-70HZ | Battery Voltage: | 192VDC |
| Weight: | 62KG | Dimension: | 248*500*655mm |
| High Light: | pure sine wave ups,high frequency ups |
||
Product Description

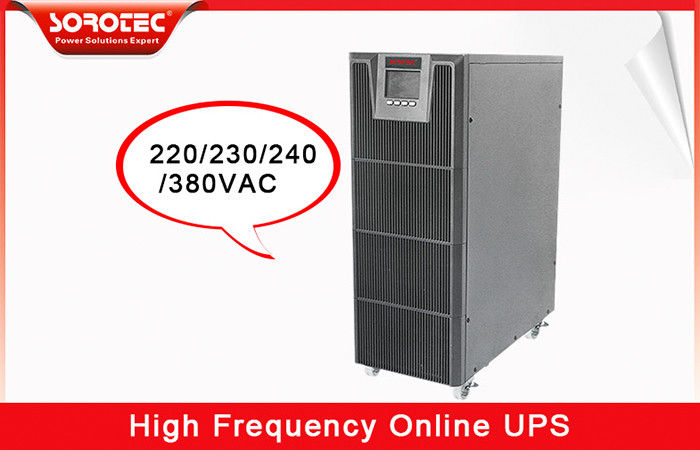

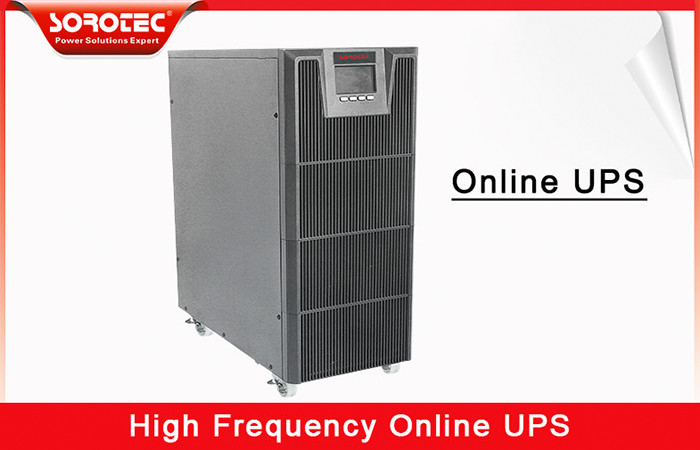

AC - DC - AC Inverter High Frequency Online UPS Uninterruptable Power Supply 10KVA
| Product Name | Uninterruptable Power Supply 10KVA |
| Function | Stable to output and Uninterrupted Power Supply for loads |
| Model | HP9116C PLUS 6-10KVA |
| Output Power Factor | 0.9 |
| Display | LCD display |
| Rated Frequency | 40-70HZ |
| Interface | Smart RS232,SNMP(optional),USB(optional) |
| Advantages | High Efficiency ,Small Size,Light Weight,Low Noise ,Stable to output |
| Applications |
Data centre, bank station, network , communication equipment, office, automatic equipment,monitor equipment,control system
|
| oem/odm produce and sample are available,welcome to inquiry us! | |
Frequency conversion provides more stable output;Select trip technology avoid and isolation system fault;
Flexible extension capacity and redundance management;On line mode provide higher system availability;
High efficiency mode provides more economic operation;Stable parallel control technology support 3 units for parallel working
Battery voltage optional depend on capacity,convenience to get more back up time and lower system invests,Charge current can be adjusted,More discharge time and more capacity battery.
Support 3 phase input or 1 phase input for three phase UPS,Advanced Digital control DSP technology and best power component.Super wide input voltage and frequency range suitable for bad power quality.
Output Power Factor 0.9 that means can take more loads,Three phase input model support three phase PFC,input THDI<5%,Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing1%. Efficiency up to 93.5%when take the 30%load,ECO mode efficiency up to 98%
Technical Parameters of High Frequency Online UPS HP9116C PLUS 6-10KVA
| Model | HP9116C 6-10KVA | ||||||||
| 6KT | 6KT-XL | 10KT | 10KT-XL | ||||||
| Rated Power | 6KVA/5.4KW | 10KVA/9KW | |||||||
| Rated Voltage | 220/230/240VAC | ||||||||
| Rated Frequency | 40-70Hz | ||||||||
| Input | |||||||||
| Voltage Range | 120~275VAC (±3VAC) | ||||||||
| THDi | ＜5% | ||||||||
| Power Factor | ≥0.99 | ||||||||
| Output | |||||||||
| Voltage Regulation | 220±1%VAC | ||||||||
| Frequency Regulation | 50/60 Hz±0.2Hz | ||||||||
| Waveform | Pure sine wave | ||||||||
| Power Factor | 0.9 | ||||||||
| Voltage Distortion | Linear load＜2％ Non-linear load＜4％ | ||||||||
| Overload Capability | 105%~125% for 1 min；125%~150% for 30 s; >150% for 0.5 s | ||||||||
| Efficiency | >94% | ||||||||
| Current Crest Ratio | 3:01 | ||||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||||
| Battery | |||||||||
| DC Voltage | 180VDC | 192/240VDC | 180VDC | 192/240VDC | |||||
| Recharge Time | 5hours to 90% of capacity | ||||||||
| Recharge Current | 1A | 4.2A | 1A | 4.2A | |||||
| Display | |||||||||
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. | ||||||||
| Communication | |||||||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | ||||||||
| Environment | |||||||||
| Operation Temperature | 0~40℃ | ||||||||
| Humidity | 20~90% (Non-condensing) | ||||||||
| Storage Temperature | -25℃~55℃ | ||||||||
| Sea Level Elevation | ＜1500m | ||||||||
| Noise Level (1m) | ＜55dB | ||||||||
| Physics Characteristic | |||||||||
| Weight (KG) |
59 | 14 | 62 | 16 | |||||
| Dimensions: Wx D x H )mm | 248X500X565 | 212X500X420 | 248X500X565 | 212X500X420 | |||||
