50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS Solar Inverter Available | Price : | Negotiable Price |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Solar Inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit for Solar Inverter |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Solar Inverter Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3119C 1000-5000VA Solar Inverter |
|
Detail Information |
|||
| Product Name: | Grid Tied Solar Power Inverters With Battery Pack | Power Supply: | 1KVA-5AKVA |
|---|---|---|---|
| Parallel Function: | 3KVA/4KVA/5KVA | Wave Form: | Pure Sine Wave |
| Application: | Fridge/Air-conditional/computer/solar Power System | Solar Charge Controller: | 80A/120A MPPT |
| Parallel Numbers: | 6Units Max.30kw | ||
| Highlight: | grid hybrid solar power inverter,mppt solar inverter |
||
Product Description

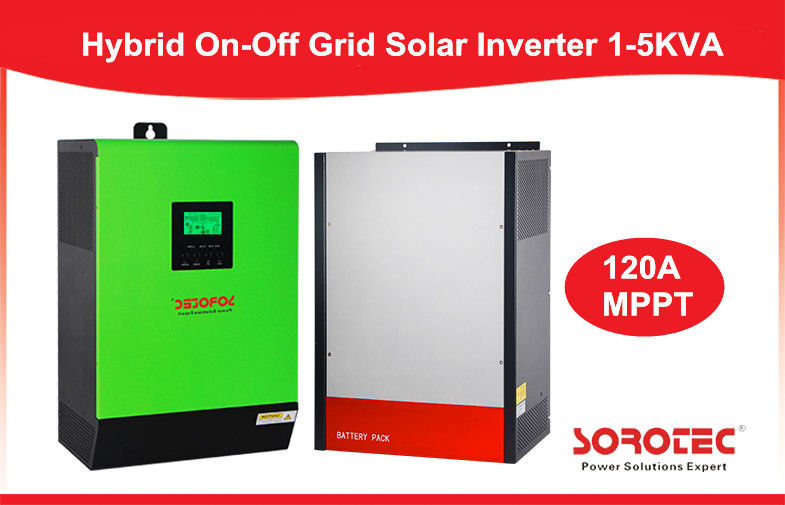

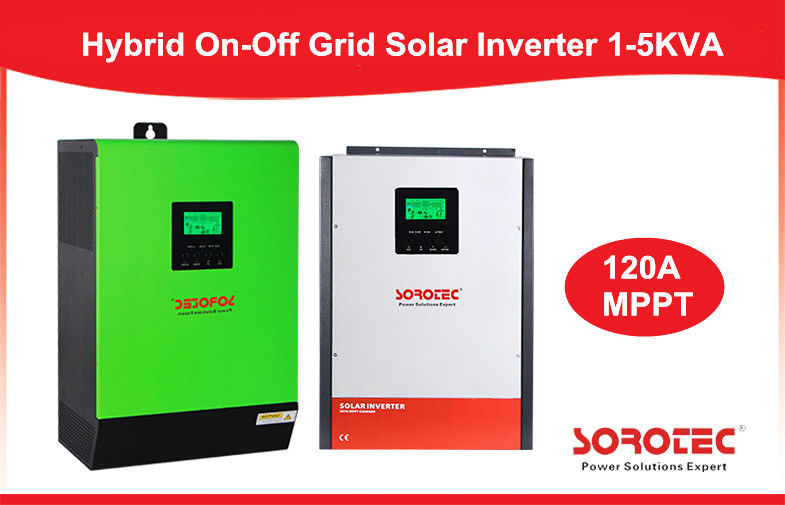

SSP3119C Series 1KVA to 5KVA Grid Tied Solar Power Inverters with Battery Pack
Quick Detailes:
On Grid Inverter,Off Grid Inverter,Hybrid Inverter
High frequency pure sine wave solar inverter
Built-in with 80A /120A MPPT Solar Charge Controller
With Battery Bank/Pack For Energy Storage function
Power Sourcing from Solar System(PV)/ Utility(AC) / Battery
Charging/Discharging Time can be set up as requested
Special for home appliances,office appliances and solar power system
Key Features
1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup
SSP3119C Wall Mounted Integrated Solar Power Inverter TechnicalSpecification
| MODEL | 3K-48 | 4K-48 | 5K-48 |
| Max.PV Array Power | 4000W | 4000W | 6000W |
| Rated Output Power | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC | 145VDC |
| MPPT Range @ Operating Voltage | 60~115VDC | 60~115VDC | 60~115VDC |
| MPPT Tracker Number | 1 | 1 | 2 |
| GRID-TIE OPERATION | |||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-264.5VAC | ||
| Nominal Output Current | 13A | 17A | 21.7A |
| Power Factor | >0.99 | ||
| Efficiency | |||
| Maximum Conversion Efficiency (DC/AC) | 90% | ||
| GRID INPUT | |||
| Accepatable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Frequency Range | 50HZ/60HZ(Auto sensing) | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Waveform | Pure Sine Wave | ||
| Efficiency(DC to AC) | 93% | ||
| BATTERY&CHARGER | |||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charge Current | 80A | 80A | 120A |
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 140A | 140A | 180A |
| INTERFACE | |||
| Parallel Function | Yes | Yes | Yes |
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90%RH (No condensing) | ||
| Operating Temperature | 0 to 50℃ | ||
Protection Function
Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking,provide the reliable power to the home appliances.
Applications
Provide the reliable long backup time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc
