USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1 PCS UPS Available | Price : | 1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Rack Tower UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Rack Tower UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9117C 0.7 - 3KVA Online UPS |
|
Detail Information |
|||
| Product Name: | Continuous Uninterrupted AC Power Supply | UPS System: | 0.7-3KVA |
|---|---|---|---|
| Power Factor: | 0.9 | Wave Form: | Pure Sine Wave |
| Frequency: | 50/60HZ | Flexible Installation: | Rack Or Tower Design |
| Efficiency: | >95% | Input Phase: | 1Ph In/1Ph Out |
| Application: | Networks | ||
| Highlight: | uninterruptable power supply,ups power supply |
||
Product Description
Continuous Uninterrupted AC Power Supply Pure Sine Wave Inverter UPS 0.7-3KVA
Quick Detailes:
| Product Name | Uninterrupted Power Supply(UPS) |
| Function | Provide stable and continuous power supply for connected loads |
| Model | HP9117C Series |
| Capacity | 0.7~3Kva |
| Output Power Facctor | 0.9 |
| Wave Form | Pure Sine Wave |
| Online UPS | High Frequency Online UPS |
| Advantages | High efficiency,low noise,small size and light weight |
| Service | OEM/Logo Customized and Sample are available |
Product Descriptions:
SOROTEC HP9117C series is a type of high frequency online UPS power supply system,which capacity from 0.7kva to 3kva.features with high efficiency low noise small size and light weight,Double-conversion online design and adopts advanced DSP control technology makes the system more reliability,High output power factor 0.9 can take more loads,effixiency>95%.
SOROTEC HP9117C series support replace batteries online, convenient for user to use.Enables prolonged runtime of essential equipment during power outages, Remote shutdown of non-critical systems or processes .Provides installation flexibility with a choice of rack or tower designs.Enhanced monitoring and configuration capability .Prolong the service life of battery system uptime with ABM battery charging technology
SOROTEC HP9117C series widely used to provide reliable and uninterrupted power supply for IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems,Chip fabrication , Pharmaceutical production, Chemical processing,or anywhere critical equipment and appliances require clean,continuous power.
Technical Specifications of Online UPS HP9117C 1-3KVA:
Model |
HP9117C 0.7-3KVA |
||||||||||||||||
|
0.7KT/0.7KR |
1KT-XL/1KR-XL |
2KT/2KR |
2KT-XL/2KR-XL |
3KT/3KR |
3KT-XL/3KR-XL |
||||||||||||
|
Capacity |
0.7KVA/0.63K 1KVA/0.9KW |
2KVA/1.8KW |
3KVA/2.7KW |
||||||||||||||
|
Nominal Voltage |
100/110/120/127VAC or 200/208/220/230/240VAC |
||||||||||||||||
|
Nominal Frequency |
50/60 Hz |
||||||||||||||||
|
Input |
|||||||||||||||||
|
Voltage Range |
60-138VAC or 115-276VAC |
||||||||||||||||
|
Frequency Range |
50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
||||||||||||||||
|
Power Factor |
＞0.98 |
||||||||||||||||
|
Output |
|||||||||||||||||
|
Voltage precision |
100/110/120/127VAC(±2%) or 200/208/220/230/240VAC (±2%) |
||||||||||||||||
|
Frequency precision |
50Hz/60Hz±0.05Hz |
||||||||||||||||
|
Power Factor |
0.9 |
||||||||||||||||
|
Harmonic Distortion |
Linear Load＜3% Non-Linear Load＜5% |
||||||||||||||||
|
Overload capacity |
overload(110%～150%)after 30 seconds automatically transfer to bypass, it recover after normal load |
||||||||||||||||
|
Current Crest Ratio |
3∶1 |
||||||||||||||||
|
Transfer time |
0ms(AC→DC) |
||||||||||||||||
|
Battery |
|||||||||||||||||
|
DC voltage |
36VDC |
96VDC |
96VDC |
||||||||||||||
|
Recharge time |
7 hours to 90% |
||||||||||||||||
|
Charge Current |
1A |
4A/8A(option) |
1A |
4A/8A(option) |
1A |
4A/8A(option) |
|||||||||||
|
Panel Display |
|||||||||||||||||
|
LCD |
UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records |
||||||||||||||||
|
Language |
English, French, German, Russian, Spanish |
||||||||||||||||
|
Communicate |
|||||||||||||||||
|
Communicate interface |
Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port) |
||||||||||||||||
|
Working Environment |
|||||||||||||||||
|
Temperature |
0～40℃ |
||||||||||||||||
|
Relative humidity |
0～95% non-condensing |
||||||||||||||||
|
Storage Temperature |
-25℃～55℃ |
||||||||||||||||
|
Elevation |
＜1500 meter |
||||||||||||||||
|
Noise Level( 1meter) |
＜45dB |
＜45dB |
＜50dB |
||||||||||||||
|
Physics Characteristic |
|||||||||||||||||
|
Net weigh(Kg) |
15 |
16 |
8.5 |
9 |
33 |
10.5 |
16.5 |
11.5 |
34 |
11.5 |
17 |
12.5 |
|||||
|
Gross weight (Kg) |
17.5 |
17.5 |
11 |
11.5 |
35 |
12.5 |
18.5 |
13.5 |
36 |
13.5 |
19 |
14.5 |
|||||
|
Dimension (WXDXH) |
|||||||||||||||||
|
Main unit(Tower) |
200X400X145 |
340X460X192 |
340X460X192 |
||||||||||||||
|
Main unit (Rack mount) |
438X415X80 |
455 X440 X90 |
|||||||||||||||

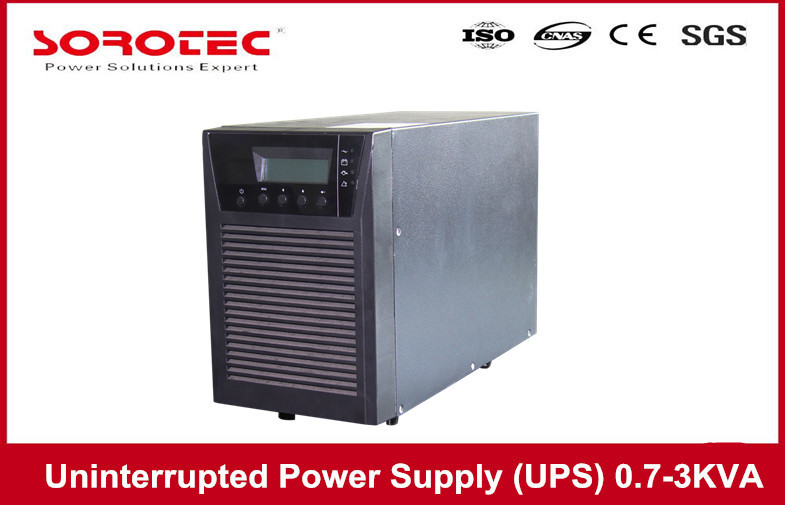

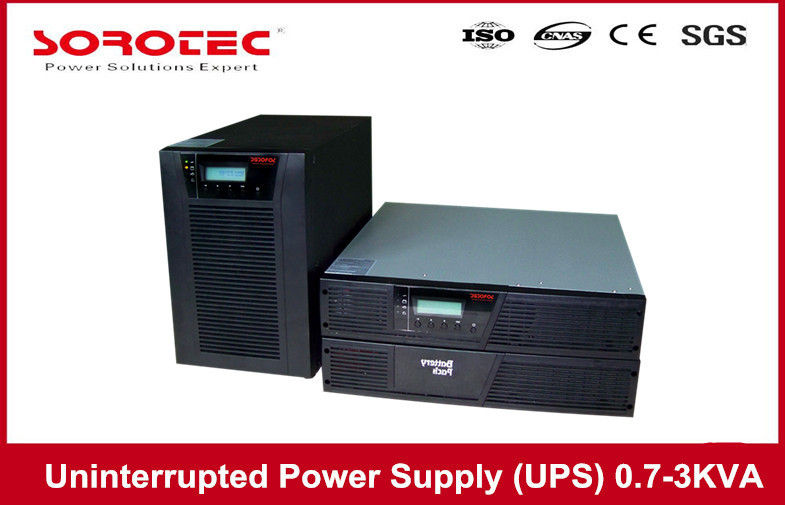

Product Show:
