Modular UPS-High Frequency Online Uninterrupted Power Supply MPS9335C Ⅱ 50-720KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Sample are Available) | Price : | Negotiable Price |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Modular UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | MPS9335C 10 - 300KVA |
|
Detail Information |
|||
| Product: | Modular UPS | Model: | High Frequency Online MPS9335C Series |
|---|---|---|---|
| Design: | N+X Paralle Design | Phase: | 3PH In /3ph Out |
| Online UPS: | Online Capacity Expansion Amd Maintenance | Application: | Industry |
| Transfer Time: | 2ms | Capacity: | 10-1200KVA |
| Power Factor: | 1.0 | Battery Voltage: | ±240VDC |
| Highlight: | ups power,remote control ups |
||
Product Description

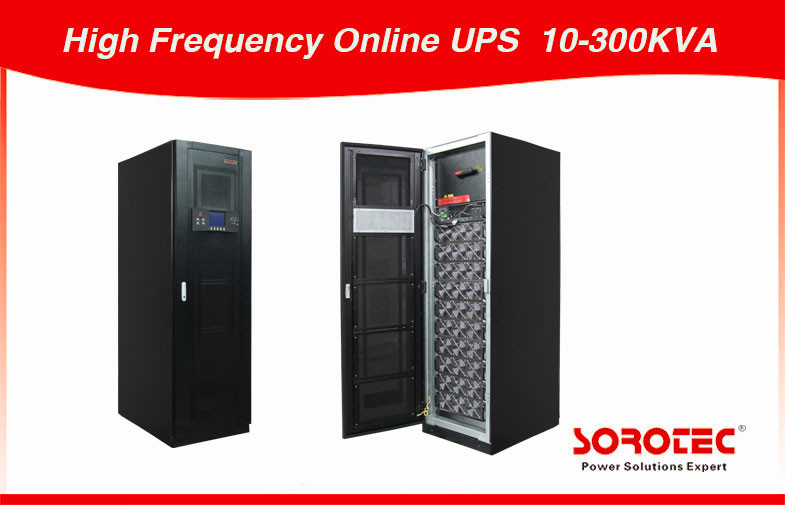

High Frequency Online Modular UPS MPS9335C Can Display 13 Language

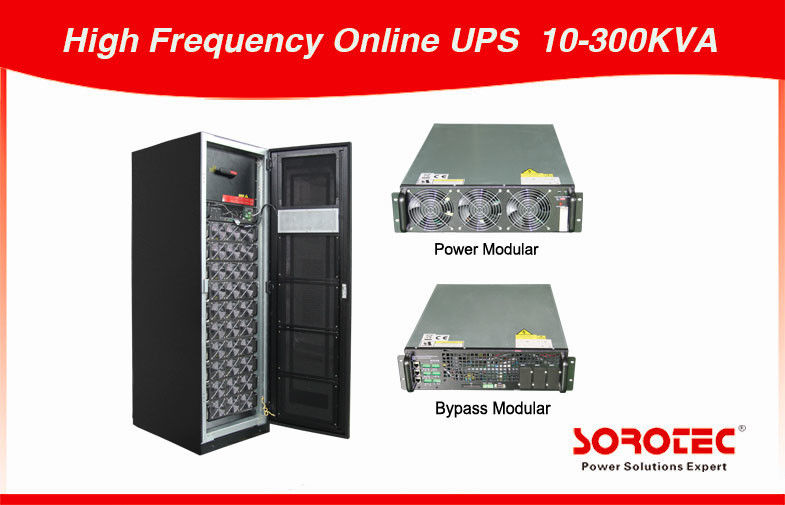

N+X modular design,full upgrade dprotection
MPS9335C series power system structure is extremely flexible ,the concept of power modular designing can be easily removed at runtime and installed without affecting system operation and out,implement investment planning with the need to expand,allowing users to achieve dynamic growth with business development.
It saves customer's costs for initial equipment purchasing and future expansion,when user estimated UPS capacity,ofen underestmated or high expected ,MPS9335C series power can solve the above problem effictively,help user to carry out construction and investment in phase under the condition that future development derection is not clear,when the user want to add load to the UPS,only adding the required number of modules for expansion.
Key Features:
1.Superior energy saving.
2.Easy-to-install,maintain,modify.
3.The number of battery cells can be configured flexibly.
4.Extra large LCD that can display 13 language .
5.Advanced DSP full digital control technologies realize higher system stability.
6.Parallel technology realizes parallel operation of 4UPS units.
7.Intelligent battery management maintains battery automatically to prolong the battery life.
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
|
Model |
MPS9335 10-300KVA | ||
| Capacity | 10-300KVA | ||
| Main input | |||
| Input voltage | 380V/400V/415AC(Optional South America 208v) | ||
| Input Frequency Range | 50/60Hz | ||
| Power Factor | Full load>0.99 ,Half load >0. 98 | ||
| THDi | THDi <3% | ||
| Input power soft-start fantion | 5-30s settable | ||
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% | ||
| Frequency Range | 40-70Hz | ||
| Battery | |||
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose | ||
| Charge Voltage accuracy | ± 1% | ||
| Bypass | |||
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software | ||
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms | ||
| Output | |||
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) | ||
| THDi | THD<1%(linear load), THD<3%(nonlinear load) | ||
| Power Factor | 0.9 | ||
| Three Phase Angle accuracy | 120°c ± 0.5°c | ||
| Current Crest Ratio | 3:1 | ||
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms | ||
| Transfer Time | 0ms,15ms(ECO Mode) | ||
| System | |||
| Frequency | 50Hz/60Hz (Settable) | ||
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz | ||
| Protection Level | IP20 | ||
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port | ||
| System efficiency | > 96% at load above 50%, >95% at load above 25% | ||
| Operation Temperature | 0-40 °c | ||
| Storage Temperature | -25 °c -70 °c (without battery) | ||
| Humidity | 0-95%(no-condensing) | ||
| Noise(dB) | 55-62dB,Adjusted with load | ||
| 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG | |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG | |
| module :PM10 | 10KVA power module :20KG | ||
| Weight | module :PM20 | 20KVA power module :21KG | |
| module :PM30 | 30KVA power module :32KG | ||
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 | |
| 10 module cabinet | 600X2070X850 | ||
| power module | 440X132X660(10KVA/20KVA/30KVA) | ||
