Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS Inverter ( Sample Are Available) | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for solar power inverter system | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | Western Union, T/T, L/C | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C 1-2KVA |
|
Detail Information |
|||
| Product Name: | Solar Power Inverter SSP3111C 1000-2000VA | Capacity: | 1000VA/720W,2000VA/1300W |
|---|---|---|---|
| Wave Form: | Modified | Power Factor: | 0.7 |
| Inside: | 40A PWM | Auto Transfer: | DC -AC |
| Application: | Reneable Energy | ||
| Highlight: | solar power inverter for home,home power inverter |
||
Product Description
High Frequency Solar Power Inverters 1000-2000VA for Home Use
Solar Power Inverter technical specification
Charging: 3-step charging
Nominal Frequency: 50/60HZ
Battery Mode:＞80%
Nominal battery voltage range:12VDC/24VDC
Input Voltage Range: 170-280VAC for narrow range, 90-280vac for wide range
Max.PV input current:40Amp
Nominal Voltage : 220/230/240VAC
Efficiency: >95% (full R load, battery full charged)
Transfer time: 15ms Typical, 40ms Max.
Product Snaphshot
1. High frequency design.
2. Optional input voltage range.
3. Support generator power
4. Three-steps intelligent charging

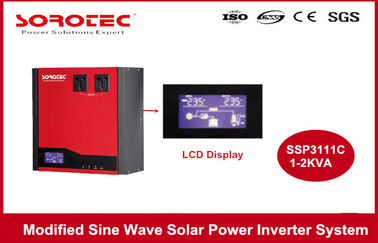

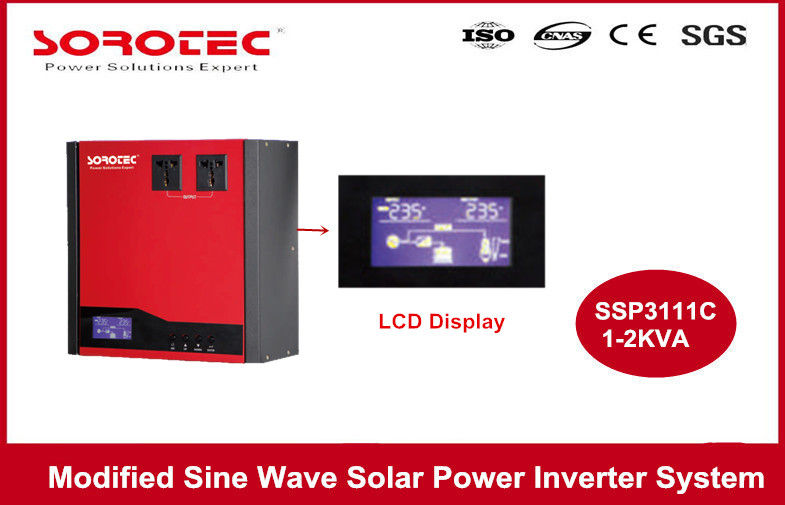

5. LCD display ,overload protection
6. Mains/solar output priority optional
7.Off-Grid solar power inverters
8. Built-in PWM solar charge controller
9. Output power factor is 0.7
10. Buit in with 10 or 20 Amp charger
11.Mains/solar/ mains & solar charging priorities
Product Descriptions of Solar Inverter With PWM Solar Controller
| MODEL | IG3111C 1000-2000VA (without solar controller) | SSP3111C 1000-2000VA (with solar controller) | |||||
| CAPACITY | VA/W | 1000VA/700W | 1200VA/900W | 2000VA/1500W | 1000VA/720W | 2000VA/1300W | |
| NOMINAL BATTERY VOLTAGE | 12VDC | 12VDC | 24VDC | 12VDC | 24VDC | ||
| LINE MODE | |||||||
| INPUT | Nominal Voltage | 230VAC | |||||
| Voltage Range | 170-280VAC (Narrow Range) | ||||||
| 90-280VAC (Wide Range) | |||||||
| OUTPUT | Voltage | 230VAC | |||||
| Frequency | 50Hz or 60Hz | ||||||
| Output Waveform | Following the Utility | ||||||
| EFFICIENCY | >95% (full R load, battery full charged) | ||||||
| TRANSFER TIME | 15ms Typical, 40ms Max. | ||||||
| BACKUP MODE | |||||||
| OUTPUT | Voltage | 230VAC (+10% / -18%) | |||||
| Frequency | 50Hz or 60Hz (Auto detection) | ||||||
| Output Waveform | Modified Sine-wave | ||||||
| EFFICIENCY | >80% | ||||||
| OVERLOAD PROTECTION | 1min@>110%,20s@>120%,0s@>150% | ||||||
| PROTECTION | Discharge, over-charged, over-loading, over-temperature, short-circuit protection | ||||||
| BATTERY CHARGER (powered by AC) | |||||||
| CHARGING ALGORITHM | 3-step charging | ||||||
| AC CHARGING MODE | 15 Ampor 20Amp Selectable | 10Amp | 15 Ampor 20Amp Selectable | 10Amp | |||
| FLOATING CHARGING VOLTAGE | 13.7V | 27.4V | 13.7V | 27.4V | |||
| OVERCHARGING VOLTAGE | 16V | 32V | 16V | 32V | |||
| SOLAR BATTERY CHARGER | |||||||
| MAX. INPUT POWER | Non | 450W | 900W | ||||
| CHARGING CURRENT | Non | 40Amp | |||||
| NOMINAL BATERY VOLTAGE | Non | 12V | 24V | ||||
| OPTIMAL WORK VOLTAGE RANGE | Non | 15V~18V | 30V~36V | ||||
| MAX. PV INPUT VOLTAGE | Non | 55V | |||||
| MAX. PV INPUT CURRENT | Non | 40 Amp | |||||
| GENERAL | |||||||
| PHYSICAL | Dimension (DxWxH) | 275mm*226mm*85mm | |||||
| Net Weight (kg) | 2.05 | 2.15 | 2.2 | 2.62 | 2.76 | ||
| ENVIRONMENT | Operating Environment | 0- 50°C, 5%-90 % relative humidity (non-condensing) | |||||
| StorageEnvironment | -15°C to 55°C, 5% to 95% humidity (non-condensing) | ||||||
| Noise Level | Less than 50dB | ||||||
