Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | 1PCS Inverter ( Sample Are Available) | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Standard Exported Cartons and Pallets for Power Inverters | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
Payment Terms : | 30% TT in advance, the balance before shipping | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
Place of Origin: | Guangdong (Mainland), China | Brand Name: | SOROTEC |
---|---|---|---|
Certification: | CE,ROHS,ISO9000,ISO14000 | Model Number: | IG3117C 3000-5000VA |
Detail Information |
|||
Product Name: | Off Grid Power Inverter | Capacity: | 3-5KVA |
---|---|---|---|
Wave Form: | Pure Sine Wave | Output Power Factor: | 0.8 |
Application: | Home Equipments | Frequency: | 50/60HZ |
Convertion: | DC To AC | Dispaly: | LCD Display |
Power Supply: | Utility/Generator | ||
Highlight: | solar power inverter for home,solar energy inverter |
Product Description

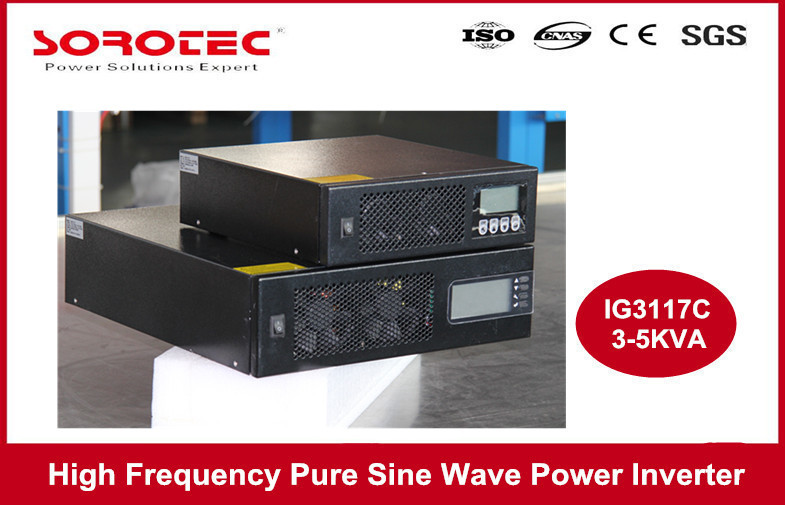

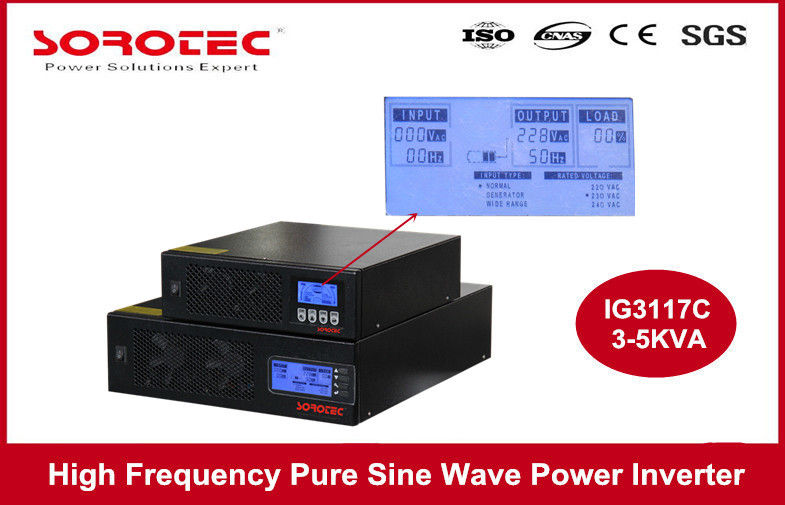

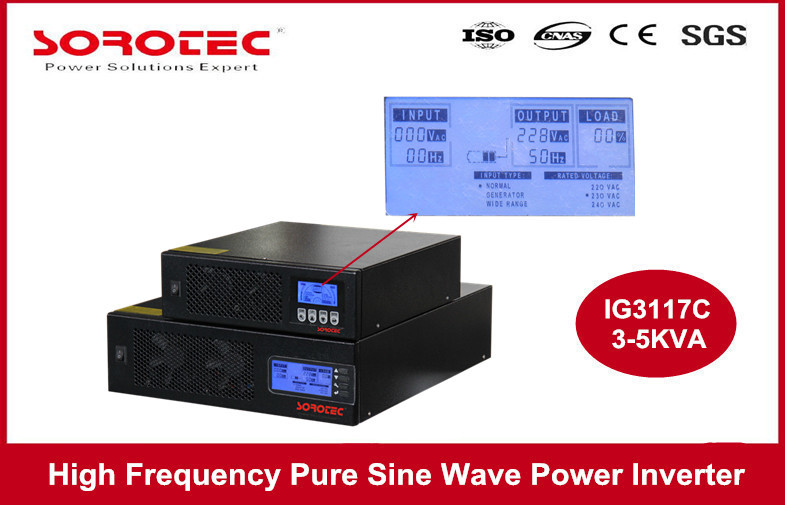

3000VA 2400W 24V High Frequency Pure Sine Wave Power Inverter with CE Certifications
Quick Detailes:
High frequency pure sine wave power inverter special for home use,high efficiency,small size and light weight,3000VA/2400W,5000VA/4000W,Nominal voltage 230VAC.LCD Display,Standard Output power factor 0.8
Key Features:
1. High Efficiency 98% Pure Sine Wave Inverter
2.High frequency switching technology
3.High efficient DC to AC conversion minimizing energy loss
4.Supporting home appliance/ office / Lighting Equipments
5. Support generator power input
6.Support Wide/Narrow input voltage range
7.Shortest transfer time from AC to DC
Technical Specifications:
MODEL | IG3117C 3000VA-5000VA | ||||||||
Capacity | 3000VA/2400W | 5000VA/4000W | |||||||
Nominal Voltage | 230VAC | ||||||||
Nominal Frequency | 50HZ/60Hz | ||||||||
Input | |||||||||
Voltage Range | 170VAC ~270VAC(Normal range) | ||||||||
91~284VAC(generator/wide range) | |||||||||
Frequency range | 40HZ±1Hz ~65Hz±1Hz | ||||||||
Output | |||||||||
Voltage Regulation | 230VAC±10% | ||||||||
Frequency Regulation | 50HZ/60Hz±1Hz(Auto detection) | ||||||||
Wave Form | Pure sine wave | ||||||||
Power Factor | 0.8 | ||||||||
Efficiency | ≥90%(battery mode) | ||||||||
≥98%(line mode) | |||||||||
Over-load Protection | At 110%-150% Load For 10s | ||||||||
Load >150% For 5s | |||||||||
Surge Rating | 10000VA | ||||||||
Transfer time | 10ms | ||||||||
Battery | |||||||||
DC voltage | 24Vor48vdc | 48Vor96vdc | |||||||
Nominal charge current | 20A(95-175V,gen/wide,only) | ||||||||
20/35A(Optional) | |||||||||
Overcharge protection | Bat. V≥60Vdc,Fault, Buzzer alarm | ||||||||
Safety & Working Environment | |||||||||
Safety Certification | CE(EN60950) | ||||||||
EMI Classification | EN62040-2, CLASS A | ||||||||
Operating Temperature Range | 0℃ to 45℃ | ||||||||
Storage temperature | –15℃ to 60℃ | ||||||||
Altitude | 0 - 1500 Meters | ||||||||
Relative humidity | 5% to 95% non-condensing | ||||||||
Audible noise | 60dB max | ||||||||
Cooling | Forced air , variable speed fan | ||||||||
Dimension | 350*110*407 | 350*110*407 | |||||||
Weight | 8KG | 9KG |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
