SHW48500 Hybrid Solar System MCU Microprocessor Control For Power Plants
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 3000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | SHW48100 |
|
Detail Information |
|||
| Nominal Battery Voltage: | 42-58VDC | Maximum Efficiency: | 98% |
|---|---|---|---|
| Overcharge Protection: | Yes | Voltage Range: | 42-58V |
| Rated Output Current: | 0-50A | Rated Output Voltage: | 48V |
| Highlight: | telecom dc power systems,solar system for telecom tower |
||
Product Description

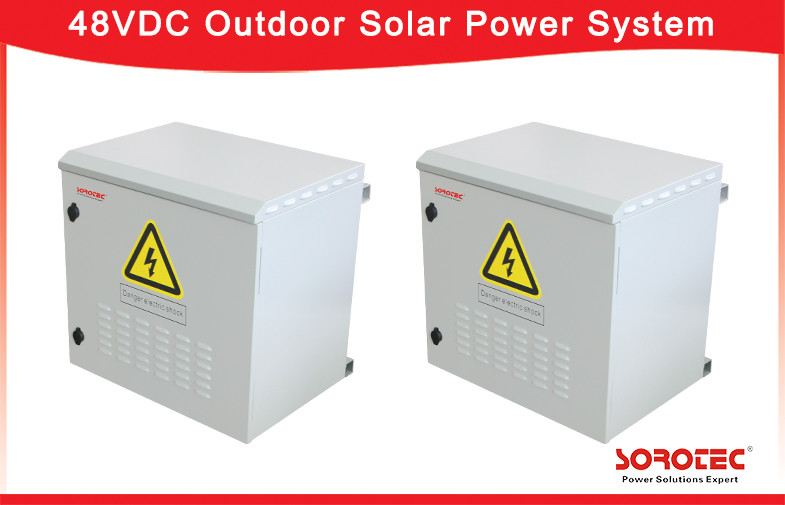

Hot Swappable 48VDC Outdoor Solar Power System with Protection Degree IP55
Key Features:
1.Reversed current protection at night, over voltage and reverse polarity protection.
2.Capable of selecting different charging mode for various types of batteries.
3.Protection Degree: IP55.
4.Suitable for outdoor installation.
5.Adopt advanced MCU microprocessor control technology.
6.Hot Swappable Easy to Maintance.
7.Smart Monitor Control System.
8.Advanced MPPT Technology, High converting efficiency higher than 97% for minimizing energy loss.
Application:
Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC system. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.
Product Show:
Fine dust-proof, water-proof features
According to the overall standard of design dust-proof a n d w ater-proof Ip55
1.With sun protection,heat insulation,roof ventilation
2.With waterproof and the filtration dust inlet, the cabinet front door shutters withw a terproof design.
Product Descriptions:
| SHW48100 Solar System | Rectifier Module(1-2) MPPT Solar Charge Controller(1-2) |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 50A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range | 90-290V |
| AC input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |
