HP9335C Plus High Frequency Online UPS , Data Centre Stable power supply ups

Product Description

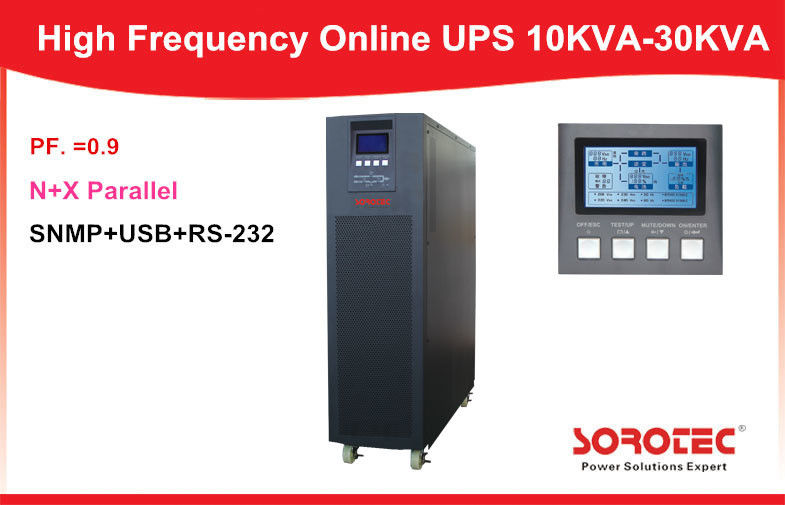

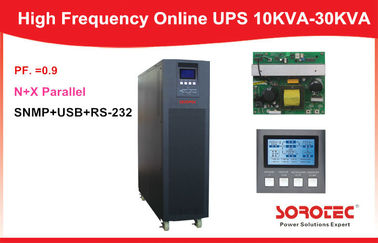

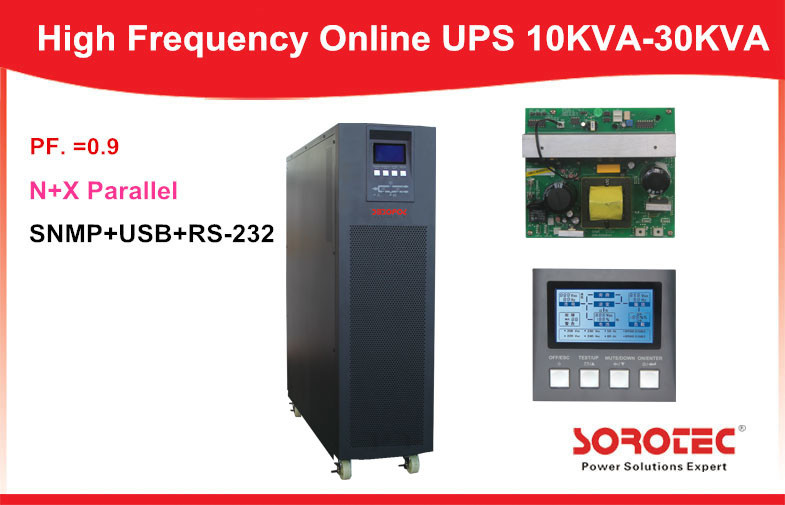

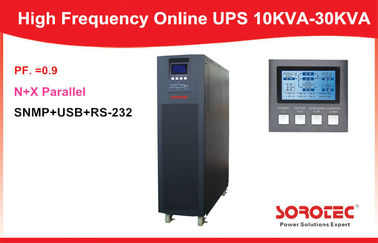

HP9335C Plus High Frequency Online UPS , Data Centre Stable power supply ups

HP9335C Plus Series UPS represents the best solution that is both cost effective and environmental friendly,It
delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,
guaranteeing reliable and flexible power.

Key Features:

• Generator Input Available
• Accepts dual-mains inputs
• Adjustable battery numbers
• Maintenance bypass available
• 50Hz/60Hz frequency converter mode
• Output power factor 0.9
• True double-conversion
• Optional N+X parallel redundancy
• Optional isolation transformer offers full isolation
• Wide input voltage range (110-300 VAC)
• ECO mode operation for energy saving
• Emergency power off function (EPO)
• Active power factor correction in all phases
• DSP technology guarantees high performance
• SNMP+USB+RS-232 multiple communications
• 3-stage extendable charging design for optimized battery performance



Technical Parameters

MODEL		HP9335C Plus 10-30KVA
		10K	10K-XL	15K	15K-XL	20K	20K-XL	30K	30K-XL
CAPACITY		10KVA / 9KW		15KVA / 13.5KW		20KVA / 18KW		30KVA / 27KW
PHASE		3 Phase with Neutral
INPUT
Voltage Range	Low Line Loss	110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
	Low Line Comeback	Low Line Loss Voltage + 10V
	High Line Loss	300 VAC(Ph-N) ± 3 %
	High Line Comeback	High Line Loss Voltage - 10V
Phase		Three phase with ground
Power Factor		≥ 0.99 at 100% Load
OUTPUT
Output voltage		208/220/230/240VAC(Ph-N)
AC Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload	AC mode	100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
	Battery mode	100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio		3:1 max
Harmonic Distortion		≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time	Line←→Battery	0 ms
	Inverte←→Bypass	0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
	Line←→ECO	<10 ms
EFFICIENCY
AC mode		> 89%		> 89%		> 89%		> 90%
Battery Mode		> 86%		> 88%		> 87%		> 89%
BATTERY
Standard Model	Type	12 V / 9 Ah		12 V / 9 Ah		12 V / 9 Ah		12 V / 9 Ah
	Numbers	20(18-20 adjustable)		2 x 20(18-20 adjustable)		2 x 20(18-20 adjustable)		3 x 20(18-20 adjustable)
	Recharge Time	9 hours recover to 90% capacity
	Charging Current	1.0 A ± 10% (max.)		2.0 A ± 10% (max.)		2.0 A ± 10% (max.)		4.0 A ± 10% (max.)
	Charging Voltage	273 VDC ± 1%
Long-run Model	Type	Depending on applications
	Numbers	18-20
	Charging Current	4.0 A ± 10% (max.)		4.0 A ± 10% (max.)		4.0 A ± 10% (max.)		12.0 A ± 10% (max.)
	Charging Voltage	273 VDC ± 1%
PHYSICAL
Standard Model	Dimension,DxWxH(mm)	832 X250X894						832 X250X1275
Long-run Model	Dimension,DxWxH(mm)	609 X250X768						832 X250X828
ENVIRONMENT
Operation Temperature		0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity		<95 % and non-condensing
Operation Altitude		<1000m
Acoustic Noise Level		Less than 58dB @ 1 Meter				Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB		Power management from SNMP manager and web browser
