50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS | Price : | 200-1000 |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3119C 1000-5000VA |
|
Detail Information |
|||
| Model: | On / Off Grid Hybrid Solar Inverter System | Power: | 2KVA/2000W |
|---|---|---|---|
| Power Factor: | 0.9 | Battery Voltage: | 24VDC |
| Input Voltage: | 90-280VAC / 170-280VAC | Output Voltage: | 220/230/240VAC |
| Frequency: | 50/60HZ (Auto-sensing) | Application: | Personal Computer |
| Controller: | 80A MPPT | Color: | White Or Green |
| Highlight: | grid hybrid solar power inverter,mppt solar inverter |
||
Product Description
Hybrid off grid inverter 2KVA 2KW 24V with 80A MPPT Controller
| Product | On-Off Hybrid Solar Inverter with Energy Storage |
| Model | SSP3119C |
| Color | White |
| Output Power | 2Kva/2000w |
| Power Factor | 0.9 |
| Parallel Working | Not Have |
| Controller | 80Amp mppt Solar Charge Controller |
Key Features:
1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup
Safety Protection:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.
Energy-Saving and Green for Environment:
Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc
SSP3119C On and Off Grid Hybrid Solar Power Inverter technical specifications:
| MODEL | 3K-48 | 4K-48 | 5K-48 |
| Max.PV Array Power | 4000W | 4000W | 6000W |
| Rated Output Power | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC | 145VDC |
| MPPT Range @ Operating Voltage | 60~115VDC | 60~115VDC | 60~115VDC |
| MPPT Tracker Number | 1 | 1 | 2 |
| GRID-TIE OPERATION | |||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-264.5VAC | ||
| Nominal Output Current | 13A | 17A | 21.7A |
| Power Factor | >0.99 | ||
| Efficiency | |||
| Maximum Conversion Efficiency (DC/AC) | 90% | ||
| GRID INPUT | |||
| Accepatable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Frequency Range | 50HZ/60HZ(Auto sensing) | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Waveform | Pure Sine Wave | ||
| Efficiency(DC to AC) | 93% | ||
| BATTERY&CHARGER | |||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charge Current | 80A | 80A | 120A |
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 140A | 140A | 180A |
| INTERFACE | |||
| Parallel Function | Yes | Yes | Yes |
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90%RH (No condensing) | ||
| Operating Temperature | 0 to 50℃ | ||

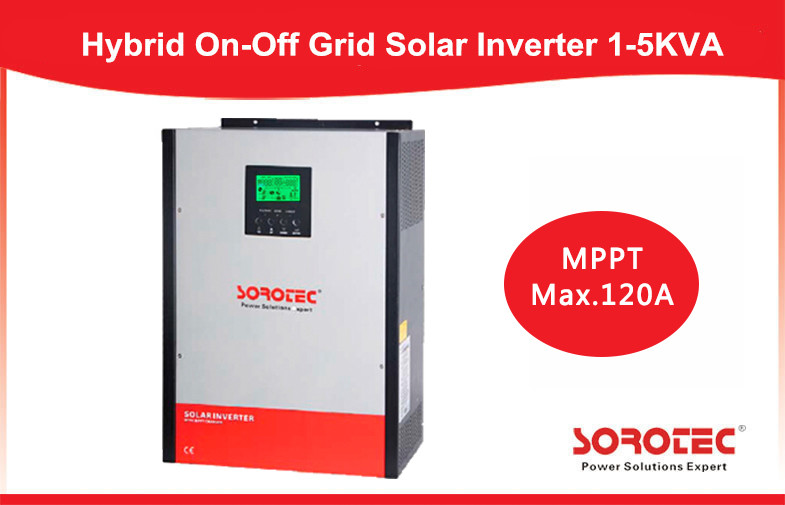

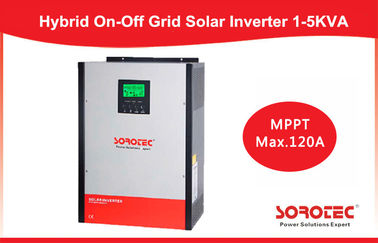

Product Picture Show:
