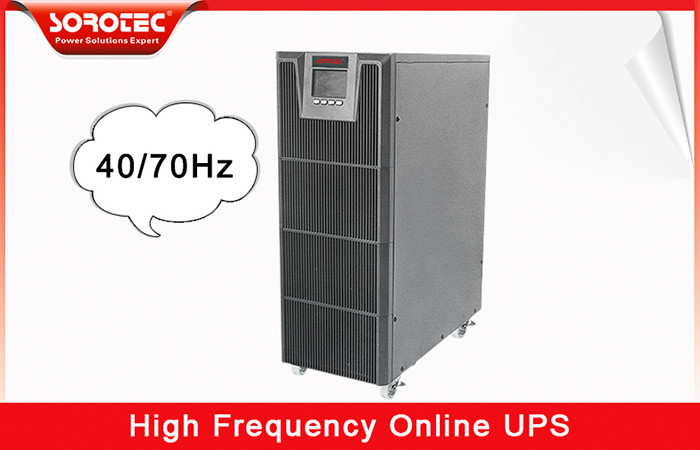

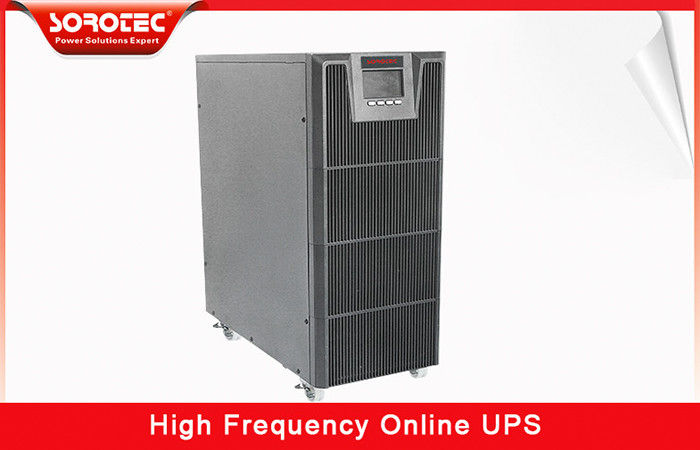

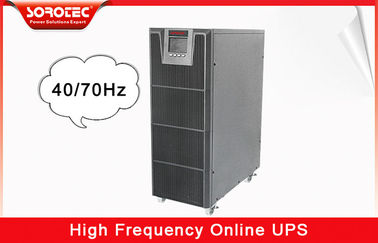

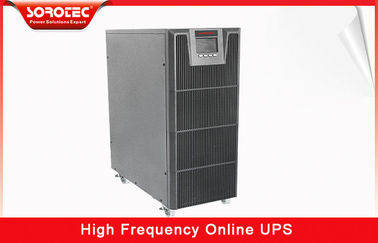

Intelligent Battery Monitors HP9116c Plus High Frequency Online UPS

Product Description

Intelligent Battery Monitors HP9116c Plus High Frequency Online UPS

Product  Introduction

1Ph in/1Ph out online UPS adopt advanced three-level inverter and stable parallel control technology to provide reliable power supply for data centre, telecom, industry,medical and so on precision equipment.

Typical Application

Data centre,bank station,network,communication equipment,office ,automatic equipment,monitor equipment,control system.

Higher Function

Output power factor up to 0.9

Output power factor is 0.9 that mean can take more load ,if you take same load that can get

higher reliability.

Input power factors up to 0.99

Three phase input model support three phase PFC,input THDI＜5%

Output voltage regulation 1% frequency regulation 0.1%,parallel current sharing 1%

Multifunction friendly design

Advanced parallel technology

1.Stable parallel control technology make sure current sharing to 1%

2.Select trip technology can avoid and isolation system fault then improved system availability

3.Flexible extension capacity and redundance management that can satisfy all kinds of requirements

4.Support maximum 3 units for parallel working

Flexible strategy

5.On line mode provides higher system availability

6.High efficiency mode provides more economic operation

7.Frequency conversion provides more stable output

Technical Specifications of Online UPS HP9116C PLUS 6-10KVA
