USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2 | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T, |
| Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9335C Plus 10-30 KVA |
|
Detail Information |
|||
| Product Name: | High Frequency Online UPS | Capacity: | 10-30kva |
|---|---|---|---|
| Output Voltage: | 208/220/230/240VAC(Ph-N) | Transfer Time: | 0ms |
| Current Crest Ratio: | 3:1 Max | Operation Humidity: | <95 % And Non-condensing |
| Phase: | Three Phase With Ground | Color: | Black Color |
| Output Power Factor: | 0.9 | ||
| Highlight: | backup power supply,ups power supply |
||
Product Description

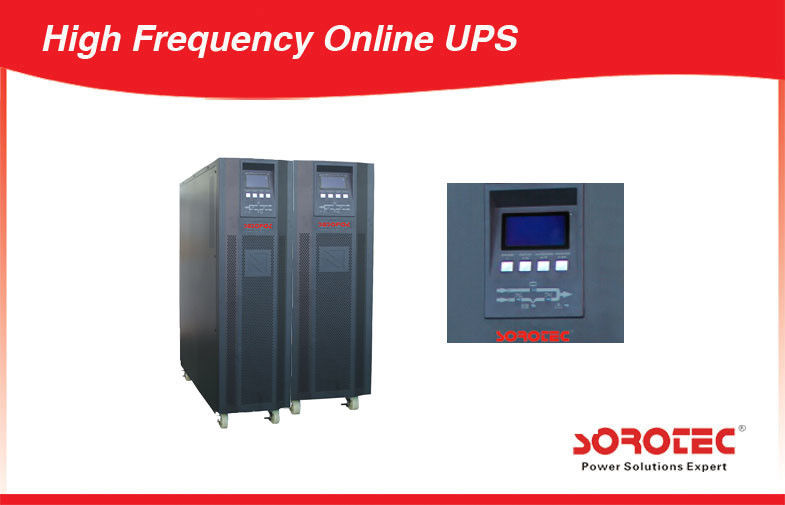

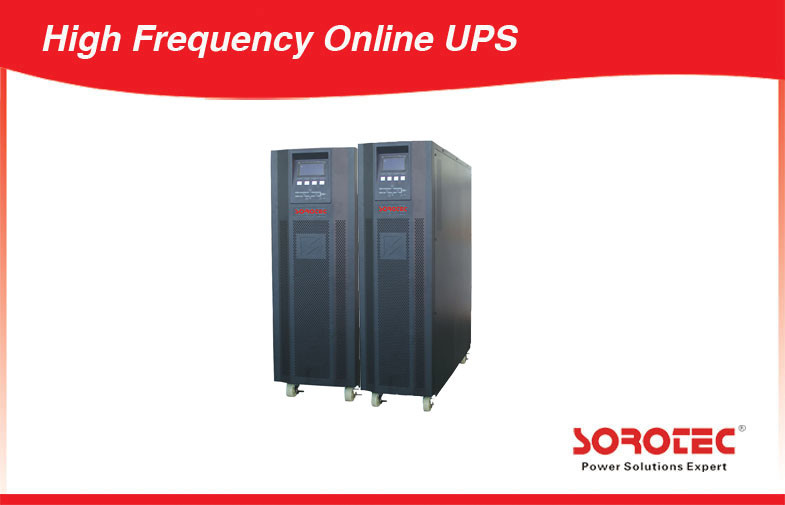

10kVA 20kVA 30kVA High Frequency Online UPS Power Supply with 12V 9ah Battery
Description
Model :10-30KVA
Capacity :10KVA/9KW
Output voltage:208/220/230/240VAC
Input power factor: ＞0.9
Phase:Three phase input/three phase output
SNMP+USB+RS-232 multiple communications.
Key Features
1.DSP technology guarantees high performance.
2.Emergency power off function(EPO)
3.generator compatible
4. True double-conversion
5. 3-stage extendable charging design for optimized battery performance
6. ECO mode operation for energy saving
5. Adjustable battery numbers,Maintenance bypass available.
Reduce the investment cost saving valuable space
HP9335C Plus Series UPS represents the best solution that is both cost effective and environmental friendly,It delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.
Technical Parameters
| MODEL | HP9335C Plus 10KVA | ||||||||
| 10K | 10K-XL | ||||||||
| CAPACITY | 10KVA / 9KW | ||||||||
| PHASE | 3 Phase with Neutral | ||||||||
| INPUT | |||||||||
| Voltage Range | Low Line Loss | 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load | |||||||
| Low Line Comeback | Low Line Loss Voltage + 10V | ||||||||
| High Line Loss | 300 VAC(Ph-N) ± 3 % | ||||||||
| High Line Comeback | High Line Loss Voltage - 10V | ||||||||
| Phase | Three phase with ground | ||||||||
| Power Factor | ≥ 0.99 at 100% Load | ||||||||
| OUTPUT | |||||||||
| Output voltage | 208/220/230/240VAC(Ph-N) | ||||||||
| AC Voltage Regulation | ± 1% | ||||||||
| Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system | ||||||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | ||||||||
| Overload | AC mode | 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec | |||||||
| Battery mode | 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec | ||||||||
| Current Crest Ratio | 3:1 max | ||||||||
| Harmonic Distortion | ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load | ||||||||
| Transfer Time | Line←→Battery | 0 ms | |||||||
| Inverte←→Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) | ||||||||
| Line←→ECO | <10 ms | ||||||||
| EFFICIENCY | |||||||||
| AC mode | > 89% | > 89% | > 89% | > 90% | |||||
| Battery Mode | > 86% | > 88% | > 87% | > 89% | |||||
| BATTERY | |||||||||
| Standard Model | Type |
12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | ||||
| Numbers | 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 3 x 20(18-20 adjustable) | |||||
| Recharge Time | 9 hours recover to 90% capacity | ||||||||
| Charging Current | 1.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | |||||
| Charging Voltage | 273 VDC ± 1% | ||||||||
| Long-run Model | Type | Depending on applications | |||||||
| Numbers | 18-20 | ||||||||
| Charging Current | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 12.0 A ± 10% (max.) | |||||
| Charging Voltage | 273 VDC ± 1% | ||||||||
| PHYSICAL | |||||||||
| Standard Model | Dimension,DxWxH(mm) | 832 X250X894 | 832 X250X1275 | ||||||
| Long-run Model | Dimension,DxWxH(mm) | 609 X250X768 | 832 X250X828 | ||||||
| ENVIRONMENT | |||||||||
| Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) | ||||||||
| Operation Humidity | <95 % and non-condensing | ||||||||
| Operation Altitude | <1000m | ||||||||
| Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | |||||||
| MANAGEMENT | |||||||||
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | ||||||||
| USB | Power management from SNMP manager and web browser | ||||||||
