Home ProductsOff Grid Solar Power SystemsLow Frequency 3kW 230VAC Solar Power Inverter With 60A MPPT Solar Charge Controller

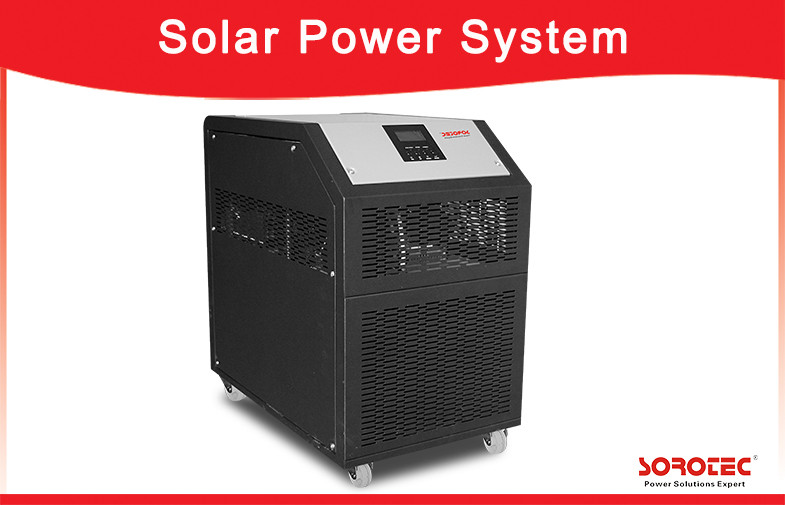

Low Frequency 3kW 230VAC Solar Power Inverter With 60A MPPT Solar Charge Controller
Low Frequency 3kW 230VAC Solar Power Inverter With 60A MPPT Solar Charge Controller Low Frequency 3kW 230VAC Solar Power Inverter With 60A MPPT Solar Charge Controller
Contact Now

Low Frequency 3kW 230VAC Solar Power Inverter With 60A MPPT Solar Charge Controller

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS per Month for Pure Sine Wave Solar Power Inverters
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SPS3115C 1-6kW

Detail Information
Capacity: 1-6kW Nominal Voltage: 120VAC(option) 230VAC
Low Voltage Trip: 90v ±4% & 184v/154v ±4% Low Voltage Reengage: 100v ±4% & 194v/164v±4%
Frequency Fange: 47Hz ~ 65Hz Maximum Charging Current: 60A
Highlight:

solar electric system

,

solar residential systems

Product Description

Low Frequency 3kW 230VAC Solar Power Inverter with 60A MPPT Solar Charge Controller


Key Features:



1. Pure sine wave inverter.



2. Built-in MPPT solar charge controller.



3. Configurable input voltage range for household appliances and personal and personal computer via LCD setting.



4. AC/Solar Charge priority can set.

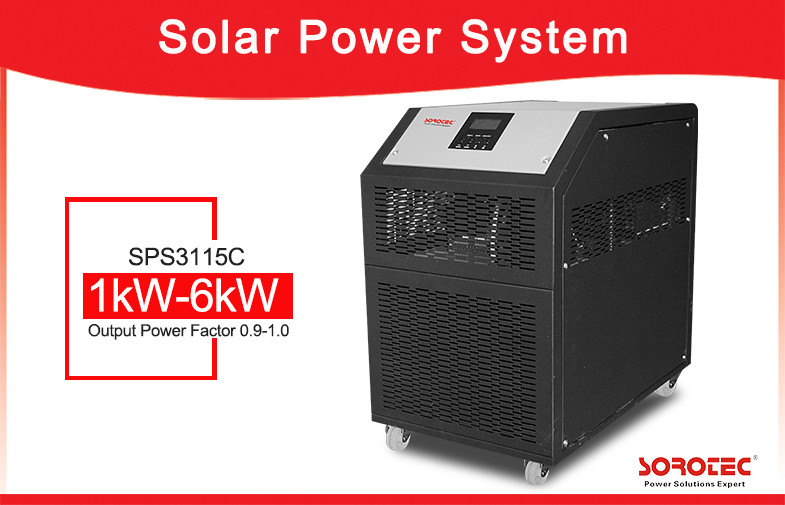

Product Descriptions Of SPS3115C 1-6kW Solar Power Inverter

MODEL SPS3115C 1-6KW
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Input Wave form Sine wave (utility or generator)
Nominal Voltage 120VAC(option) 230VAC
Low voltage trip 90v ±4% & 184v/154v ±4%
Low voltage reengage 100v ±4% & 194v/164v±4%
High voltage trip 140v ±4% & 253v ±4%
High voltage reengage 135v ±4% & 243v ±4%
Nominal input frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz ~ 65Hz
Output Wave form (Bypass mode)same as input
Over-Load Protection Circuit breaker
Short circuit Protection Circuit breaker
Efficiency on line transfer mode >95%
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000
Output continuos power VA 3000 4500 6000 9000 12000 15000 18000
Power factor 0.9-1.0
Nominal Output Voltage rms 120VAC(option) 230VAC
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Short circuit protection Yes,fault after 1 secs
Inverter input
Nominal input voltage 24V/48V
Minimum start voltage 20V/40V
Low battery alarm 21V/42V
Low battery trip 20V/40V
High voltage alarm 32V/64V
Charger
Output voltage Dependent on battery type
Charge current 10-85A MAX
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection 15.7v for 12v(*2 for 24v;*4 for 48v)
Solar Charger
MPPT Range @ Operating Voltage 30-115VDC/60-115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Charging Current 60A
Macimum Effciency >96%
Standby Power Comsumption 2W



THREE STRATEGIC INDUSTRIES



Low Frequency 3kW 230VAC Solar Power Inverter With 60A MPPT Solar Charge Controller 0



APPLICATION OF OUR PRODUCT






1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.
