Low Frequency 5000 Watt Power Inverters 8V 120V with Bypass , ISO9000 Standard

Contact Now

Low Frequency 5000 Watt Power Inverters 8V 120V with Bypass , ISO9000 Standard

Minimum Order Quantity :	1PCS (Inverter Sample Are Available)	Price :	Negotiable
Packaging Details :	Standard Exported Cartons and Pallets for Power Inverters	Delivery Time :	Within 15-30days after receiving your 30% TT deposit
Payment Terms :	30% TT in advance, the balance before shipping	Supply Ability :	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Place of Origin:	Guangdong (Mainland) , China	Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000	Model Number:	IG3115E 1 - 6KW

Detail Information
Frequency Inverter:	Low Frequency Inverters System	Output Power::	1000-6000W
Wave Form:	Pure Sine Wave	Output Frequency:	50HZ/60HZ
Power Factor:	0.9/1.0 Optional	Size(WDH):	598218179mm
Weight(kg): G.W:	16~40KG	Applications:	Fridge
Highlight:	solar power inverter for home , solar energy inverter

Product Description

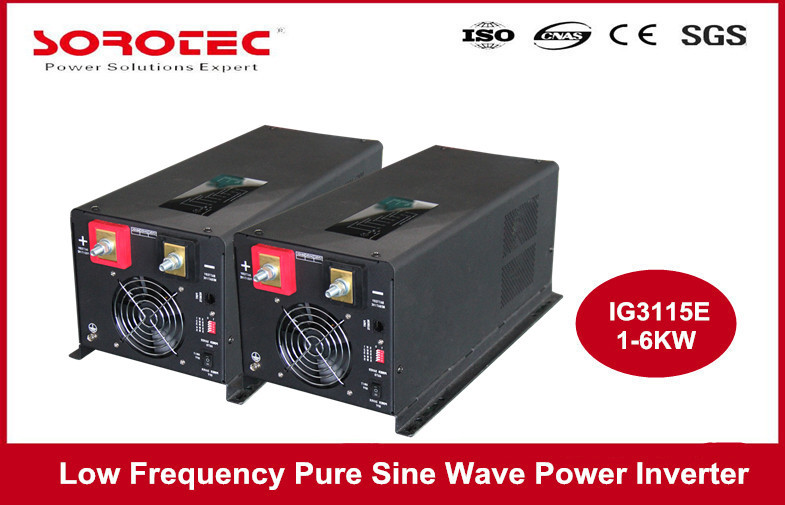

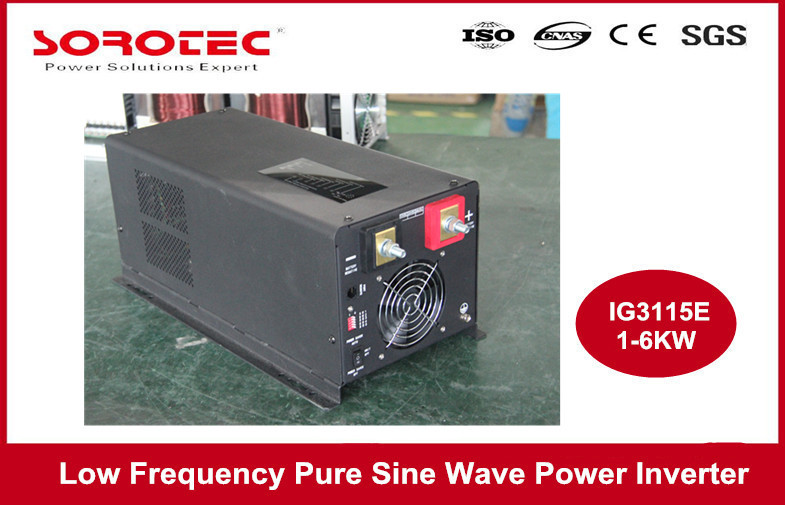

Single Phase Low Frequency Pure Sine Wave 5000W Inverter 48V 120V Power Inverter with Bypass

Quick Detailes:

Remote monitor:RS232+ SNMP Card (square, tower optional)
Dry contact (square, tower optional)
stability voltage function (square, tower optional)
Low Battery voltage Shut down can choose: 10V or 10.5V
Input voltage rating can choose: 184V-253V or 154V-264V
Frequency can choose: 50Hz or 60Hz
Working mode can choose: battery mode first or on line mode first
Charge current can adjust
Battery type can choose: 0-9

Typical Application:

IG3115E 1-6KW Series Low Frequency Pure Sine Wave Power Inverters System,Widely used to supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc

Key Features:

Could be built-in MPPT controller
Output power factor is 0.9-1
Well accept generator’s output
Low Frequency Pure sine wave
The charging current MAX. 85 Amp
Auto-transfer between battery/line modes
Microprocessor control guarantees high reliability
Bypass and bypass voltage regulation function
4-steps intelligent charging control to recharging time

Technical Parameters:

MODEL	IG3115E 1000-6000W Pure Sine wave Output Inverter
	1000W	1500W	2000W	3000W	4000W	5000W	6000W
Input Wave form	Sine wave (utility or generator)
Nominal Voltage	120Vac 230Vac
Low voltage re trip	90v ±4% & 184v/154v ±4%
Low voltage re engage	100v ±4% & 194v/164v±4%
High voltage re trip	140v ±4% & 253v ±4%
High voltage re engage	135v ±4% & 243v±4%
Max Input AC Voltage	150VAC 270VAC
Nominal Input Frequency	50Hz/ 60Hz (auto detection)
Low freq trip	47Hz for 50Hz,57Hz for 60Hz
High freq trip	55Hz for 50Hz,65Hz for 60Hz
Output Wave form	(Bypass mode)same as input
Over-Load Protection	Circuit breaker
Short circuit Protection	Circuit breaker
Transfer Switch Rating	30Amp or 40Amp
Efficiency on line transfer model	≥95%+
Line transfer time	10ms Typical
Bypass without battery connected	Yes
Max bypass current	30 amp or 40 amp
Bypass over load current	30 amp or 45 amp:Alarm
Inverter specification/output
Output wave form	Pure sine wave
Output continuos power watts	1000	1500	2000	3000	4000	5000	6000
Output continuos power VA	1000	1500	2000	3000	4000	5000	600
Power factor	0.9-1.0
Nominal Output Voltage rms	120/230VAC
Output Voltage regulation	+/- 10%rms
Output frequency	50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification	>88%
Surge ratings	3000	4500	6000	9000	12000	15000	18000
Short circuit protection	Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage	12V		24V			48V
Minimum start voltage	10V		20V			40V
Low battery alarm	10.5V		21V			42V
Low battery trip	10V		20V			40V
High voltage alarm	16V		32V			64V
Power saver	Below 25 watts when enabled
Power saver	Same switched on/off on remote
Charger mode specification	95-127VAC				194-243VAC/164-243VAC(W)
Input voltage range	Dependent on battery type
Output voltage	35A/70A MAX
Charge current	0-15.7v for 12v(2 for 24v;4 for 48v)
Battery initial voltage for start up	15.7v for 12v(2 for 24v;4 for 48v)
Over charge protection shutdown
Charger curves(4stage constant curren)battery types
4 step digital controlled progressive charge
Battery type	Fast V Fast V(2 for 24v;4 for 48v)
Gel U.S.A	14.0 13.7
A.G.M. 1	14.1 13.4
A.G.M. 2	14.6 13.7
Sealed lead acid	14.4 13.6
Gel euro	14.4 13.8
Open lead acid	14.8 13.3
Calcium	15.1 13.6
De-sulphation	15.5 for 4 hrs
Remote control/RS232/USB	Yes. Optional
Size: in mm	3 1000/1500Model:362218179mm³
	2000/3000Model:442218179mm³
	4000/5000/6000Model:598218179mm³
Weight	1000	1500	2000	3000	4000	5000	6000
	16KG	18KG	20KG	22KG	35KG	38KG	40KG
