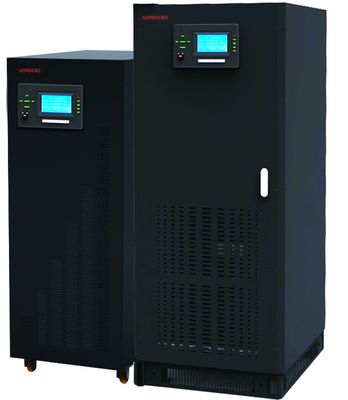

Low Frequency Online UPS GP9330C Series 10-200KVA (3Ph in/3Ph out)

GP9330C 10-200KVA

10 KVA

15 KVA

20 KVA

30 KVA

40 KVA

60 KVA

80 KVA

100KVA

120KVA

160KVA

200KVA

Capacity

10KVA

/8KW

15KVA

/12KW

20KVA

/16KW

30KVA

/24KW

40KVA

/32KW

60KVA

/48KW

80KVA

/64KW

100KVA

/80KW

120KVA

/96KW

160KVA

/128KW

200KVA

/160KW

Nominal Voltage

380VAC Three phase four wires +G

Nominal Frequency

50/60HZ

AC Input

Voltage Range

380VAC±25% Three phase 4 wires +G

Frequency range

50/60HZ±5%

soft start

0-100%   5sec

Power factor

＞0.92(with input filter)

Bypass Input

voltage range

380VAC±25% Three phase 4 wires +G

Frequency range

50/60HZ±10%

Inverter bypass

(overload)0ms

Output

Voltage Precision

380V±1% (steady load), 380V±3%(Load Fluctation)Three phase four wires +G

Frequency Precision

50/60Hz±0.05Hz(battery powered)

Power factor

0.8((lagging)

Wave Distortion

linear load<3%, non-linear load <5%

Steady-state response time

<10ms

Overload capability

110% Normal Running ; 125% for 10 min ;150% for 1 min

Static switch

automatism

Battery

Nominal battery voltage

360V

Float Charging voltage

405V

Cut-off voltage

315V

Maximum discharge current

28A

42A

56A

85A

113A

169A

225A

282A

338A

381A

507A

Charge current

1A-50A(According to the configuration of battery capacity which can be set)

Other

Display

LED/LCD display

Alarm

Sound and light alarm

Protection

UPS over current , short circuit , battery under voltage , over temperature

Working environment

Acoustic noise

60-65dB

Operating environment

Temperature:0-40℃   Humidity :10%-90%(Non-condensing)

Case color

Gray(Optional)

Physical Characteristics

Weight(KG)

N.W

200

224.7

224.7

354.8

412.3

513.9

700

860

900

1250

1380

G.W

226.8

251.5

251.5

389.5

447.5

552.3

740

900

960

1310

1440

Dimensions:  ( W x D x H )mm

450×720

×1120

710×720

×1450

710×830

×1500

1100×860

×1680

1500×1120

×1800
