| Minimum Order Quantity : | 1PCS Low Frequency Online UPS | Price : | 1000-10000 USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Low Frequency Online UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, | Supply Ability : | 3000PCS/Month for Low Frequency Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | GP9332C 10 - 200KVA |
|
Detail Information |
|||
| Product Name: | Low Frequency Online UPS | Phase UPS: | 3Ph In/1Ph Out |
|---|---|---|---|
| Wave Form: | Pure Sine Wave UPS | UPS Capacity: | 10-100KVA |
| Frequency Range: | 45-65HZ | Application: | Uninterrupted Power Supply For Industry |
| Output Power Factor: | 0.8 | ||
| Highlight: | pure sine wave ups,uninterruptable power supply |
||
Product Description
Low Frequency Pure Sine Wave Uninterrupted Power Supply Online UPS 10-100KVA
| Product Name | Low Frequency Online UPS |
| Model | GP9312C Series |
| Capacity | 10-100KVA |
| Phase | 3Phase in 1Phase out |
| Output Power Factor | 0.8 |
| Waveform | Pure Sine Wave |
| Parallel Function | Maximum 8 units for parallel working |
| Applications | Industry,data centre,telecom,servers,networks and so on precision equipmenta |
| Service | OEM/OEM produce,LOGO customized and Sample is available |
Key Features:
1.On-line double conversion technology with isolation transformer on the inverter output
2.The load is powerd continuously by the inverter with a filtered,pure sine wave output
3.Full microprocessor control with no-break static and manual bypass
4.Advanced IGBT technology makes the system more stability
5.Support maximum 6 units UPS in parallel or N+X redundancy
6.Selectable Economic Operation Mode(EPO) and the efficiency>98%
7.Support emergency power off (EPO) by remote control
8.Output power factor is 0.8 suitable for powering ICT and industrial loads
9.BACK FEED protection to avoid energy feeding back into the mains supply cause a fault occur
10.High level diagnostics ,event log with 128 messages,states,measurement and alarms
Technical Specifications of Online UPS GP9332C 10-200KVA
Model |
GP9332C 10-200KVA | |||||||||
| Rated Power (KVA) | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | |
| Active Power (KW) | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 90KW | |
| Input | ||||||||||
| Nominal Voltage | 380/400/415VAC 3-phase | |||||||||
| Voltage tolerance | 400V + 20%/ -25% | |||||||||
| Frequency | 45 ÷ 65 Hz | |||||||||
| Soft Start | 0 ÷ 100% in 30’’ (selectable) | |||||||||
| Permitted frequency tolerance | ± 2% (selectable from ± 1% to ± 5% from the front panel) | |||||||||
| Standard features | Back Feed protection; separable bypass line | |||||||||
| Battery | ||||||||||
| Type | Lead, flooded and VRLA AGM / GEL; NiCd | |||||||||
| AC ripple | < 1% | |||||||||
| Temperature compensation | -0.5V × ℃ | |||||||||
| Typical charging current | 0.2 × C10 | |||||||||
| Output | ||||||||||
| Number of phase | 3 + N | |||||||||
| Nominal voltage | 380/400/415VAC 3-phase +N | |||||||||
| Static stability | ± 1% | |||||||||
| Dynamic stability | ± 5% in 10ms | |||||||||
| Voltage distortion | <1% with linear load ; < 3% with no-Linear load | |||||||||
| Crest factor (lpeak/1rms) | 3:1 | |||||||||
| Frequency stability on battery mode | 0.05% | |||||||||
| Frequency | 50 or 60Hz (selectable) | |||||||||
| Overload | 110% for 60’ ; 125% for 10’; 150% for 1’ | |||||||||
| Environment | ||||||||||
| Remote signaling | Voltage-free contacts | |||||||||
| Remote commands | EPO and bypass | |||||||||
| Communication | Double RS232 + remote contacts +2 communication interface slots | |||||||||
| Operating Temperature | 0 ℃ / + 40 ℃ | |||||||||
| Relative humidity | < 95% non condensing | |||||||||
| Colour | Light grey RAL 7035 | |||||||||
| Noise | 54 | 60 | 62 | 63 ÷ 68 dBA at 1m | ||||||
| Protection rating | IP20 | |||||||||
| Efficiency Smart Mode | Up to 98% | |||||||||
| Compliance | European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1;EMC IEC EN 62040-2 C2 | |||||||||
| Classification according to IEC 62040-3 | (Voltage Frequency Independent) VFI –SS - 111 | |||||||||
| Physical parameters | ||||||||||
| Weight (kg) without batteries | 210 | 220 | 230 | 280 | 330 | 450 | 600 | 640 | 650 | |
| Dimension (h×w×d) (mm) |
1400 × 555 × 740 |
1400 × 800 × 740 |
1900 × 800 × 800 |
|||||||

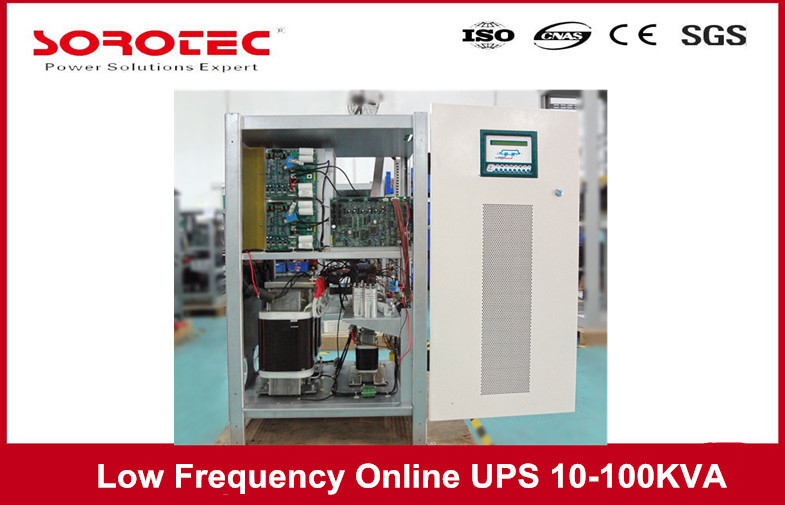

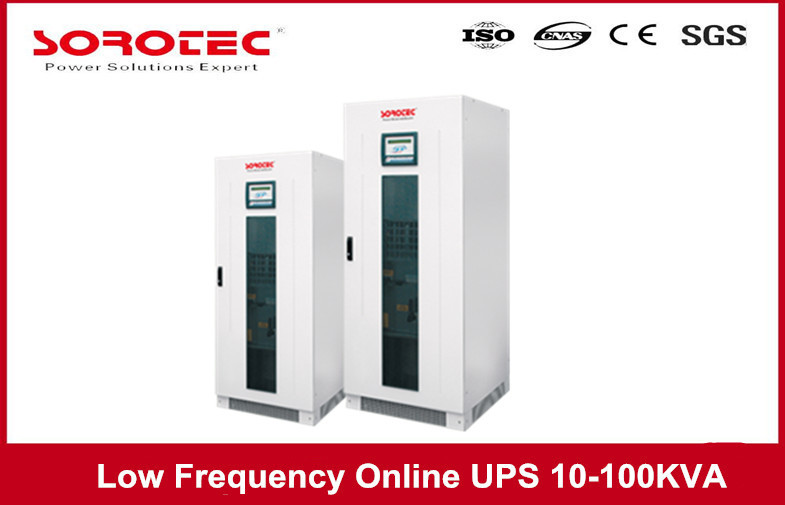

Product Show:
