USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS Modular UPS | Price : | 1-10000 USD |
|---|---|---|---|
| Packaging Details : | Wooden Packing for Modular UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS Per Month for Modular UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | MPS9335C 10-300KVA Modular UPS |
|
Detail Information |
|||
| Product: | Online Modular UPS | Capacity: | 10kva-300kva |
|---|---|---|---|
| Output Voltage: | 380/400/415VAC | Transfer Time: | 0ms |
| Power Factor: | 1.0 | Hot-swappable: | Modular Structure |
| LOads: | Large Power | Easy To Maintenance: | Online Maintenance |
| High Efficiency: | >96% At 50% Rated Load | ||
| Highlight: | backup power supply,uninterruptable power supply |
||
Product Description
Modular Long Time Backup online double conversion ups Uninterrupted Power Supply
Key Features:
1. Provide large LCD touch screen (optional)
2. Extra large LCD that can display 12 language
3. Easy-to-install, Superior energy saving ,Easy-to-maintain, Easy-to-modify
4. Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
5. Advanced distributed active parallel technology realizes parallel operation of 4 UPS
6. Super wide input voltage & frequency ranges suiatable for severe grid environment
7. Intelligent battery management maintains battery auto to prolong the battery life
8. The machine system for modular structure, Max.10 pcs module's and the biggest single module to 30 kw
9. UPS power module supporting hot swappable, capacity upgrade extremely simple.
10. Super ability for overload and short circuit, ensure the system stability and safety under the limit state of system
11. Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
| Model | MPS9335 10-300KVA | ||
| Capacity | 10-300KVA | ||
| Main input | |||
| Input voltage | 380V/400V/415AC(Optional South America 208v) | ||
| Input Frequency Range | 50/60Hz | ||
| Power Factor | Full load>0.99 ,Half load >0. 98 | ||
| THDi | THDi <3% | ||
| Input power soft-start fantion | 5-30s settable | ||
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% | ||
| Frequency Range | 40-70Hz | ||
| Battery | |||
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose | ||
| Charge Voltage accuracy | ± 1% | ||
| Bypass | |||
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software | ||
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms | ||
| Output | |||
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) | ||
| THDi | THD<1%(linear load), THD<3%(nonlinear load) | ||
| Power Factor | 0.9 | ||
| Three Phase Angle accuracy | 120°c ± 0.5°c | ||
| Current Crest Ratio | 3:1 | ||
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms | ||
| Transfer Time | 0ms,15ms(ECO Mode) | ||
| System | |||
| Frequency | 50Hz/60Hz (Settable) | ||
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz | ||
| Protection Level | IP20 | ||
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port | ||
| System efficiency | > 96% at load above 50%, >95% at load above 25% | ||
| Operation Temperature | 0-40 °c | ||
| Storage Temperature | -25 °c -70 °c (without battery) | ||
| Humidity | 0-95%(no-condensing) | ||
| Noise(dB) | 55-62dB,Adjusted with load | ||
| 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG | |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG | |
| module :PM10 | 10KVA power module :20KG | ||
| Weight | module :PM20 | 20KVA power module :21KG | |
| module :PM30 | 30KVA power module :32KG | ||
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 | |
| 10 module cabinet | 600X2070X850 | ||
| power module | 440X132X660(10KVA/20KVA/30KVA) | ||

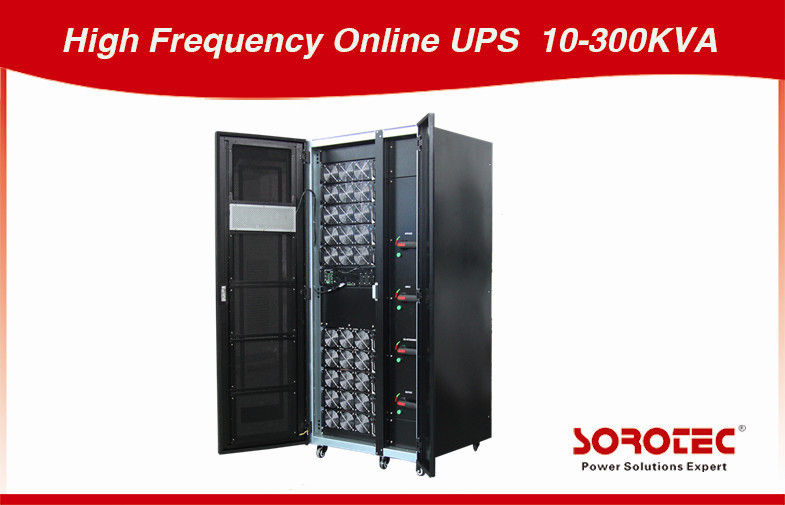

MPS9335C 10-300KVA series 3Ph in/3Ph out High Frequency Online UPS is extramely flexible. the concept of power modular designing can be easy removed at runtime and installed without affecting sysytem operation and output ,implement investment planning with the need to expand,allowing users to achieve dynamic growth with business development.
it saves customers coasts for initial equipments purchasing, future expansion. when user estimated UPS capacity ,often underestimated or high expected ,MPS9335C series power can slve the above problems effectively .help user to carry out construction investment in phase under the condition that future development direction is not clear.When users want to add load to the UPS,only adding the required number of modules for expansion.
Widely Application in IDC(Internet Data Center),computer center,ISP(Internet Service Provider),Telecom,Finance bank and securities,Tax,hospital system,industrial automation,precision equipment and so on feilds.
Installation&Maintenance&Modified
1. Installation ----- Top or bottom cabling, no need of input cabling cabinet.
2.Maintenance----- Full front access, UPS, failed part can be replaced shortly
3. Modified-----The number of batter y cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the batter y cell can be replaced in time when it fails without interrupting the normal operation of UPS.
