3 Phase 20KVA / 14KW, 15KVA /10.5KW True online double conversion High Frequency UPS
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1pcs | Price : | 1-10000 USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30 days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC /OEM |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | HP9335C PLUS 10-30KVA |
|
Detail Information |
|||
| Stable System: | High Frequency Online UPS | UPS Power: | 30kva /27KW |
|---|---|---|---|
| Output Power Factor: | 0.9 | Double Conversion: | Pure Sine Wave |
| Transformeless UPS: | Yes | Battery Voltage: | 12V/9AH |
| Transfer Time: | 0ms(Inverter Bybass) | Phase: | Three Phase +N |
| Application: | Personal Computer | Service: | OEM/ODM Produce |
| Highlight: | ups uninterruptible power supply,high frequency ups |
||
Product Description

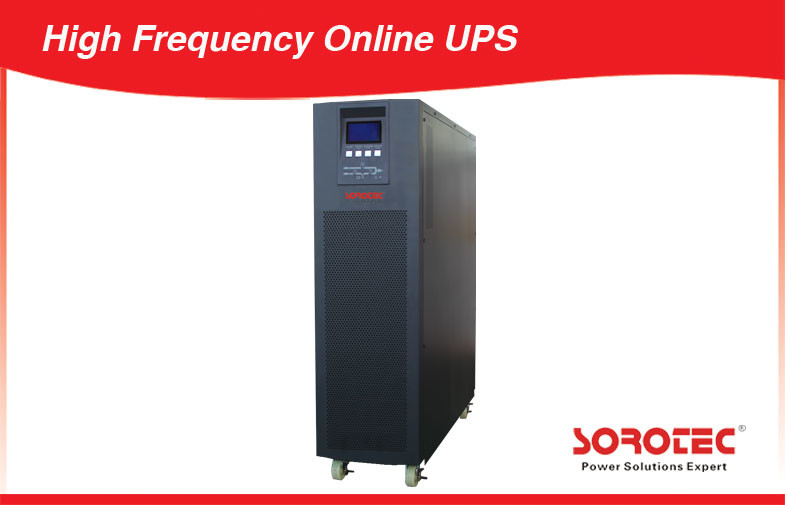

N + X Parallel Inverter High Frequency Online UPS HP9335C Plus 30KVA 27KW
Quick Detaile:
High Power Capacity 10kva to 30kva
High Output Power Factor 0.9
N+X Parallel Working Mode
Standard Model and Long-run Mode for you choose
12V/9AH for 18~20 PCS Battery Numbers(adjustable)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
Key Features:
| MODEL | HP9335C Plus 10-30KVA | ||||||||
| 10K | 10K-XL | 15K | 15K-XL | 20K | 20K-XL | 30K | 30K-XL | ||
| CAPACITY | 10KVA / 9KW | 15KVA / 13.5KW | 20KVA / 18KW | 30KVA / 27KW | |||||
| PHASE | 3 Phase with Neutral | ||||||||
| INPUT | |||||||||
| Voltage Range | Low Line Loss | 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load | |||||||
| Low Line Comeback | Low Line Loss Voltage + 10V | ||||||||
| High Line Loss | 300 VAC(Ph-N) ± 3 % | ||||||||
| High Line Comeback | High Line Loss Voltage - 10V | ||||||||
| Phase | Three phase with ground | ||||||||
| Power Factor | ≥ 0.99 at 100% Load | ||||||||
| OUTPUT | |||||||||
| Output voltage | 208/220/230/240VAC(Ph-N) | ||||||||
| AC Voltage Regulation | ± 1% | ||||||||
| Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system | ||||||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | ||||||||
| Overload | AC mode | 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec | |||||||
| Battery mode | 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec | ||||||||
| Current Crest Ratio | 3:1 max | ||||||||
| Harmonic Distortion | ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load | ||||||||
| Transfer Time | Line←→Battery | 0 ms | |||||||
| Inverte←→Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) | ||||||||
| Line←→ECO | <10 ms | ||||||||
| EFFICIENCY | |||||||||
| AC mode | > 89% | > 89% | > 89% | > 90% | |||||
| Battery Mode | > 86% | > 88% | > 87% | > 89% | |||||
| BATTERY | |||||||||
| Standard Model | Type |
12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | ||||
| Numbers | 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 3 x 20(18-20 adjustable) | |||||
| Recharge Time | 9 hours recover to 90% capacity | ||||||||
| Charging Current | 1.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | |||||
| Charging Voltage | 273 VDC ± 1% | ||||||||
| Long-run Model | Type | Depending on applications | |||||||
| Numbers | 18-20 | ||||||||
| Charging Current | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 12.0 A ± 10% (max.) | |||||
| Charging Voltage | 273 VDC ± 1% | ||||||||
| PHYSICAL | |||||||||
| Standard Model | Dimension,DxWxH(mm) | 832 X250X894 | 832 X250X1275 | ||||||
| Long-run Model | Dimension,DxWxH(mm) | 609 X250X768 | 832 X250X828 | ||||||
| ENVIRONMENT | |||||||||
| Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) | ||||||||
| Operation Humidity | <95 % and non-condensing | ||||||||
| Operation Altitude | <1000m | ||||||||
| Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | |||||||
| MANAGEMENT | |||||||||
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | ||||||||
| USB | Power management from SNMP manager and web browser | ||||||||
Our Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
Why Choose US?
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
