50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS | Price : | 100-1000 |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3119C 1000-5000VA |
|
Detail Information |
|||
| Product Name: | On Off Grid Hybrid Solar Inverters | Output Power: | 3KVA |
|---|---|---|---|
| Solar Charge Controller: | 48V MPPT | Nominal Voltage: | 220/230/240VAC |
| Output Waveform: | Pure Sine Wave | Priority: | PV/Battery/Grid |
| Rated Output Power: | 2000W | Power Ourcing: | Solar Power |
| Application: | Fridge Inverter | ||
| Highlight: | grid hybrid solar power inverter,hybrid pv inverter |
||
Product Description

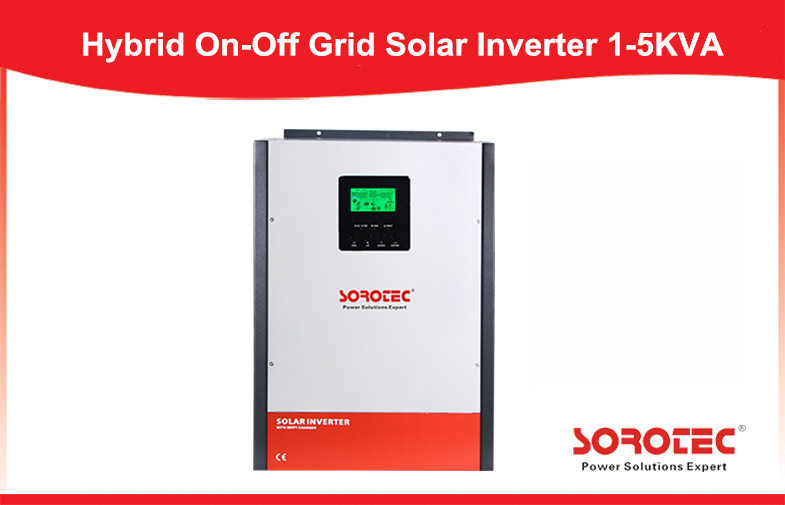

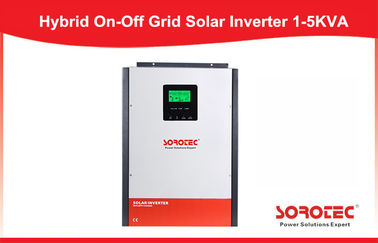

On Off Grid 3kva 48v solar power system inverter , MPPT Controller
Applications:
Supply the reliable long backup time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras ,photographic equipment ands so on home and office equipments.
Key Features:
1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup
Protection- Functions:
Low battery voltage/Over load/Output short circuit /Over- temperature,
Restrain surge interference/Eliminate noise/Protection for thunder striking,
provide the reliable power to the home appliances.
SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:
| MODEL | 3K-48 | 4K-48 | 5K-48 |
| Max.PV Array Power | 4000W | 4000W | 6000W |
| Rated Output Power | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC | 145VDC |
| MPPT Range @ Operating Voltage | 60~115VDC | 60~115VDC | 60~115VDC |
| MPPT Tracker Number | 1 | 1 | 2 |
| GRID-TIE OPERATION | |||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-264.5VAC | ||
| Nominal Output Current | 13A | 17A | 21.7A |
| Power Factor | >0.99 | ||
| Efficiency | |||
| Maximum Conversion Efficiency (DC/AC) | 90% | ||
| GRID INPUT | |||
| Accepatable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Frequency Range | 50HZ/60HZ(Auto sensing) | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Waveform | Pure Sine Wave | ||
| Efficiency(DC to AC) | 93% | ||
| BATTERY&CHARGER | |||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charge Current | 80A | 80A | 120A |
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 140A | 140A | 180A |
| INTERFACE | |||
| Parallel Function | Yes | Yes | Yes |
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90%RH (No condensing) | ||
| Operating Temperature | 0 to 50℃ | ||
