On/Off Grid 5.5kw Hybrid Solar Inverter with 90A MPPT controller
On/Off Grid 5.5kw Hybrid Solar Inverter with 90A MPPT controller On/Off Grid 5.5kw Hybrid Solar Inverter with 90A MPPT controller
Contact Now

On/Off Grid 5.5kw Hybrid Solar Inverter with 90A MPPT controller

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets.
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 1000PCS/Month for REVO Series Solar Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO II 3-5.5KW

Detail Information
MODEL: 3-5.5KW Max PV Array Power: 5000W
Acceptable Input Voltage Range: 90-280VAC Or 170-280 VAC Output Wave Form: Pure Sine Wave
Humidity: 0~90% RH (No Condensing) Operating Temperature: 0 To 50 °C
Highlight:

grid hybrid solar power inverter

,

mppt solar inverter

Product Description


On/Off Grid 5.5kw Hybrid Solar Inverter with 90A MPPT controller

Product Snapshot:

  • Model: 3-5.5KW
  • Nominal Voltage: 220/230/240VAC
  • Frequency Range: 50Hz/60Hz
  • Wide MPPT Range: 120-450VDC

Key Features:

1.Touch screen display.
2.PV and utility power take the load at same time(can setting).
3.Output power factor PF=1.0.
4.On&Off Grid with energy storage.
5.Energy generated record,load record,history information and fault record.
6.Language and time setting.
7.Structure with dust filter.
8.AC charging and AC output time setting.
9.Charging voltage and charging current timing.
10.External Wi-Fi device optional.
11.Parallel operation  up to 12 units
12.Connected with battery optional.
13.Wide PV input range 120-450VDC.
14.Independent CPU.
15.MAX PV Array power 5000W.
16.Solar and Utility supply power to the load when solar power is not sufficient to load.

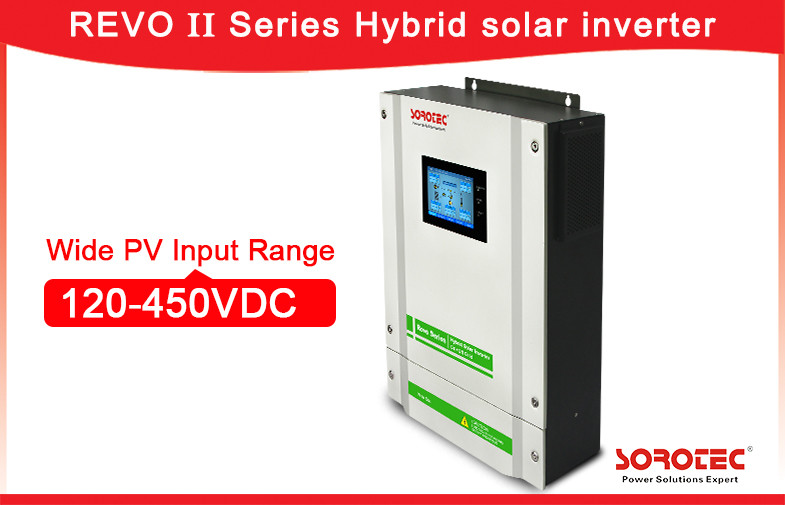

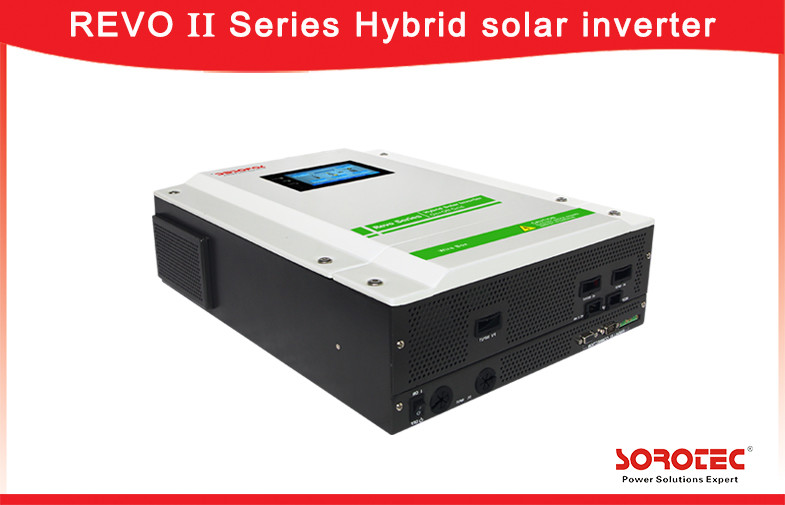

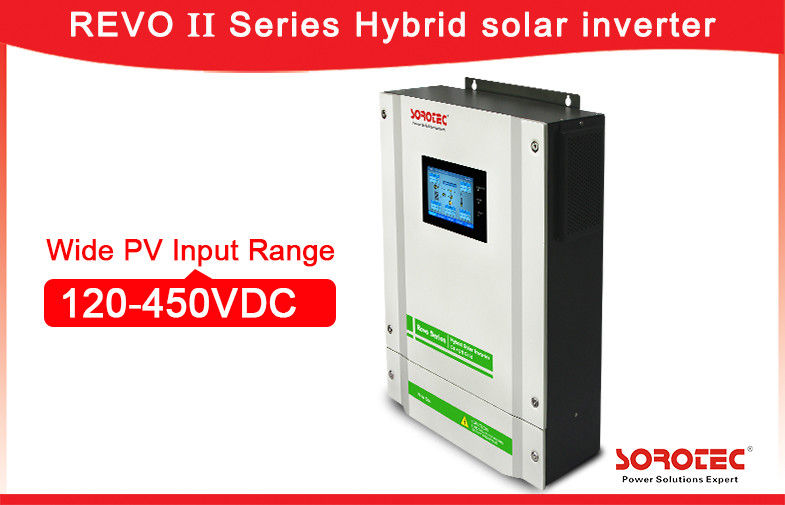

Product Show:

On/Off Grid 5.5kw Hybrid Solar Inverter with 90A MPPT controller 0





Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 5000W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
