USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS uninterruped power supply ups | Price : | 1-1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for uninterrupted power supply ups | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS/Month for H |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9116C/HP9316C Plus 1-20KVA UPS |
|
Detail Information |
|||
| Product Name: | Uninterrupted Power Supply UPS | Product Type: | High Frequency Online UPS |
|---|---|---|---|
| Phase: | SIngle Phase Or Three Phase | Power Factor: | 0.9 |
| Waveform: | Pure Sine Wave | Frequency: | 40-70HZ |
| Nominal Volatage: | 220/230/240/380VAC | Application: | Computers |
| Highlight: | backup power supply,uninterruptable power supply |
||
Product Description
PF 0.9 HF Uninterrupted Power Supply , 1-20KVA ups computer battery backup
Quick Detailes:
1) 1Ph in/1Ph out High Frequency Online UPS of HP9116C Plus 1-10KVA Series
2) 3Ph in/1Ph out High Frequency Online UPS of HP9316C Plus 10-20KVA Series
3) Output Power Factor up to 0.9,The Efficiency up to 94%,input THDI<5%
4) Support maximum 3 units UPS for parallel working
5) Smart interface RS232,SNMP/USB can working in the same time
6) LCD display AC,loads,battery states in real-time
7) High efficiency low noise small size and light weight
Applications:
Data centre, bank station, network , communication equipment, office, automatic equipment,
monitor equipment, control system
Product Descriptions:
High frequency online ups of HP9116C/HP9316C PLUS series,whose unit capacity from 1KVA to 10KVA for 1Ph in/1Ph out,10KVA to 20KVA for 3Ph in/1Ph out,is a multi-function and high flexible and extendable uninterrupted power supply system special for the key appliances such as data centre,bank station, communication equipment,office,qutomatic equipment,control system.
The series of UPS adopts advanced parallel control technology and digital control DSP technology and best power component to make the system more safe and reliable . It support maximum 3 units UPS for parallel working ,support three phase input or single phase input for three phase UPS.Wide input voltage and frequency range for more stable to output.Clients can choose the communication interface such as RS232,SNMP and USB for remote control. Especially support RS232,USB.SNMP working in the meantime.
The series of UPS with high output power factor 0.9 that mean can take more loads,if you take same load that can get higher reliability.Three phase input mode support three phase PFC,INPUT thdi<5%.The efficiency of the machine up to 93.5% when take 30% loads,ECO mode efficiency up to 98%.Frequency conversion provide more stable output.Battery vltage can be choice depend on loads capacity can meet different needs of clients.Selected trp technology can avoid and isolation system fault then improved system availability.
| Technical Parameters of High Frequency Online UPS HP9116C PLUS 1-3KVA |
| Model | HP9116C Plus 1-3KVA | ||||||
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL | ||
| Rated Power | 1KVA/0.9KW | 2KVA/1.8KW | 3KVA/2.7KW | ||||
| Rated Voltage | 220/230/240VAC | ||||||
| Rated Frequency | 40/70 Hz | ||||||
| Rated Frequency | |||||||
| Voltage Range | 115~300VAC (±3VAC) | ||||||
| THDi | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) | ||||||
| Power Factor | > 0.98 | ||||||
| Output | |||||||
| Voltage Regulation | 220±2%VAC | ||||||
| Frequency Regulation | 50/60 Hz±0.05Hz | ||||||
| Power Factor | 0.9 | ||||||
| Voltage Distortion | Linear load＜4％ Non-linear load＜7％ | ||||||
| Overload Capability | 110%~150% for 47-25 sec；150%~200% for 25 -300ms; >200% for 200m | ||||||
| Current Crest Ratio | 3∶1 | ||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||
| Efficiency(on line mode) | 89% | 90% | 90% | ||||
| Battery | |||||||
| DC Voltage | 24 VDC | 36 VDC | 48 VDC | 72 VDC | 72VDC | 96VDC | |
| Recharge Time | 7hrs to 90% of capacity | ||||||
| Recharge Current | 1A | 6A | 1A | 6A | 1A | 6A | |
| Display | |||||||
| LCD |
Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
||||||
| Communication | |||||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | ||||||
| Environment | |||||||
| Operation Temperature | 0~40℃ | ||||||
| Humidity | 20~90% (Non-condensing) | ||||||
| Storage Temperature | -25℃~55℃ | ||||||
| Sea Level Elevation | ＜1500m | ||||||
| Noise Level (1m) | ＜45dB | <50dB | |||||
| Physics Characteristic | |||||||
| Dimensions: Wx D x H )mm | 145X345X229 | 192X393X328 | |||||
| Technical Parameters of High Frequency Online UPS HP9116C PLUS 6-10KVA |
| Model | HP9116C 6-10KVA | ||||||||
| 6KT | 6KT-XL | 10KT | 10KT-XL | ||||||
| Rated Power | 6KVA/5.4KW | 10KVA/9KW | |||||||
| Rated Voltage | 220/230/240VAC | ||||||||
| Rated Frequency | 40-70Hz | ||||||||
| Input | |||||||||
| Voltage Range | 120~275VAC (±3VAC) | ||||||||
| THDi | ＜5% | ||||||||
| Power Factor | ≥0.99 | ||||||||
| Output | |||||||||
| Voltage Regulation | 220±1%VAC | ||||||||
| Frequency Regulation | 50/60 Hz±0.2Hz | ||||||||
| Waveform | Pure sine wave | ||||||||
| Power Factor | 0.9 | ||||||||
| Voltage Distortion | Linear load＜2％ Non-linear load＜4％ | ||||||||
| Overload Capability | 105%~125% for 1 min；125%~150% for 30 s; >150% for 0.5 s | ||||||||
| Efficiency | >94% | ||||||||
| Current Crest Ratio | 3:01 | ||||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||||
| Battery | |||||||||
| DC Voltage | 180VDC | 192/240VDC | 180VDC | 192/240VDC | |||||
| Recharge Time | 5hours to 90% of capacity | ||||||||
| Recharge Current | 1A | 4.2A | 1A | 4.2A | |||||
| Display | |||||||||
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. | ||||||||
| Communication | |||||||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | ||||||||
| Environment | |||||||||
| Operation Temperature | 0~40℃ | ||||||||
| Humidity | 20~90% (Non-condensing) | ||||||||
| Storage Temperature | -25℃~55℃ | ||||||||
| Sea Level Elevation | ＜1500m | ||||||||
| Noise Level (1m) | ＜55dB | ||||||||
| Physics Characteristic | |||||||||
| Weight (KG) |
59 | 14 | 62 | 16 | |||||
| Dimensions: Wx D x H )mm | 248X500X565 | 212X500X420 | 248X500X565 | 212X500X420 | |||||
| Technical Parameters of High Frequency Online UPS HP9316C PLUS 10-20KVA |
| Model | HP9116C/HP9316C 10-20KVA PLUS | ||||||
| 10KT-XL | 15KT-XL | 20KT-XL | |||||
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW | ||||
| Rated Voltage | 220VAC/380VAC 3phase with ground | ||||||
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) | ||||||
| Input | |||||||
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) | ||||||
| Power Factor | >0.95(Three phase) | ≥0.99 | |||||
| Output | |||||||
| Voltage Regulation | 208/220/230/240VAC (±1%) | ||||||
| Frequency Regulation | 50/60HZ±0.05 Hz | ||||||
| Power Factor | 0.9 | ||||||
| Voltage Distortion | Linear load＜2% ,Non-Linear load＜5% | ||||||
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms | ||||||
| Current Crest Ratio | 3:01 | ||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||
| Battery | |||||||
| DC Voltage | 192VDC | 192/216V/240VDC | |||||
| Recharge Current | 4A | 4A (8A optional) | |||||
| Display | |||||||
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. | ||||||
| Communication | |||||||
| Interface | Smart RS232,SNMP card (optional) USB (optional) | ||||||
| Environment | |||||||
| Operation Temperature | 0~40℃ | ||||||
| Humidity | 0~95% (Non-condensing) | ||||||
| Storage Temperature | -25℃~55℃ | ||||||
| Sea Level Elevation | ＜1500m | ||||||
| Noise Level (1m) | ＜55dB | ||||||
| Physics Characteristic | |||||||
| Weight(KG) | 16.9 | 31 | |||||
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 | |||||

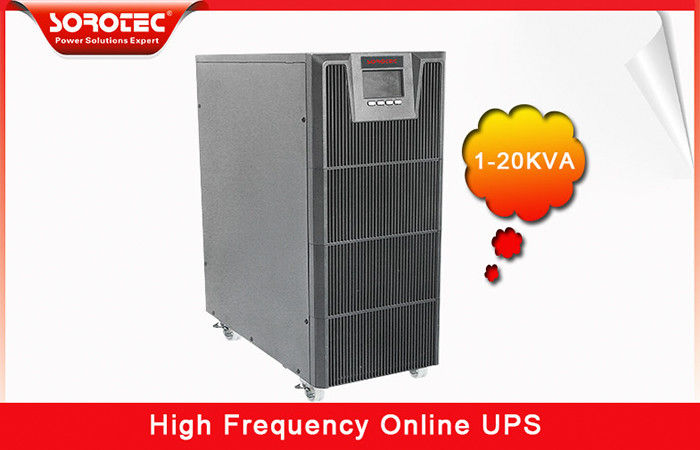

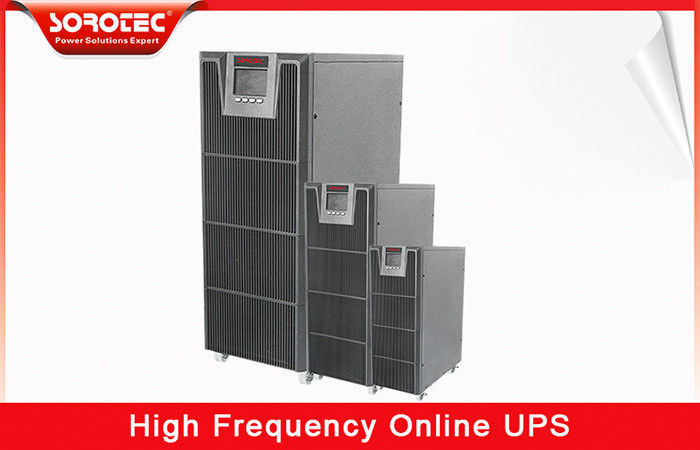

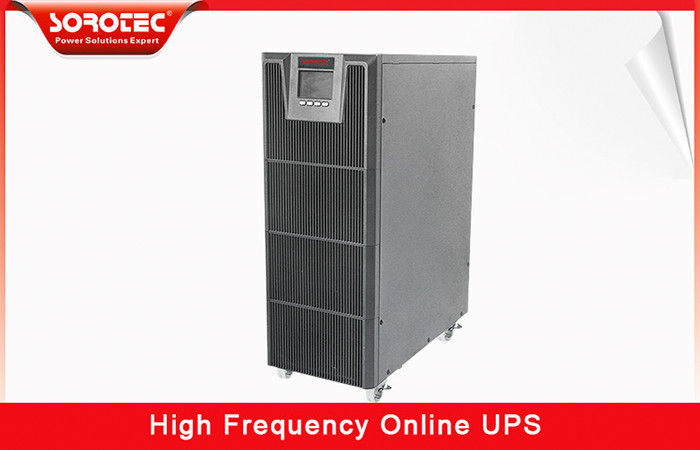

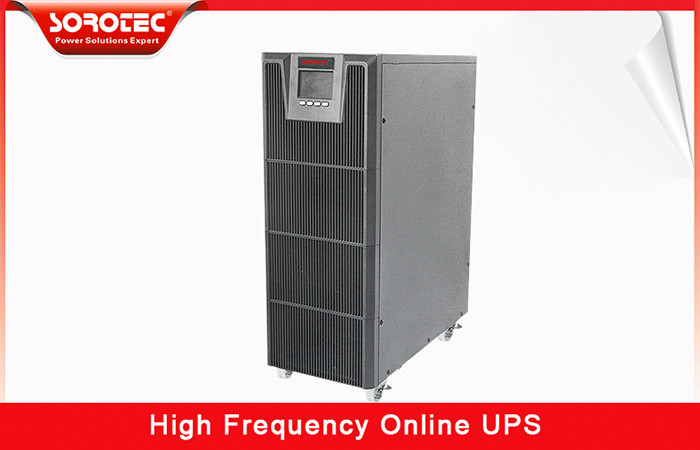

Product Show:
