Home ProductsHybrid Solar InverterPF =1.0 Pure Sine Wave Hybrid Solar Inverter On & Off - grid 1 Phase
PF =1.0 Pure Sine Wave Hybrid Solar Inverter On & Off - grid 1 Phase
PF =1.0 Pure Sine Wave Hybrid Solar Inverter On & Off - grid 1 Phase
Contact Now

PF =1.0 Pure Sine Wave Hybrid Solar Inverter On & Off - grid 1 Phase

Minimum Order Quantity : 1PCS Solar Inverter Available Price : 100-1000
Packaging Details : Standard Exported Cartons and Pallets for Solar Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit for Solar Inverter
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Solar Inverter Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information
Product Name: On -grid&Off-grid Solar Power Inverter Inverter Parameter: 1KVA-5KVA
Solar Controller: Max. 120A MPPT Output Voltage: 220/230/240VAC
Power Factor: 1.0 Wave Form: Pure Sinewave
Input Phase: Single Phase Battery Pack: 48V/50AH
Mainly Use: Fridges,Air-conditional,Personal Computer Max Parallel: 6 Units Solar Inverter Up To 30KW
High Light:

grid hybrid solar power inverter

,

mppt solar inverter

Product Description

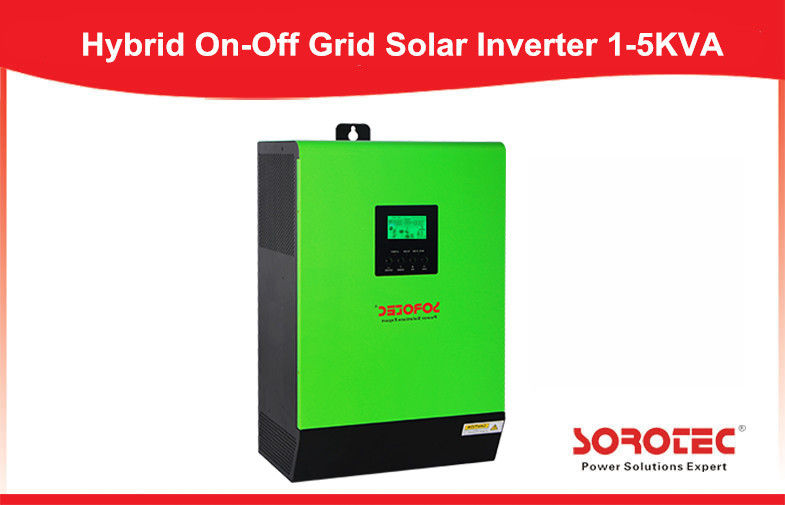

PF=1.0 Pure Sine Wave On-grid & Off-grid 1 Phase Hybrid Solar Power Inverter



SOROTEC SSP3119C 1KVA-5KVA Hybrid On Off Grid Solar Power Inverter

Inverter Type On -Grid & Off -Grid Hybrid  Solar Inverter
Capacity 1KVA/1000W, 2KVA/2000W, 3KVA/4000W, 4KVA/4000W, 5KVA/6000W
Solar Controller Inbuilt Max.120Amp MPPT Solar Charge Controller
Battery Pack 48V/50AH
Power Source Solar System,AC Utility and Battery
Application Provide long time backup power supply for home appliances,office appliances and solar power systems.etc
Sample are  Available,Welcome to Inquiry us by SALES@SOROUPS.COM
Features

3-5K with parallel function

Output Power Factor = 1.0

Green color ,White Color Available

Self-consumption and Feed-in to the Grid

Charging/Discharging time can be setted as your requires .





































Key Features

  • Hybrid On-grid&Off-grid Solar Inverter System
  • Self-consumption and Feed-back to the grid
  • With Max.120A MPPT Solar Charge Controller
  • Supply priority for PV, Battery or Grid
  • Adjustable Charging current and voltage
  • Parallel Operation Max up to 6 units for 3-5kva
  • Monitoring software for real-time status display and control
  • Multiple operation modess:Grid-tie,off-grid and grid-tie with backup

Typical Application

Provide  the reliable long backup time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc



Technical Specifications

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID INPUT
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
INTERFACE
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃





Protection Function

Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking,provide the reliable power to the home appliances.
