USB Line Interactive UPS HP5115E
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1 PCS UPS Available | Price : | 1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Rack Tower UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Rack Tower UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9117C 0.7 - 3KVA Online UPS |
|
Detail Information |
|||
| Product Name: | RackTower Online UPS | Capacity: | 2KVA 1.8KW |
|---|---|---|---|
| Power Factor: | 0.9 | Wave Form: | Pure Sine Wave |
| Frequency: | 50/60HZ | Applications: | UPS For Home Use |
| Flexible Installation: | Rack Or Tower | Efficiency: | >95% |
| Highlight: | uninterruptable power supply,ups power supply |
||
Product Description
Rack Tower Uninterruptible Power Supply Ups 2KVA 1.8KW For Personal Computer
Brief Introduction :
1) High Frequency Online UPS Uninterrupted Powe Supply System,
2) Capacity from 0.7KVA to 3KVA,Rack or Tower installation flexibility,
3) High output power factor 0.9 and efficiency>955,
4) Provide reliable and uninterrupted power supply for connected loads,
Key Features:
1. High efficiency low noise small size and light weight
2. Double-conversion online design and DSP control technology,
3. High output power factor 0.9 can take more loads,effixiency>95%
4. Can replace batteries online, convenient for user to use
5. Enables prolonged runtime of essential equipment during power outages
6. Remote shutdown of non-critical systems or processes
7. Provides installation flexibility with a choice of rack or tower designs
8. Enhanced monitoring and configuration capability
9. Prolong the service life of battery system uptime with ABM battery charging technology
Typical Application :
Provide reliable and uninterrupted power supply for IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing,or anywhere critical equipment and appliances require clean,continuous power.
Technical Specifications of Online UPS HP9117C 1-3KVA:
Model |
HP9117C 0.7-3KVA |
||||||||||||||||
|
0.7KT/0.7KR |
1KT-XL/1KR-XL |
2KT/2KR |
2KT-XL/2KR-XL |
3KT/3KR |
3KT-XL/3KR-XL |
||||||||||||
|
Capacity |
0.7KVA/0.63K 1KVA/0.9KW |
2KVA/1.8KW |
3KVA/2.7KW |
||||||||||||||
|
Nominal Voltage |
100/110/120/127VAC or 200/208/220/230/240VAC |
||||||||||||||||
|
Nominal Frequency |
50/60 Hz |
||||||||||||||||
|
Input |
|||||||||||||||||
|
Voltage Range |
60-138VAC or 115-276VAC |
||||||||||||||||
|
Frequency Range |
50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
||||||||||||||||
|
Power Factor |
＞0.98 |
||||||||||||||||
|
Output |
|||||||||||||||||
|
Voltage precision |
100/110/120/127VAC(±2%) or 200/208/220/230/240VAC (±2%) |
||||||||||||||||
|
Frequency precision |
50Hz/60Hz±0.05Hz |
||||||||||||||||
|
Power Factor |
0.9 |
||||||||||||||||
|
Harmonic Distortion |
Linear Load＜3% Non-Linear Load＜5% |
||||||||||||||||
|
Overload capacity |
overload(110%～150%)after 30 seconds automatically transfer to bypass, it recover after normal load |
||||||||||||||||
|
Current Crest Ratio |
3∶1 |
||||||||||||||||
|
Transfer time |
0ms(AC→DC) |
||||||||||||||||
|
Battery |
|||||||||||||||||
|
DC voltage |
36VDC |
96VDC |
96VDC |
||||||||||||||
|
Recharge time |
7 hours to 90% |
||||||||||||||||
|
Charge Current |
1A |
4A/8A(option) |
1A |
4A/8A(option) |
1A |
4A/8A(option) |
|||||||||||
|
Panel Display |
|||||||||||||||||
|
LCD |
UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records |
||||||||||||||||
|
Language |
English, French, German, Russian, Spanish |
||||||||||||||||
|
Communicate |
|||||||||||||||||
|
Communicate interface |
Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port) |
||||||||||||||||
|
Working Environment |
|||||||||||||||||
|
Temperature |
0～40℃ |
||||||||||||||||
|
Relative humidity |
0～95% non-condensing |
||||||||||||||||
|
Storage Temperature |
-25℃～55℃ |
||||||||||||||||
|
Elevation |
＜1500 meter |
||||||||||||||||
|
Noise Level( 1meter) |
＜45dB |
＜45dB |
＜50dB |
||||||||||||||
|
Physics Characteristic |
|||||||||||||||||
|
Net weigh(Kg) |
15 |
16 |
8.5 |
9 |
33 |
10.5 |
16.5 |
11.5 |
34 |
11.5 |
17 |
12.5 |
|||||
|
Gross weight (Kg) |
17.5 |
17.5 |
11 |
11.5 |
35 |
12.5 |
18.5 |
13.5 |
36 |
13.5 |
19 |
14.5 |
|||||
|
Dimension (WXDXH) |
|||||||||||||||||
|
Main unit(Tower) |
200X400X145 |
340X460X192 |
340X460X192 |
||||||||||||||
|
Main unit (Rack mount) |
438X415X80 |
455 X440 X90 |
|||||||||||||||

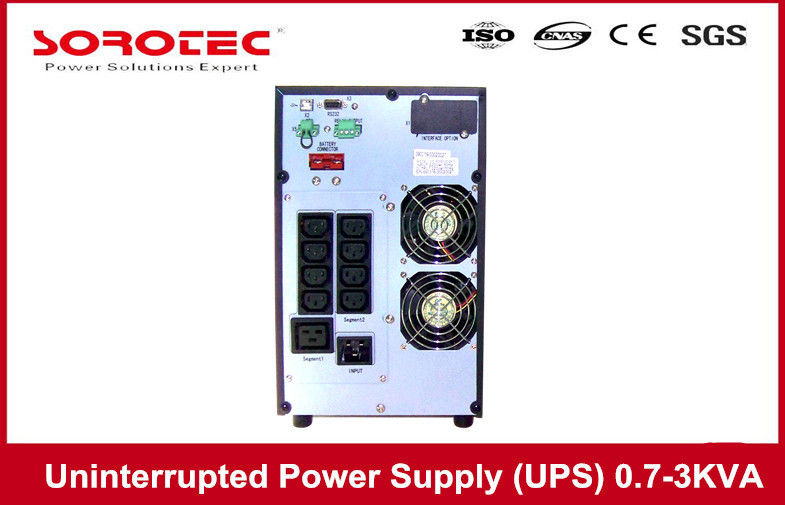

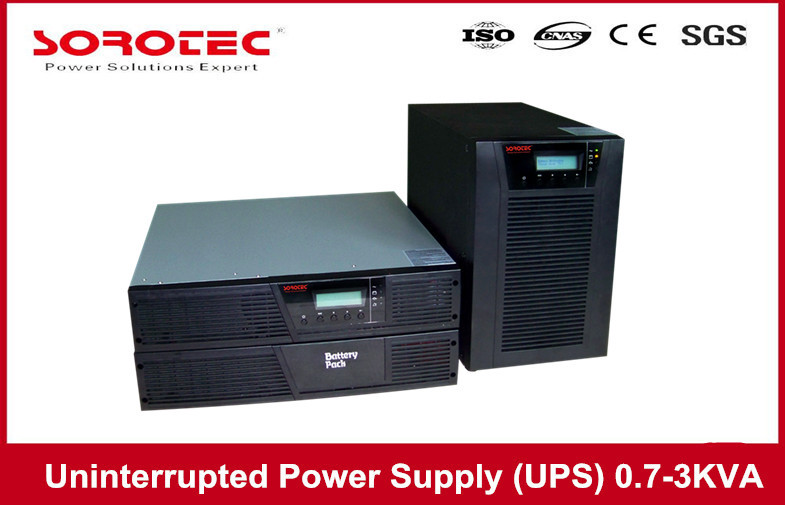

Product Show:
