3 Phase 20KVA / 14KW, 15KVA /10.5KW True online double conversion High Frequency UPS
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS High Frequency Online UPS | Price : | 1-1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for High Frequency Online UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS/Month for High Frequecy Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9116C Plus 1-3KVA Online UPS |
|
Detail Information |
|||
| Product Name: | High Frequency Online UPS | UPS Power: | 3KVA/2.7KW |
|---|---|---|---|
| Power Factor: | 0.9 | Rated Frequency: | 50/60hz |
| Input Voltage: | 115-300VAC | UPS Function: | Continous Power Supply And Stable Output |
| Application: | Telecom,Medical,Computer.etc | DC Voltage: | 96vdc |
| Machine Type: | Long Active UPS | ||
| Highlight: | ups uninterruptible power supply,high frequency ups |
||
Product Description
Single Phase High Frequency Online UPS Double Conversion AC - DC - AC 3KVA 2.7KW
| Product name | 1Ph in/1Ph out High Frequency Online UPS(uninterrupted power supply) |
| Model | HP9116C PLUS |
| Capacity | 1-3Kva |
| Power Factor | 0.9 |
| Input Voltage | 115-300VAC |
| Waveform | Pure Sine Wave |
| Frequency Range | 40-70HZ |
| Sample Service | Available |
Advanced parallel control technology
Support maximum 3 units for parallel working
On line mode provides higher system availability
High efficiency mode for economical to use
Frequency conversion provides more stable output
Flexible extension capacity and redundance management
Select trip technology can avoid and isolation system fault
Battery voltage can choose depend on capacity
Get more back up time and lower system invests
Convenience to save cost of battery
Intelligent battery monitors ,Charge current adjustable
Standant charge current 4A
Support more discharge time and more capacity battery
Support three phase input or single phase input for three phase UPS
Super wide input voltage and frequency range suitable for bad power electirc environment
Digital control DSP technology and best power component make the system safe and reliable
Output power factor up to 0.9,The efficiency up to 94%
Can take more load, if you take same load that can get higher reliability.
Three phase input model support three phase PFC , input THDI<5%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
Mainly application
Data centre, bank station, network , communication equipment, office, automatic equipment,
monitor equipment, control system
Technical Parameters
| Model | HP9116C Plus 1-3KVA | ||||||
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL | ||
| Rated Power | 1KVA/0.9KW | 2KVA/1.8KW | 3KVA/2.7KW | ||||
| Rated Voltage | 220/230/240VAC | ||||||
| Rated Frequency | 40/70 Hz | ||||||
| Rated Frequency | |||||||
| Voltage Range | 115~300VAC (±3VAC) | ||||||
| THDi | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) | ||||||
| Power Factor | > 0.98 | ||||||
| Output | |||||||
| Voltage Regulation | 220±2%VAC | ||||||
| Frequency Regulation | 50/60 Hz±0.05Hz | ||||||
| Power Factor | 0.9 | ||||||
| Voltage Distortion | Linear load＜4％ Non-linear load＜7％ | ||||||
| Overload Capability | 110%~150% for 47-25 sec；150%~200% for 25 -300ms; >200% for 200m | ||||||
| Current Crest Ratio | 3∶1 | ||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||
| Efficiency(on line mode) | 89% | 90% | 90% | ||||
| Battery | |||||||
| DC Voltage | 24 VDC | 36 VDC | 48 VDC | 72 VDC | 72VDC | 96VDC | |
| Recharge Time | 7hrs to 90% of capacity | ||||||
| Recharge Current | 1A | 6A | 1A | 6A | 1A | 6A | |
| Display | |||||||
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. | ||||||
| Communication | |||||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | ||||||
| Environment | |||||||
| Operation Temperature | 0~40℃ | ||||||
| Humidity | 20~90% (Non-condensing) | ||||||
| Storage Temperature | -25℃~55℃ | ||||||
| Sea Level Elevation | ＜1500m | ||||||
| Noise Level (1m) | ＜45dB | <50dB | |||||
| Physics Characteristic | |||||||
| Dimensions: Wx D x H )mm | 145X345X229 | 192X393X328 | |||||

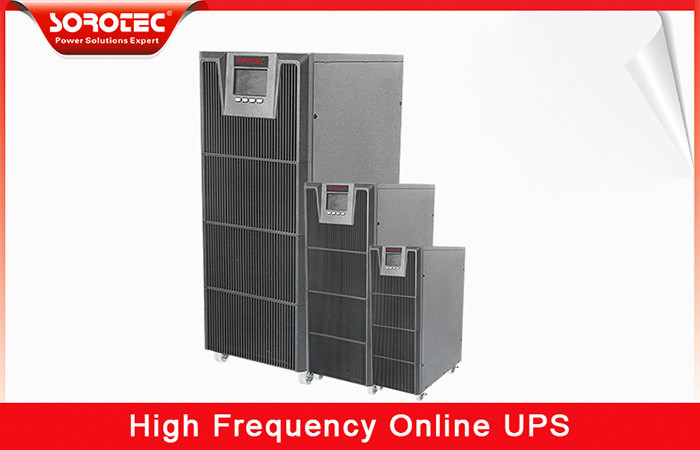

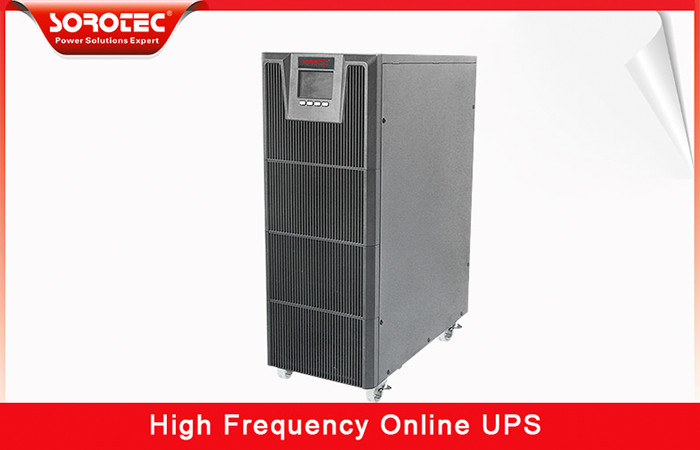

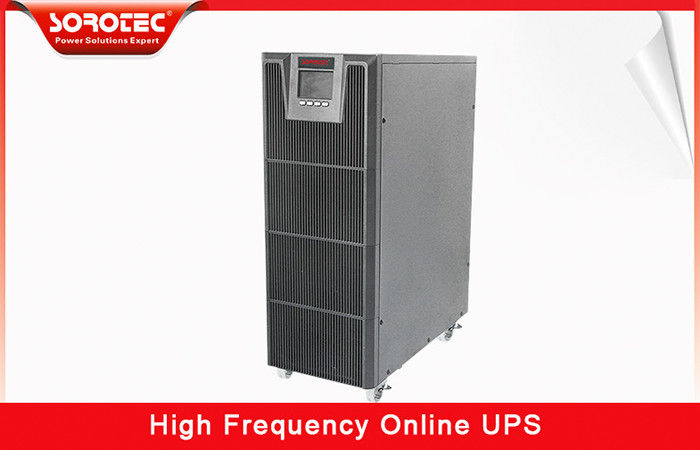

Product Show:
