SHW48500 Hybrid Solar System MCU Microprocessor Control For Power Plants
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 3000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | SHW48100 |
|
Detail Information |
|||
| MPPT Range @Operating Voltage: | 60 ~115VDC | Maximum Charge Current: | 50A |
|---|---|---|---|
| Overcharge Protection: | Yes | Operating Temperature: | -20°C To 55°C |
| AC Input Frequency Range: | 45-65HZ | Humidity: | 0 ~ 100% RH (No Condensing) |
| Highlight: | telecom dc power systems,telecom battery backup systems |
||
Product Description
Smart Monitor 48VDC Outdoor Solar Power System with MPPT Solar Charge Controller
Key Features:
1.Suitable for outdoor installation.
2.Smart Monitor Control System.
3.Adopt advanced MCU microprocessor control technology.
4. Various Human-computer Interface.
5.Protection Degree: IP55.
6.Capable of selecting different charging mode for various types of batteries.
Application:
Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC system. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.

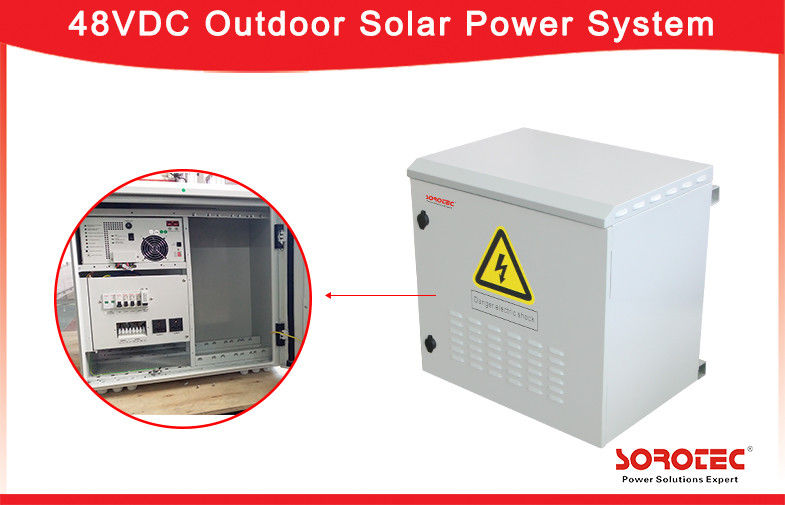

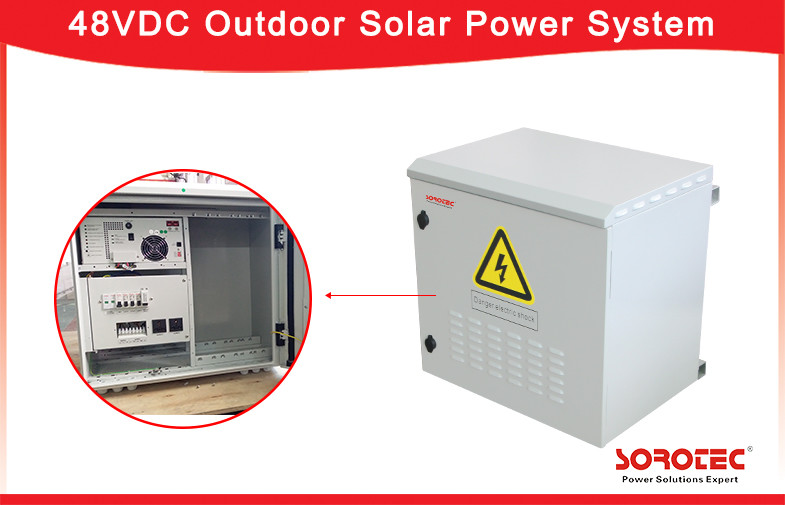

Product Show:
Product Descriptions:
| SHW48100 Solar System | Rectifier Module(1-2) MPPT Solar Charge Controller(1-2) |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 50A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range | 90-290V |
| AC input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |
