| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets. |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 1000PCS/Month for Energy Storage System |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | Energy Storage System |
|
Detail Information |
|||
| Model: | 3KW/4KW/5KW | MPPT Range @ Operating Voltage: | 120-450VDC |
|---|---|---|---|
| Nominal Output Voltage: | 220/230/240VAC | Power Factor: | >0.99 |
| Maximum Conversion Efficiency (DC/AC): | 96% | Acceptable Input Voltage Range: | 90-280VAC Or 170-280 VAC |
| Highlight: | advanced energy storage systems,battery energy storage system |
||
Product Description

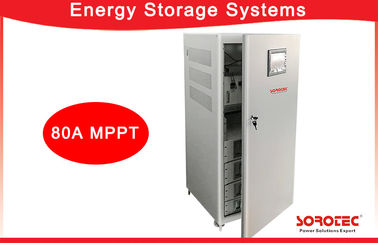

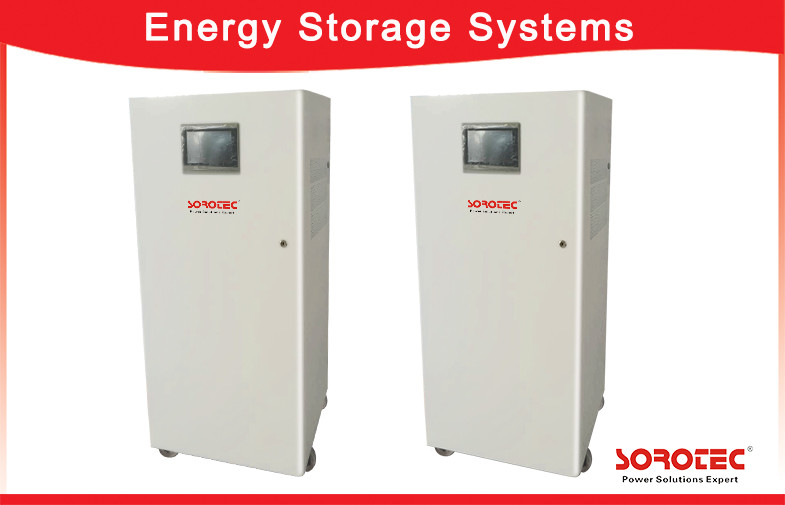

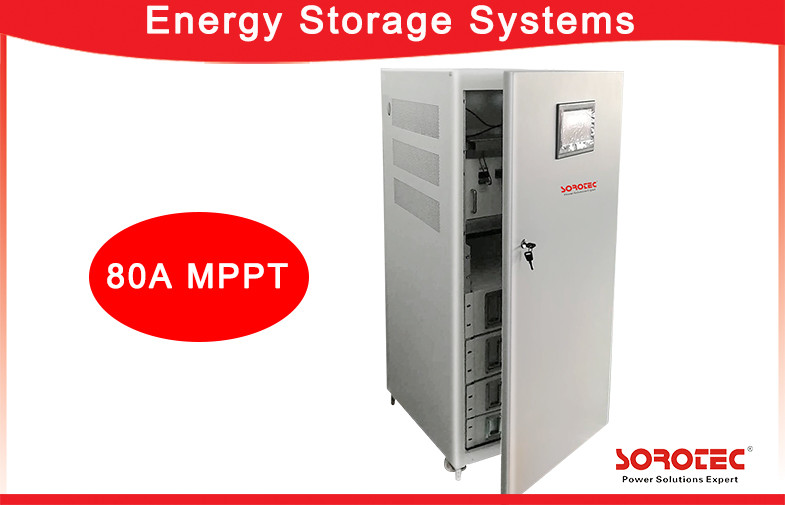

Solar Energy Storage Systems , Advanced Off Grid Energy Storage System
Solar Energy Storage System is an all in one energy storage machine, supplys the reliable long back up time power for the household appliances, office appliances and solar power systems etc, this battery energy storage system with touch screen display for some detailed information, and the maximum conversion efficiency can reach to 96%.
Key Features:
1.Structure with dust filter.
2.Energy generated record, load record, history information and fault record.
3.Language and time setting.
4.Touch screen display.
5.Output power factor PF=1.0.
Product Description of Energy Storage System
| MODEL | Energy Storage Systems | ||
| 3KW | 4KW | 5KW | |
| Max PV Array Power | 4500W | ||
| Rated Output Power | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| MPPT Range @ Operating Voltage | 120-450VDC | ||
| MPPT Tracker Number | 1 | ||
| GRID-TIE OPERATION | |||
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-264.5VAC | ||
| Nominal Output Current | 13A | 17.4A | 21.7A |
| Power Factor | >0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||
| OFF-GRID, HYBRID OPERATION | |||
| GRID INPUT | |||
| Acceptable Input Voltage Range | 90-280VAC or 170-280 VAC | ||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Wave Form | Pure sine wave | ||
| Efficiency (DC to AC) | 93% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 80A | ||
| GENERAL | |||
| INTERFACE | |||
| Parallel Function | Yes | ||
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90% RH (No Condensing) | ||
| Operating Temperature | 0 to 50 °C | ||
