Water Proof 220vac to 48vdc 50A Solar DC Power System , IP55 electronic power supply
Water Proof 220vac to 48vdc 50A Solar DC Power System , IP55 electronic power supply
Contact Now

Water Proof 220vac to 48vdc 50A Solar DC Power System , IP55 electronic power supply

Minimum Order Quantity : 2PCS 48V DC Power Supply Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets for 48V DC Solar Power Supply Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month for 48V DC Solar Power Supply
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SHW48500 Solar DC Power

Detail Information
Product Name: 48V DC Power Supply Grid Type: Off-Grid Solar Power System
AC Voltage: 220VAC Protection Degree: IP55
Nominal Voltage: 48VDC 50-500A Application: Outdoor Communications
Highlight:

telecom dc power systems

,

solar system for telecom tower

Product Description

Water Proof 220vac to 48vdc 50A Solar DC Power System , IP55 electronic power supply

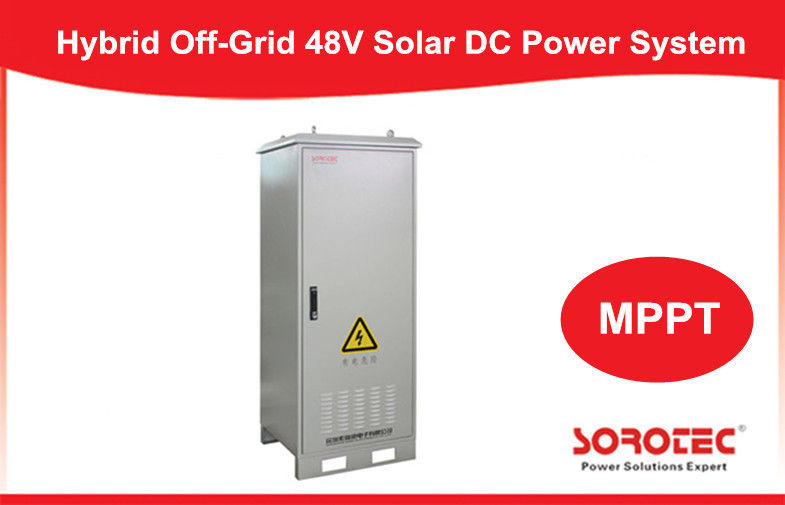

ModelSHW48500 Hybrid Off-Grid 48VDC Solar Power System
Input Voltage220VAC
InverterNot Include
Max PV Array Power3000W
Modular StructureMPPT Solar Controller, DC Power Modular
Maximum Efficiency98%



Applications
This ia an Off-Grid 48VDC Solar Power System Special for Power Plant or Substation Power for Controlling,Protection and Automatic Device,Emergency Lighting, Telecom Communications,Steam Turbine ,DC Oil Pump and so on Independent DC Powe Systems.
 Water Proof 220vac to 48vdc 50A Solar DC Power System , IP55 electronic power supply 0

Key Features:

  1. Adopt advanced MCU microprocessor control technology
  2. Advanced MPPT Technology.High converting efficiency higher than 97% for
    minimizing energy loss.
  3. Reversed current protection at night.over voltage and reverse polarity protection
  4. Capable of selection different charging mode fo various types of batteries
  5. Protection degree:IP55
  6. Industy-leading power density compact size and high reliability
  7. Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design
  8. Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material, surfce coating anti-UV power
  9. Suitable for outdoor installation
  10. With remote monitoring system operation




SHW48200  Solar DC Power System Specifications


SHW48500 Solar SystemRectifier Module (1-10pcs) MPPT Solar Charge Controller (1-10pcs)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage60 ~115VDC
Maximum PV Array Open Circuit Voltage145VDC
Maximum PV Array Power3000W
Maximum Input Current50A
OUTPUT
Nominal Battery Voltage42-58VDC
Maximum Charge Current50A
Maximum Efficiency98%
Charging MethodThree stages: bulk, absorption and floating
PROTECTION
Overload Protection> 110% : audible alarm
Overcharge ProtectionYes
Polarity Reversal Protection @Solar Cell & BatteryYes
INDICATORS
LCD PanelLCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED DisplayThree indicators for solar, charging, and load status
Rectifier Module
Rated input voltage220V
AC input Voltage range AC90-290V
input Frequency range45-65HZ
Power factor≥0.99
Efficiency>92%
Rated output voltage48V
Rated output current0-50A
Voltage range42-58V
ENVIRONMENT
Humidity0 ~ 100% RH (No condensing)
Operating Temperature-20°C to 55°C
Storage Temperature-40°C to 75°C
Altitude0 ~ 3000 m



    Tag:

    telecom dc power systems

    solar system for telecom tower

    telecom battery backup systems
