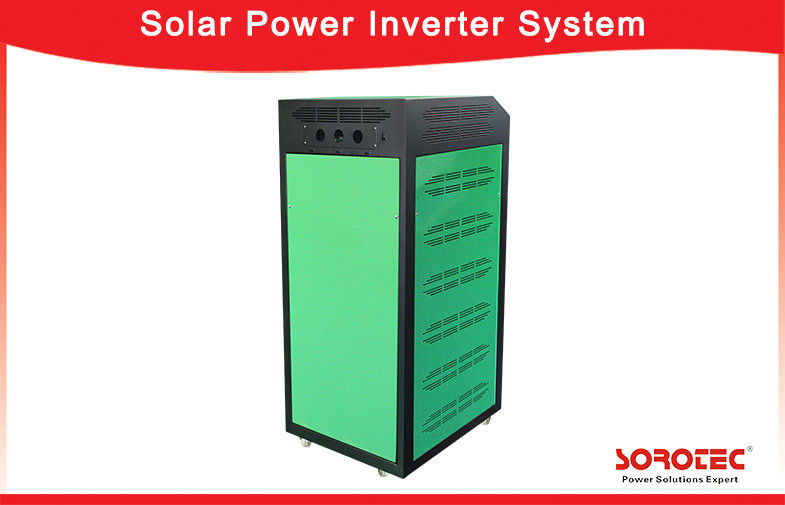

Solar Power System High frequency off-grid solar power inverter 1-2KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 3000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | SPS3118C |
|
Detail Information |
|||
| Voltage: | 230VAC | Frequency Range: | 50Hz/60Hz(Auto Sensing) |
|---|---|---|---|
| Waveform: | Pure Sine Wave | Selectable Voltage Range: | 170-280VAC(For Personal Computers) 90-280VAC(For Home Appliances) |
| Efficiency(Peak): | 90%/93% | Maximum PV Array Open Circuit Voltage: | 145VDC |
| Highlight: | solar residential systems,off grid solar power system |
||
Product Description
230V Output Wave Factor 0.8 Off Grid Solar Power Systems , Off Grid Inverter
2KVA Solar Power Inverter System Built-in Battery with MPPT Solar Charge Controller
Key Features:
1.Built In Battery.
2.Overload and short circuit protection.
3.Pure sine wave inverter.
4.Selectable input voltage range for home appliances and personal computers.
5.Parallel operation with up to 6 units only available for 4KVA/5KVA.
Product Descriptions:
| MODEL | C2 1K-2425 | C2 2K-2425 | C2 3K-2425 | C2 4K-4860 | C2 5K-4860 |
| Rated Power | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 4KVA/3200W | 5KVA/4000W |
| INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170-280VAC(For Personal Computers) 90-280VAC(For Home Appliances) |
||||
| Frequency Range | 50Hz/60Hz(Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation(Batt.Mode) | 230VAC ±5% | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 90% | 93% | |||
| Transfer Time | 10ms (For Personal Computers) 20ms (For Home Appliances) |
||||
| Waveform | Pure sine wave | ||||
| BATTERY | |||||
| Battery Voltage | 24VDC | 48VDC | |||
| Floating Charge Voltage | 27VDC | 54VDC | |||
| Overcharge Protection | 31VDC | 60VDC | |||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Array Power | 600W | 600W | 3000W | 4000W | |
| MPPT Range @ Operating Voltage | 30~66VDC | 30~66VDC | 66~115VDC | ||
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 145VDC | ||
| Maximum Solar Charge Current | 25A | 25A | 60A | 60A | |
| Maximum AC Charge Current | 20A | 30A | 30A | 60A | |
| Maximum Charge Current | 25A | 30A | 30A | 120A | 120A |
| AC charger and solar charger can't work at the same time | |||||
| Maximum Efficiency | 98% | ||||
| Standby Power Consumption | 2W | ||||
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°C-55°C | ||||
| Storage Temperature | -15°C-60°C | ||||
A
| COMPANY SHOW |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
