| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets. |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 1000PCS/Month for Energy Storage System |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | Energy Storage System |
|
Detail Information |
|||
| Model: | 3KW/4KW/5KW | Frequency Range: | 50Hz/60Hz (Auto Sensing) |
|---|---|---|---|
| Maximum AC Input Current: | 40A | Nominal Output Voltage: | 220/230/240VAC |
| Output Wave Form: | Pure Sine Wave | Maximum Solar Charge Current: | 80A |
| Nominal DC Voltage: | 48VDC | ||
| Highlight: | pv energy storage systems,advanced energy storage systems |
||
Product Description

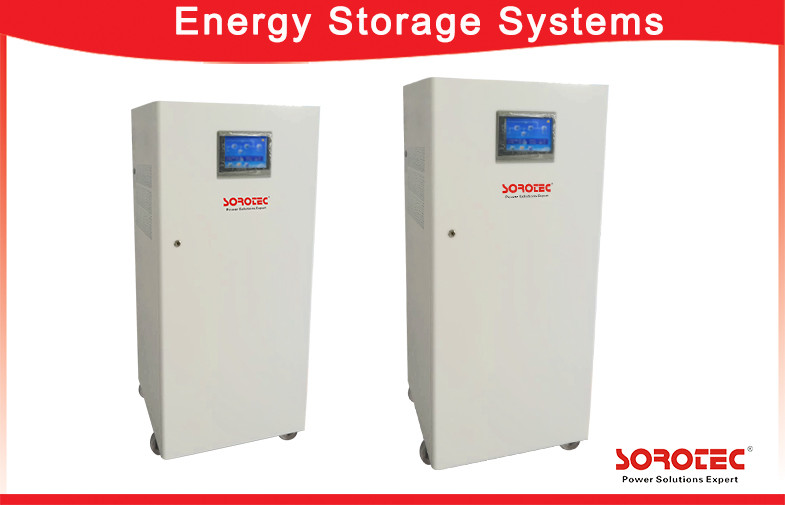

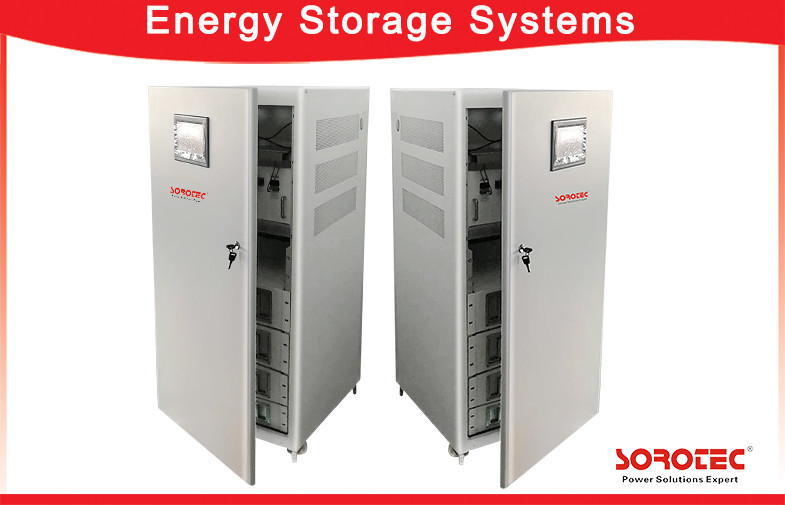

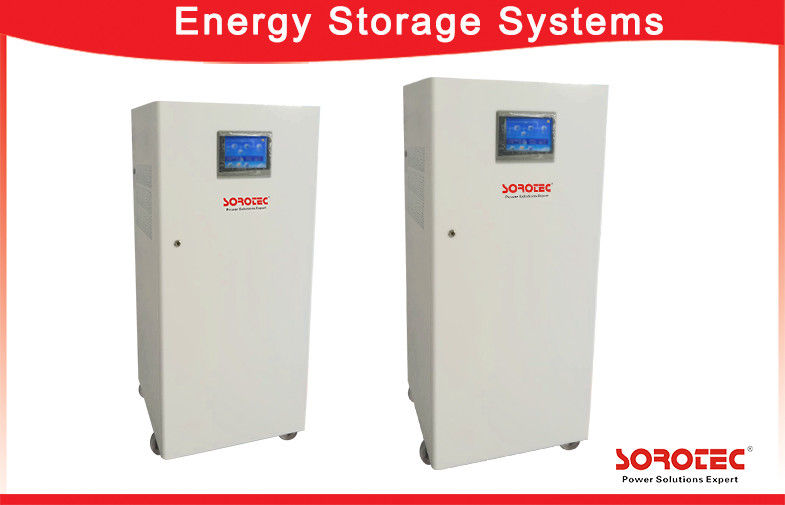

White Color 220V 3KW Home Energy Storage Systems , Off Grid Solar Power Systems
All in one energy storage system built-in 80A MPPT solar charge controller, it has parallel operation function for energy storage, and commonly used in solar power station, solar power system for household, suitable for bad environment. The wide PV input range can reach at the range of 120-450VDC.
Key Features:
♦ External wi-fi device optional.
♦ Parallel operation with up to 6 units only available for 3KW/4KW/5KW.
♦ Structure with dust filter.
♦ Output power factor PF=1.0.
♦ Energy generated record, load record, history information and fault record.
Product Description of Energy Storage System
| MODEL | Energy Storage Systems | ||
| 3KW | 4KW | 5KW | |
| Max PV Array Power | 4500W | ||
| Rated Output Power | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| MPPT Range @ Operating Voltage | 120-450VDC | ||
| MPPT Tracker Number | 1 | ||
| GRID-TIE OPERATION | |||
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-264.5VAC | ||
| Nominal Output Current | 13A | 17.4A | 21.7A |
| Power Factor | >0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||
| OFF-GRID, HYBRID OPERATION | |||
| GRID INPUT | |||
| Acceptable Input Voltage Range | 90-280VAC or 170-280 VAC | ||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Wave Form | Pure sine wave | ||
| Efficiency (DC to AC) | 93% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 80A | ||
| GENERAL | |||
| INTERFACE | |||
| Parallel Function | Yes | ||
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90% RH (No Condensing) | ||
| Operating Temperature | 0 to 50 °C | ||
| PACKAGING |
