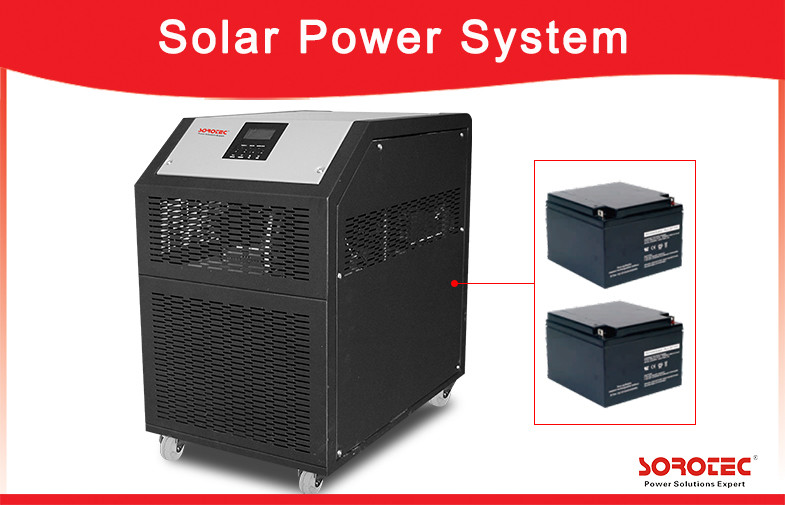

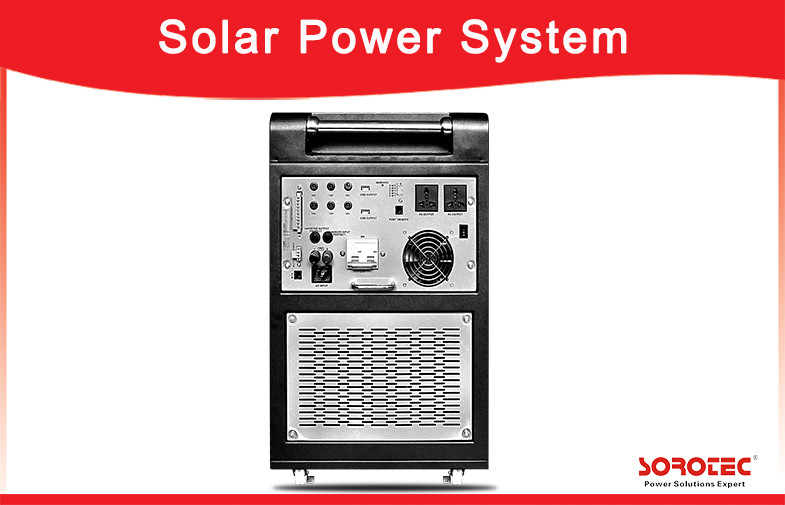

Solar Power System High frequency off-grid solar power inverter 1-2KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS per Month for Pure Sine Wave Solar Power Inverters |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SPS3115C 1-6kW |
|
Detail Information |
|||
| MPPT Range @ Operating Voltage: | 30-115VDC/60-115VDC | Maximum PV Array Open Circuit Voltage: | 145VDC |
|---|---|---|---|
| Nominal Input Voltage: | 24V/48V | Nominal Output Voltage: | 120VAC(option) 230VAC |
| Line Transfer Time: | 10ms Typical | Input Wave Form: | Sine Wave (utility Or Generator) |
| High Light: | solar electric system,solar residential systems |
||
Product Description
1-6kW All-in One Solar Power System 24V/48V Solar Inverter for Household Appliances
Product Snapshot:
Capacity: 1-6kW
Nomianl Frequency: 50Hz/60Hz
Nominal Voltage: 230VAC
Solar Charge Controller: 60A MPPT
Output Wave Form: Pure Sine Wave
Protection Degree: IP55
Key Features:
1. Short circuit protection.
2. LCD display for some detailed basic information.
3. Solar Power System with battery.
4. Configurable input voltage range for household appliances and personal computer via LCD setting.
Product Descriptions Of SPS3115C 1-6kW Solar Power Inverter
| MODEL | SPS3115C 1-6KW | |||||||
| 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||
| Input Wave form | Sine wave (utility or generator) | |||||||
| Nominal Voltage | 120VAC(option) 230VAC | |||||||
| Low voltage trip | 90v ±4% & 184v/154v ±4% | |||||||
| Low voltage reengage | 100v ±4% & 194v/164v±4% | |||||||
| High voltage trip | 140v ±4% & 253v ±4% | |||||||
| High voltage reengage | 135v ±4% & 243v ±4% | |||||||
| Nominal input frequency | 50Hz/ 60Hz (auto detection) | |||||||
| Frequency range | 47Hz ~ 65Hz | |||||||
| Output Wave form | (Bypass mode)same as input | |||||||
| Over-Load Protection | Circuit breaker | |||||||
| Short circuit Protection | Circuit breaker | |||||||
| Efficiency on line transfer mode | >95% | |||||||
| Line transfer time | 10ms Typical | |||||||
| Bypass without battery connected | Yes | |||||||
| Inverter output | ||||||||
| Output wave form | Pure sine wave | |||||||
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | |
| Output continuos power VA | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 | |
| Power factor | 0.9-1.0 | |||||||
| Nominal Output Voltage rms | 120VAC(option) 230VAC | |||||||
| Output Voltage regulation | +/- 10%rms | |||||||
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz | |||||||
| Short circuit protection | Yes,fault after 1 secs | |||||||
| Inverter input | ||||||||
| Nominal input voltage | 24V/48V | |||||||
| Minimum start voltage | 20V/40V | |||||||
| Low battery alarm | 21V/42V | |||||||
| Low battery trip | 20V/40V | |||||||
| High voltage alarm | 32V/64V | |||||||
| Charger | ||||||||
| Output voltage | Dependent on battery type | |||||||
| Charge current | 10-85A MAX | |||||||
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v) | |||||||
| Over charge protection | 15.7v for 12v(*2 for 24v;*4 for 48v) | |||||||
| Solar Charger | ||||||||
| MPPT Range @ Operating Voltage | 30-115VDC/60-115VDC | |||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||||
| Maximum Charging Current | 60A | |||||||
| Macimum Effciency | >96% | |||||||
| Standby Power Comsumption | 2W | |||||||
