SHW48500 Hybrid Solar System MCU Microprocessor Control For Power Plants
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS | Price : | 1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SHW48500 |
|
Detail Information |
|||
| Product Name: | 48V DC Solar Power System | Type: | Hybrid And Off Grid |
|---|---|---|---|
| Phase: | Single Phase | Wave Form: | 48VDC DC Power Output |
| Accessories: | Solar Cabinet,Solar Panel,Solar Panel Bracket.etc | Modular Structure: | MPPT Solar Controller And Rectifier Module |
| Protection: | Reversed Current Protection At Night,overvoltage | Input Voltage: | 220VAC |
| Output Voltage: | 48VDC | With Fan: | Yes |
| Charging Mode: | Selectable | Maximum Input Current: | 62A |
| Application: | Communication Base Station | ||
| Highlight: | telecom dc power systems,solar system for telecom tower |
||
Product Description
SHW48500 3000W 48V DC Power Supply , Outdoor Solar Power System for Telecom Base Station
SHW48500 Series is SOROTEC Newest Hybrid and Off-Grid Type 48VDC Solar Power System,which built-in hot-swappable MPPT solar charge controller and rectifier module ,adopts advanced Maximum Power Point Tracking technology and MCU microprocessor control technology to provide highefficiency and reliable long back up time 48VDC Power supply for Outdoor Telecom Base Station Equipments.
Typical Application:
Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.
Key Features:
1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped
ith wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,
surfce coating anti-UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation
Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof IP55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters
Technical Specifications of Solar DC Power System:
| SHW48500 Solar System | Rectifier Module(1-10) MPPT Solar Charge Controller(1-10) |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~150VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 62A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A(max:61A) |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range AC | 90-290V |
| input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| WIND CONTROLLER: | |
| Input Power | 1KW/2KW |
| Input Voltage | 150-300VAC |
| Output Voltage | 48VDC |
| Ouput Current | 30A/50A |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |

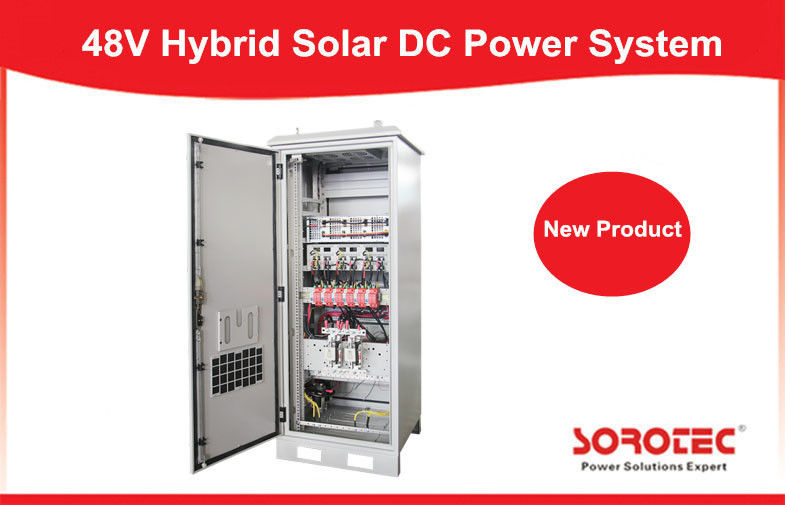

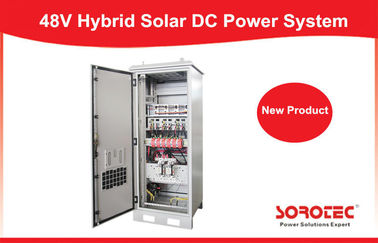

SHW48500 Solar DC Power System Show:
