Home ProductsTelecom Solar Power SystemsOutdoor Stable 48V DC Power Supply , solar dc Power system for Telecom Tower, Remote Monitoring
Outdoor Stable 48V DC Power Supply , solar dc Power system for Telecom Tower, Remote Monitoring
Outdoor Stable 48V DC Power Supply , solar dc Power system for Telecom Tower, Remote Monitoring
Contact Now

Outdoor Stable 48V DC Power Supply , solar dc Power system for Telecom Tower, Remote Monitoring

Minimum Order Quantity : 5PCS Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SHW48500

Detail Information
Features: Waterproof.Dust-proof Product Name: 48VDC Solar Power System
Model: SHW48500 Transfer Form: AC TO DC
Solar Accessories: Solar Cabinet,Solar Panel .etc Back Up Time: Long Time Back UP
Input Voltage: 220VAC Maximum Input Current: 50A
Application: Telecom Tower Service: OEM/ODM Produce
Sample: Available Maximum PV Power: 3000W
Solar Charge Controller: 50Amp MPPT Solar Charge Controller
Highlight:

solar system for telecom tower

,

telecom battery backup systems

Product Description

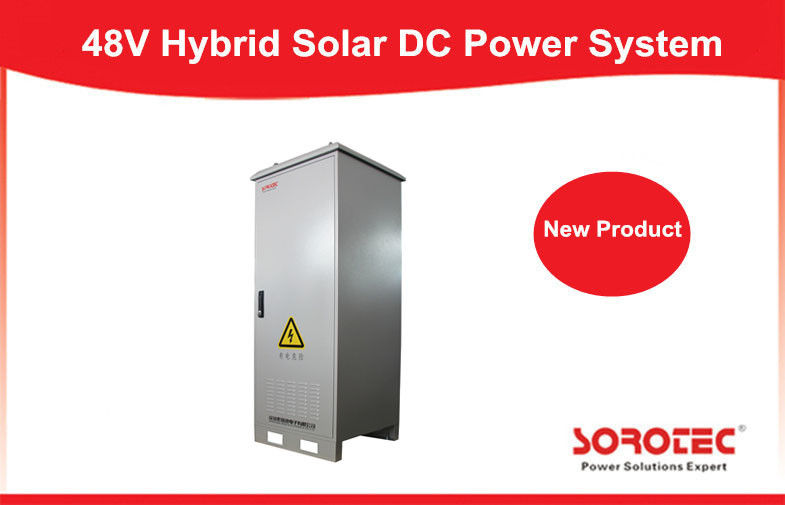

Outdoor Stable 48V DC Power Supply , solar dc Power system for Telecom Tower




SOROTEC SHW48500 series solar dc power syatem which can provide reliable long time backup DC power supply for outdoor telecom communication equipments .such as power plant or substation power for controlling,protection and automatic device,energency lighting,communications.steam turbine Dc oilpump and so on independent DC system.





Quick Detailes:


Product Name 48VDC Solar Power System
Model SHW48500
Nominal Voltage 48VDC
Frequency Range 45-65HZ
Voltage Range 42-58V
Solar Charge Controller 50A (1-10PCS Selectable)
Rectifier Module 48VDC 50A (1-10PCS Selectable)
Maximum PV Array Power 3000W
Maximum Efficiency 98%
Application

Telecom,Traffic Lights,Mountains,Powere Plant,Substation Power.etc







































(OEM/ODM produce available,welcom contact us by :sales@soroups.com or whatsapp:+8613682556888)



Product  Features:

  • Adopt advanced MCU microprocessor control technology
  • Advanced MPPT Technology.High converting efficiency higher than 97% for
    minimizing energy loss.
  • Reversed current protection at night.over voltage and reverse polarity protection
  • Capable of selection different charging mode fo various types of batteries
  • Protection degree:IP55
  • Industy-leading power density compact size and high reliability
  • Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design
  • Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,surfce coating anti-UV power
  • Suitable for outdoor installation
  • With remote monitoring system operationOutdoor Stable 48V DC Power Supply , solar dc Power system for Telecom Tower, Remote Monitoring 0



Fine Dust-proof, Water-proof Structure:
According to the overall standard of design dust-proof and water-proof IP55,the system with sun protection, heat insulation, roof ventilation.with waterproof and the filtration dust inlet, the cabinet front door shutters



Technical Specifications of SHW48500 Solar DC Power System:

SHW48500 Solar System Rectifier Module (1-10pcs) MPPT Solar Charge Controller (1-10pcs)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3000W
Maximum Input Current 50A
OUTPUT
Nominal Battery Voltage 42-58VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m
